MF-33L/ML

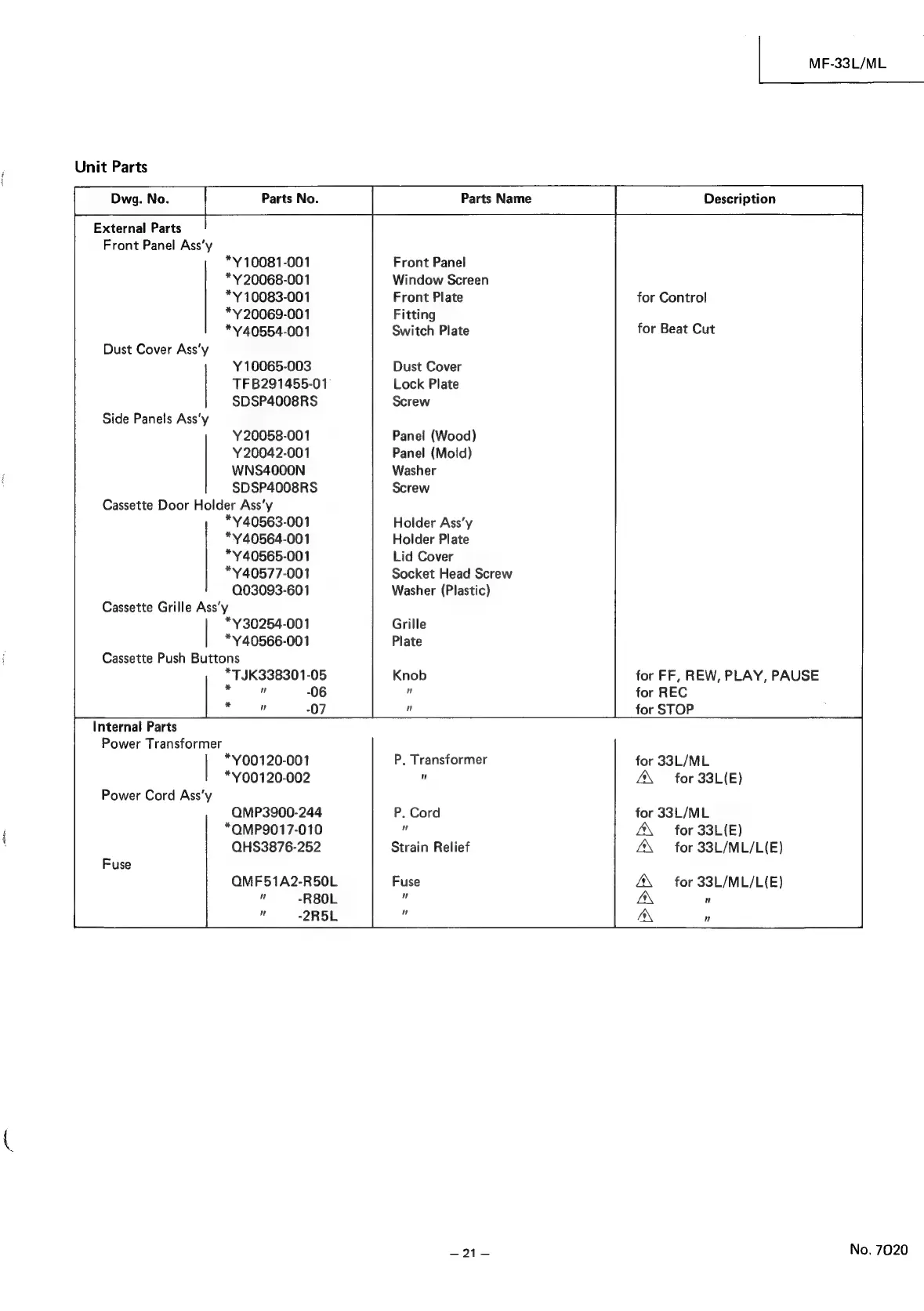

Unit Parts
Parts Name Description
External Parts
Front Panel Ass‘y
*Y10081-001 Front Panel
*¥20068-001 Window Screen
*¥10083-001 Front Plate for Control
*Y20069-001 Fitting
*Y40554-001 Switch Plate for Beat Cut
Dust Cover Ass’y
Y 10065-003 Dust Cover
TFB291455-01 Lock Plate
SDSP4008RS Screw
Side Panels Ass‘y
Y20058-001 Panel (Wood)
Y20042-001 Panel (Mold)
WNS4O00N Washer
SDSP4008RS Screw
Cassette Door Holder Ass‘y
*Y40563-001 Holder Ass’y
*Y40564-001 Holder Plate
*Y40565-001 Lid Cover
*V40577-001 Socket Head Screw
Q03093-601 Washer (Plastic)
Cassette Grille Ass’y
*Y30254-001 Grille
*Y40566-001 Plate
Cassette Push Buttons
*TJK338301-05 Knob for FF, REW, PLAY, PAUSE
i " -06 ” for REC
* " -07 ” for STOP
Internal Parts
Power Transformer
*Y00120-001 P. Transformer for 33L/ML
*¥00120-002 " Z\ for 33L(E)
Power Cord Ass’y
QMP3900-244 P. Cord for 33L/ML
*QMP9017-010 " Z\ for 33L(E)
QHS3876-252 Strain Relief Z\. for 33L/ML/L(E)
Fuse
QMF51A2-R50L Fuse Z\ for 33L/ML/L(E)
" -R80L uf AN ”
" -2R5L is A\ ”
—21— No. 7020
