MX-K3
1-10
Fig.13
Prior to performing the following procedures,
remove the top cover.
Also remove the CD changer unit.
1.
2.
3.
4.
5.
6.
Disconnect the wires from CN602 and CN603 on
the main board, which is located on the backside of
the CD changer unit.
Disconnect the card wire from connector CN604 of
the main board at the back of the CD changer unit.
The three screws "J" and the screw with the
washer "K" that retain the main board should be
removed.
Remove the main board by pulling it toward the
side where the CN601 is located.
Using solder, short the CD pickup to connect to
short round.
Disconnect the card wire from the connector
CN601 on the main board and then remove the
main board.

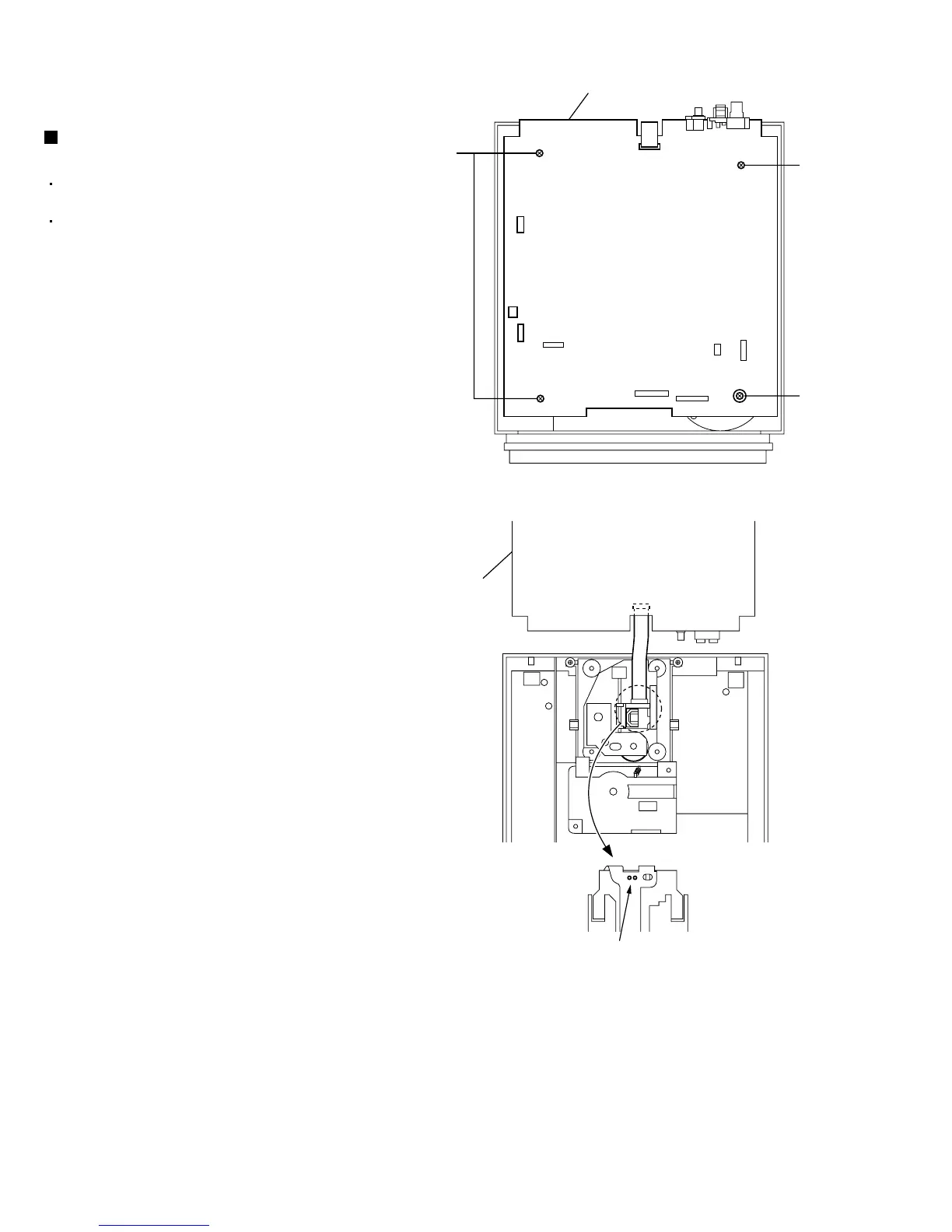

Removing the main board
(See Fig.13 and 14)
Fig.14
<Disassembly of units and assembly
inside this set>
[Caution]
After re-connecting the wires, be sure to
remove the shorting solder from the GND
connection.
Main board
CN601
CN603CN602
CN604
J
J
K
Main board
Short round
CN601
