MX-K3
1-17
Fig.33
Prior to performing the following procedures,
remove the top cover.
Also remove the CD changer unit.
Also remove the front panel assembly.
1.
2.
3.
4.
5.
6.
Remove the five screws "P" that retain the cassette
deck mechanism.
Remove the cassette deck mechanism and place it
so that the front side faces up.
Remove the solder from the bottom side of the
head terminal and disconnect the wire.
Remove the screw "W" that retains the head.
Loosen the screw "X" that retains the head.
Hold the head and slide it in the direction of the
arrow to remove it.

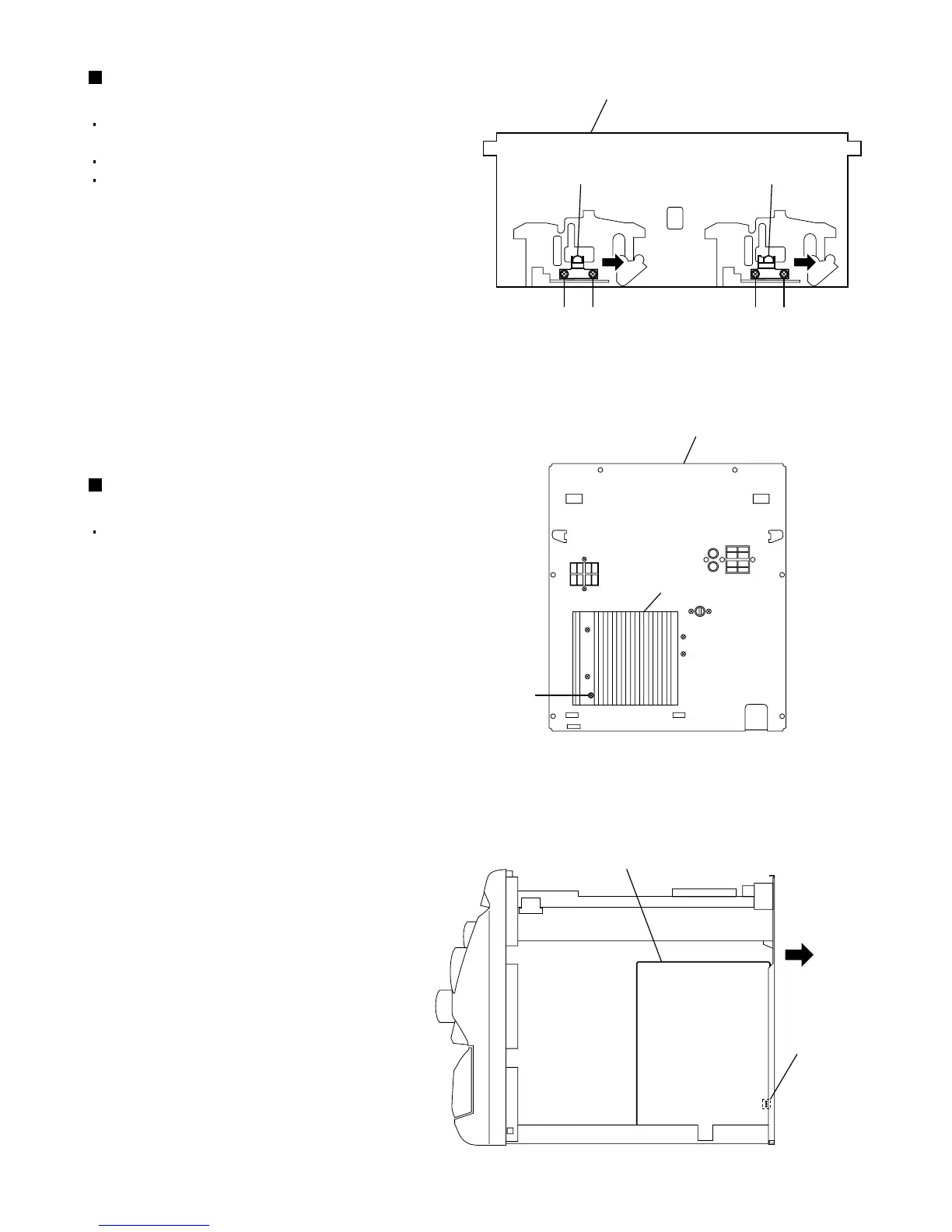

Removing the cassette deck heads
(See Fig.22 and 33)
Fig.35
Prior to performing the following procedures,
remove the top cover.
1.
2.
3.
4.
Remove the two screws "A" connecting the heat
sink cover to the rear panel.
Pull the heat sink cover foward you.
Remove the screw "Y" that retains the bracket
holding the 3-pin terminal regulator.
Remove the solder fixing the 3-pin regulator.
Removing the 3-pin regulator
(See Fig.2, 34 and 35)
Amp. board
Rear panel
Rear
Solder on the
3-pin regulator
Fig.34
Cassette deck mechanism
(Front side)
XW
PB Head
REC/PB Head
XW
Heat sink
Y
