JVC SP-UXJ50 User Manual

7
English
INPUT INPUT INPUT INPUT
RIGHT
LEFT
MAIN SPEAKERS
CAUTION: SPEAKER IMPEDANCE 6 -16
SUBWOOFERS
RIGHT
LEFT

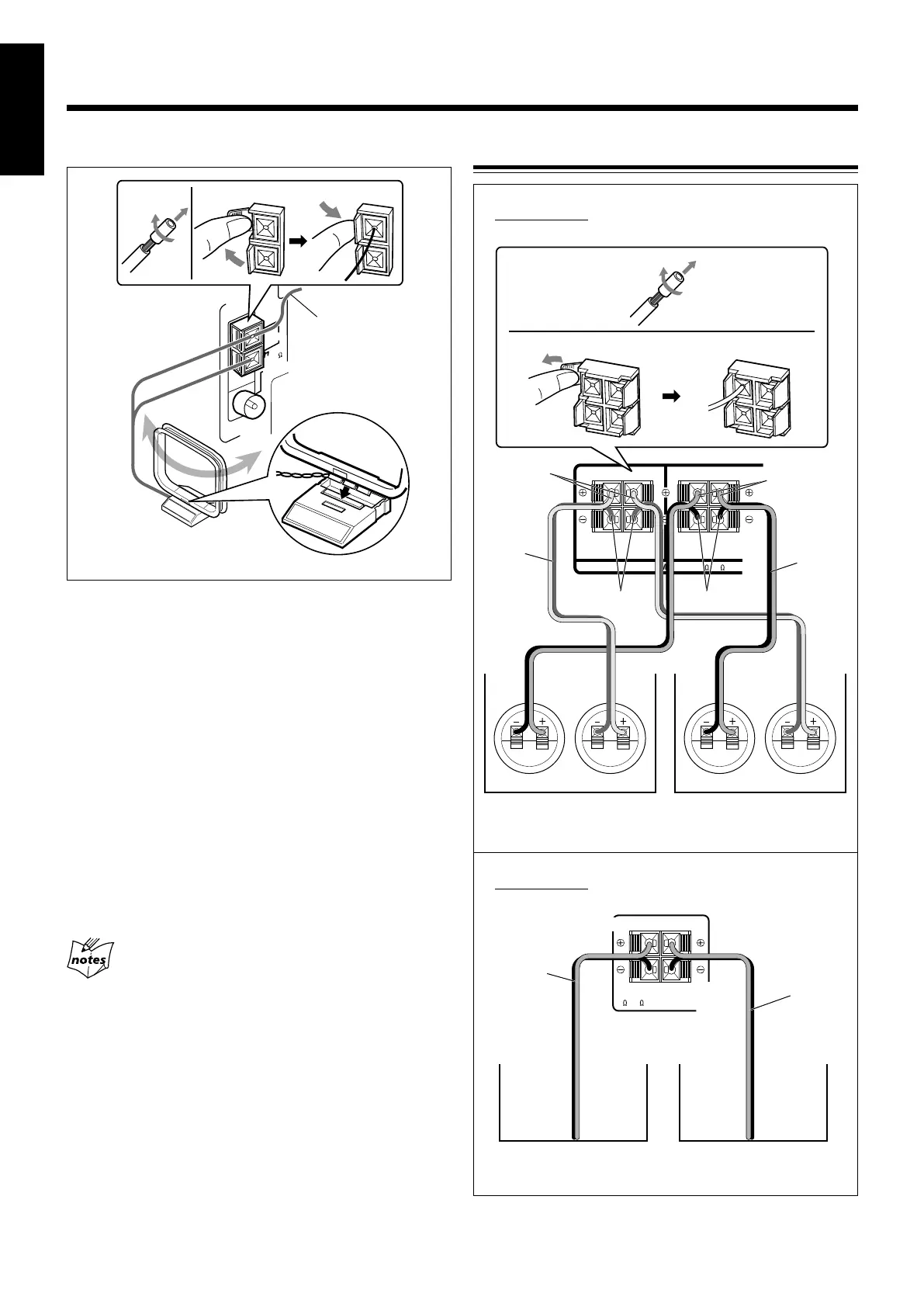

1 If the cords are covered with insulation,
remove a short section of insulation at the
end of each cord by twisting and pulling it
off.
2 Connect the AM loop antenna to the AM
LOOP terminals as illustrated.
3 Turn the AM loop antenna until you have
the best reception.
To connect an outdoor AM antenna
When reception is poor, connect a single vinyl-covered wire
to the AM EXT terminal and extend it horizontally. The AM
loop antenna must remain connected.
For better reception of both FM and AM
• Make sure the antenna conductors do not touch any other
terminals and connecting cords.
• Keep the antennas away from metallic parts of the unit,
connecting cords, and the AC power cord.
AM antenna
Vinyl-covered wire
(not supplied)
AM loop antenna
(supplied)
Connecting Speakers
Speaker cord
Speaker cord
Right speaker Left speaker
FM 75
COAXIAL
AM EXT
AM LOOP
ANTENNA
12
3
RIGHT
SPEAKER
IMPEDANCE
6 - 16
LEFT
SPEAKERS
FOR UX-J60:
Right speaker Left speaker
Speaker
cord
Speaker
cord
1
23
Black
Red
Blue
FOR UX-J50:
Gray
EN01-13_UX-J60&50[UW]f.pm6 03.3.13, 7:07 PM7
