Mounting and installation User Manual B-Net 93 60
40 © Kaba Benzing GmbH 01/2006
5.7.2 Uninterruptible power supply BEX500
The terminal may optionally be equipped with the uninterruptible power supply
(UPS) BEX500. The UPS is integrated right next to the serial reader in the housing
front and is connected to the BEX101 mother board.

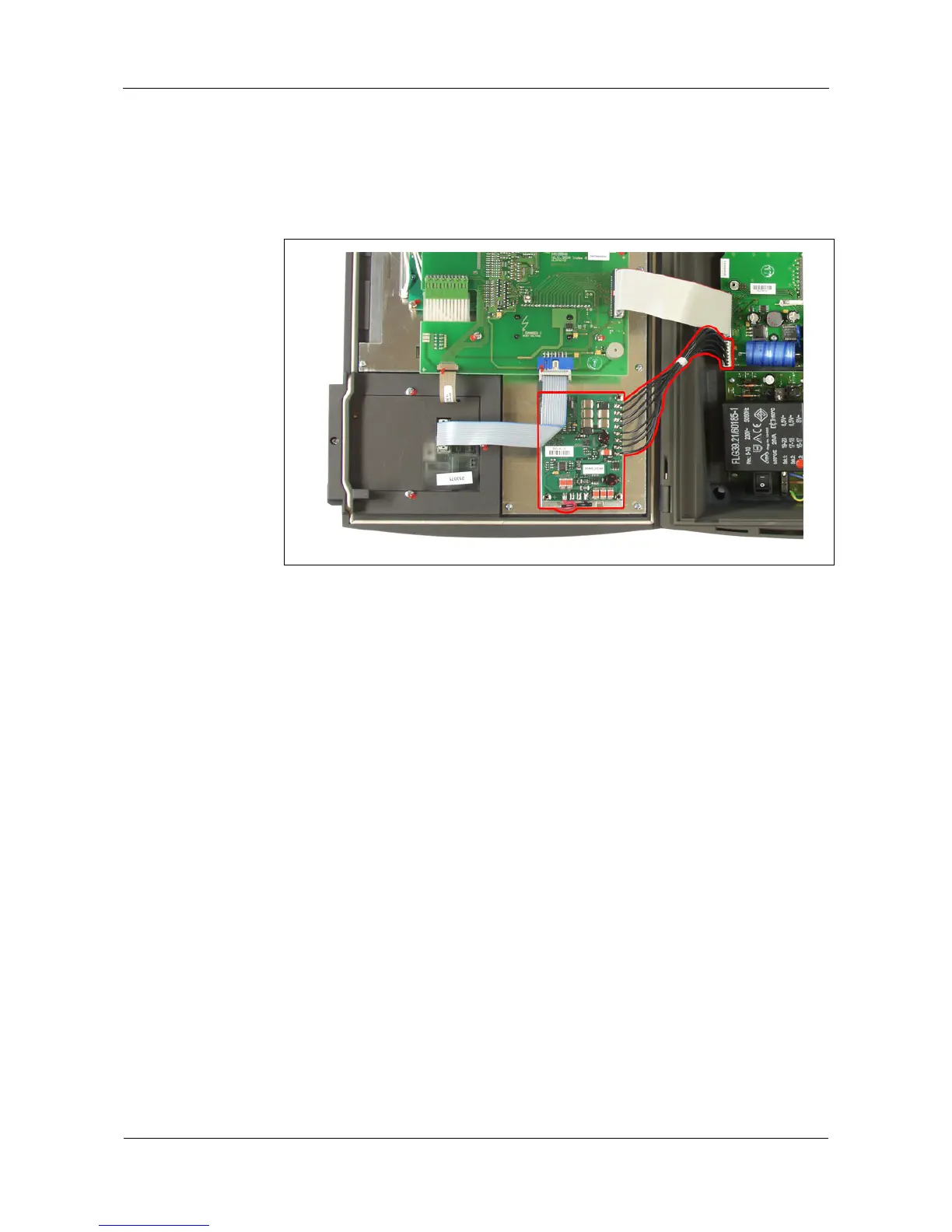

Fig. 26: BEX500 UPS
5.7.2.1 Technical data BEX500 UPS
Input voltage: 24 V according to rectifier level
Output voltage: 5 V
Performance: approx. 14 Wh
Accumulator type: 2 x Panasonic CGA103450, Lithium-ion or equivalent
Accumulator power: Voltage 8.8 to 6.0 V average 7.6 V
Accumulator
capacity:
1800 mAh typical
