kala Mistral 1650 User Manual

7

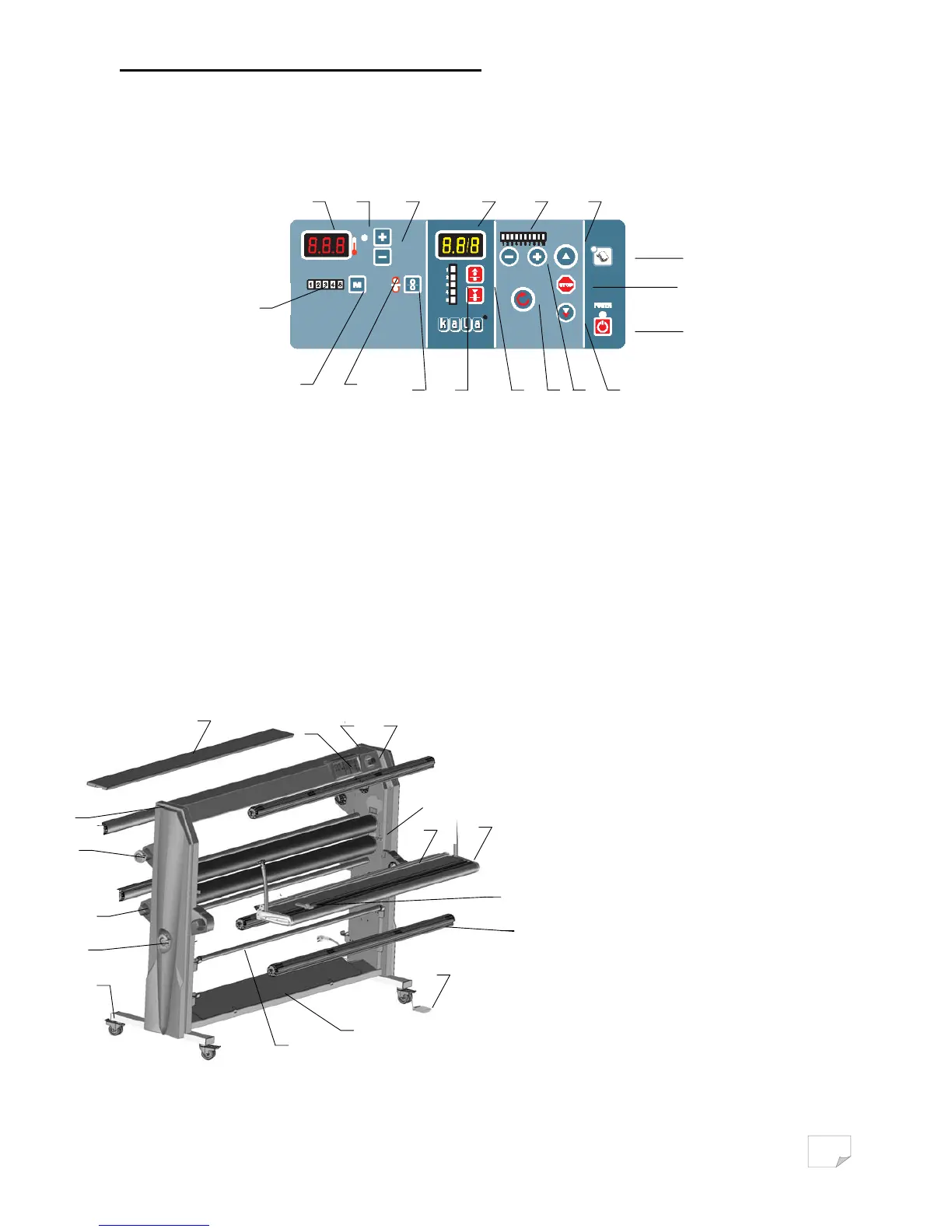

1. Power key
2. Foot switch mode selection
3. Stop
4. Forward
5. Reverse
6. Speed display
7. Speed adjustment
8. Reset of the machine safety mechanism
9. Display of the roller elevation in mm
10. Adjustment of the roller elevation and pressure
11. Display of the pressure
12. Upper roller heat adjustment
13. Heat selection for the upper roller
14. Heat ready light
15. Light indicator for upper roller heating selection
16. Temperature display
17. Memorisation of the working modes
18. Registered working mode selection
17
10
7
8
16 14 12
13
11
6
9
5
3
4
2
1
18
15
3. EXPLODED VIEWS AND CONTROL BOARD
a
d
f
e
c
h
k
g
j
i
m
c
l
b
n
o
a – Main Switch
b – Control board
c – Emergency switches
d – Back tray
e – Upper film reel tension brake handle
f – Rewinding shaft position
g – Lower film reel tension brake handle
h – Castors with brakes
i – Feeding axle for prints
j
– Feeding plate
k – Foot switch
l – Self blocking roll shaft
m – Squaring guide
n – Feeding tray
o – Print guide
p – Laser eye
p
