BR/BD 55/60 WP Machine functions
Service Information International 02.2003

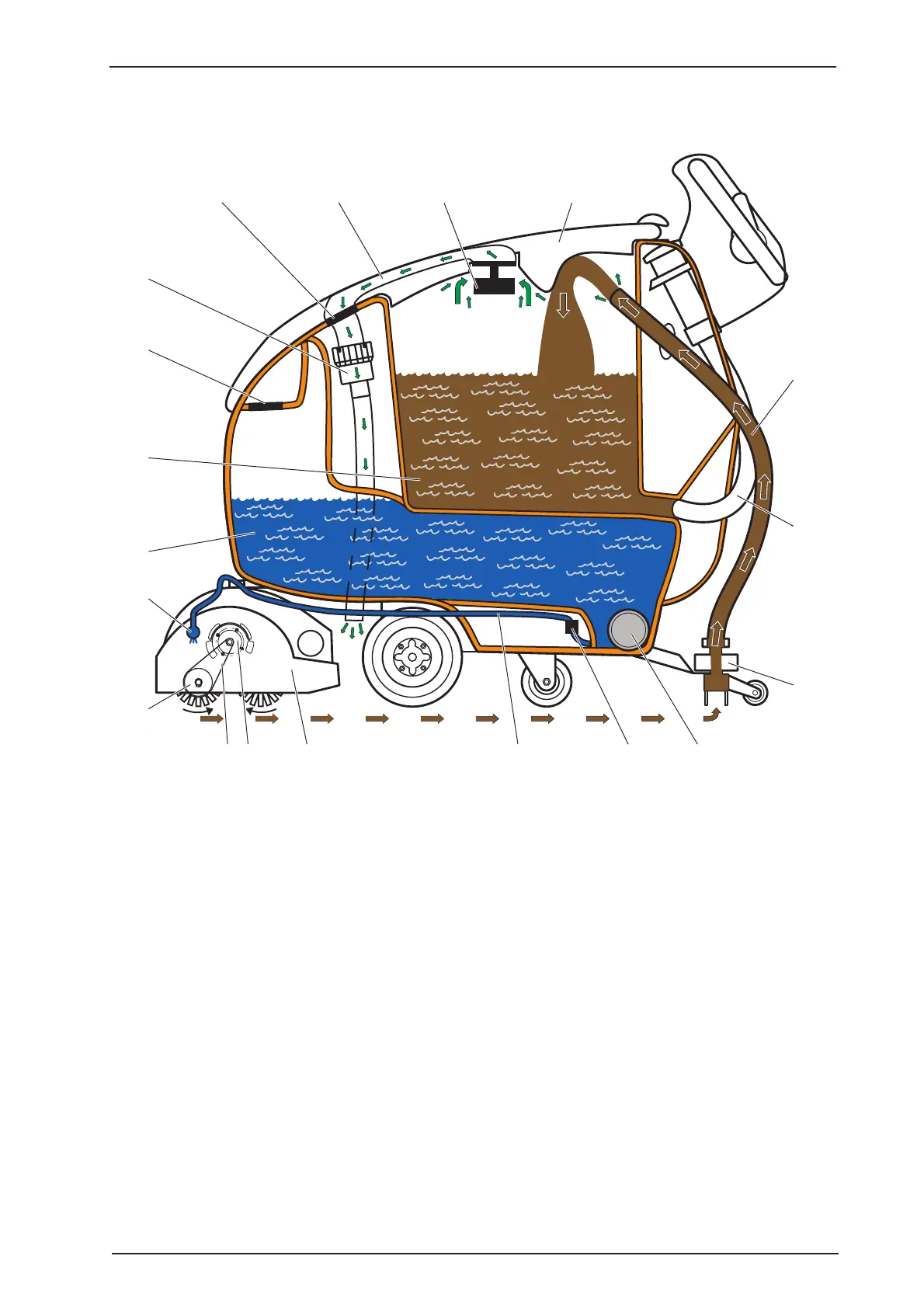

Function diagram
1 Fluff strainer
2 Suction channel in the tank lid
3 Float, mechanical
4 Tank lid
5 Suction hose
6 Drain hose, waste water
7 Suction beam
8 Screw cap, fresh water drain
9 Metering valve
10 Inlet supply hose, fresh water
11 Brush head (BR version)
12 Brush motor
13 Drive belt
14 Brush rollers (2x)
15 Water distribution tube
16 Fresh water tank
17 Waste water tank
18 Filler neck fresh water and cleaning agent,
max. filling level fresh water tank
19 Suction motor
1
23 4
5
6
7
8910111213
14
15
16
17
18
19
