BR/BD 55/60 WP Machine functions
Service Information International 02.2003

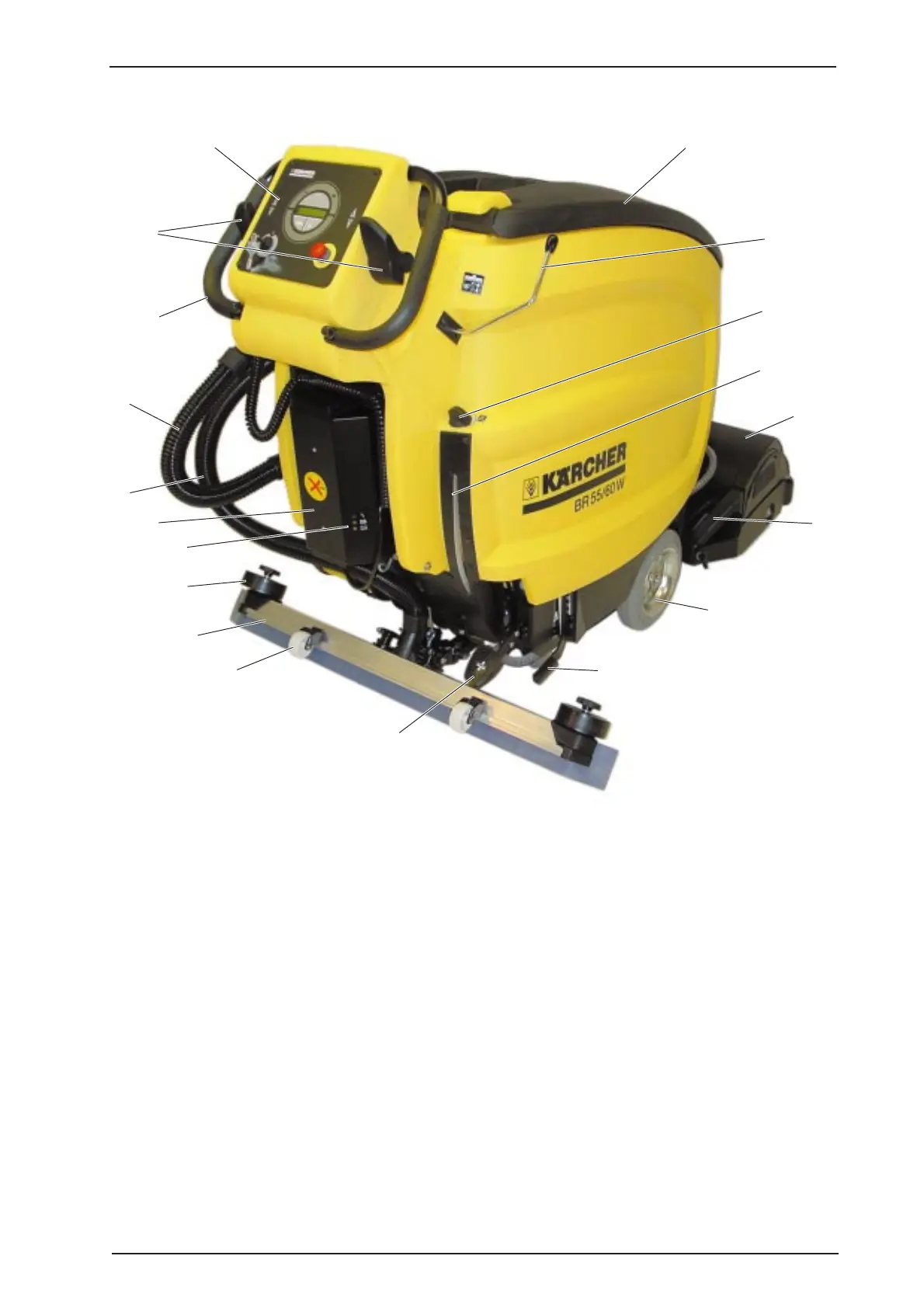

View from behind
1 Tank lid
2 Lever, to raise and lower the suction beam
3 Water flow control
4 Water level display, fresh water
5 Brush head (BR version)
6 Coarse dirt container
7 Drive wheel
8 Hand lever, increase/decrease brush head
contact pressure
9 Foot lever, raise/lower brush head
10 Support roller
11 Suction beam
12 Deflection roller
13 Charge state display
red LED: Fault in charging procedure.
Batteries or battery charger
defect.
green LED: Batteries are charged.
yellow LED: Batteries are being charged.
no display: No mains voltage available.
Battery not connected.
14 Battery charger U1
(only in the PACKAGE version)
15 Suction hose
16 Drain hose
17 Guide handle
18 Drive lever forwards/reverse
19 Control panel A2
1
2
3
4
5
6
7
8
9
10
12
11
13
14
15
16
17
19
18
