BR/BD 55/60 WP Machine functions
Service Information International 02.2003

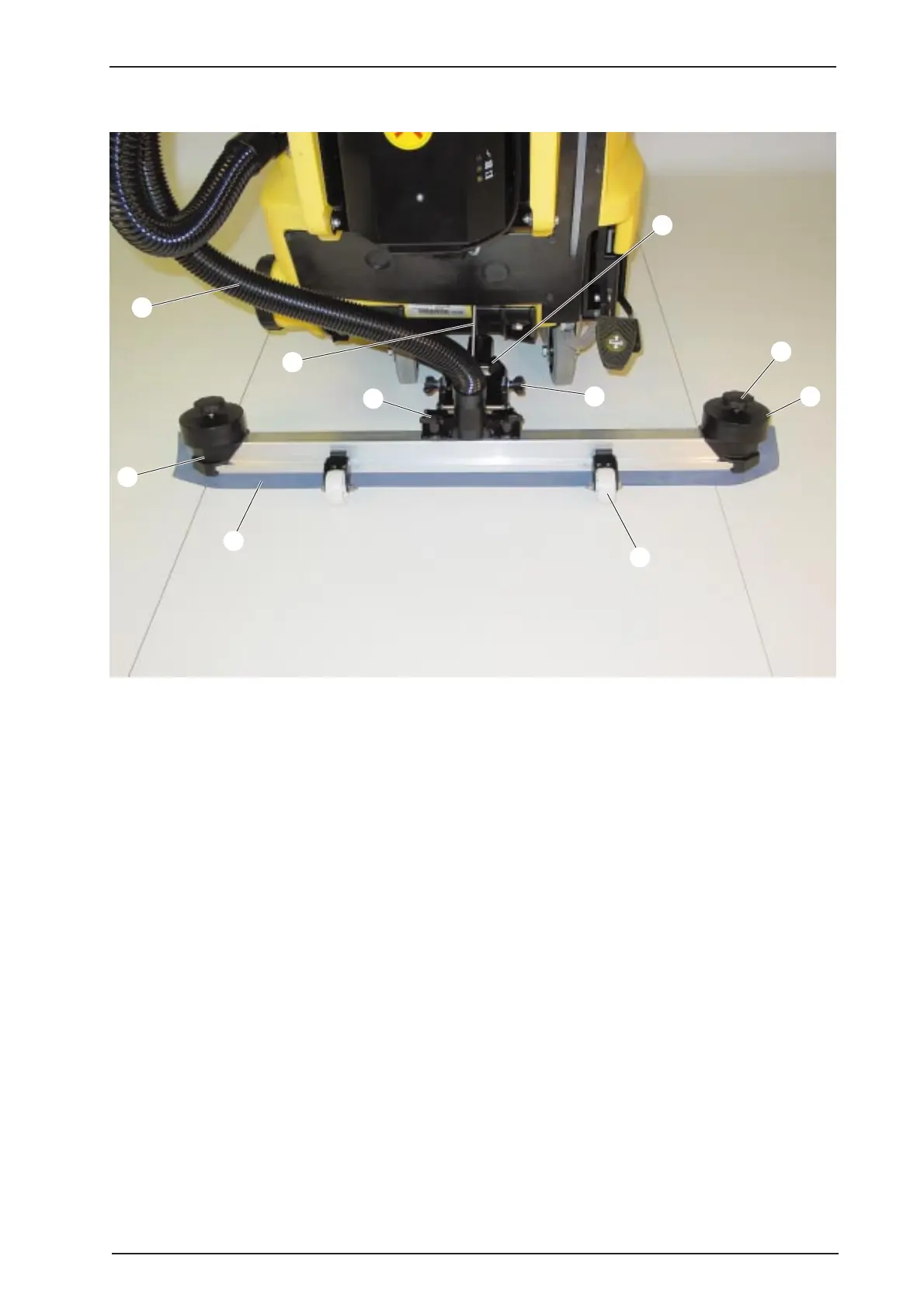

Suction beam
1 Mounting plate, suction beam
2 Wing nut, to adjust the inclination of the
suction beam
3 Screw, for fastening the deflection roller and
rubber strips
4 Deflection roller
5 Support roller
6 Star knob, for fastening the suction beam
7 Rubber strip
8 Retainer for the rubber strips
9 Bowden cable, raise/lower suction beam
10 Suction hose
1
4
5
6
7
10
9
8
3
2
