Kärcher HD 5 12 User Manual

New Unit Information 02.2004

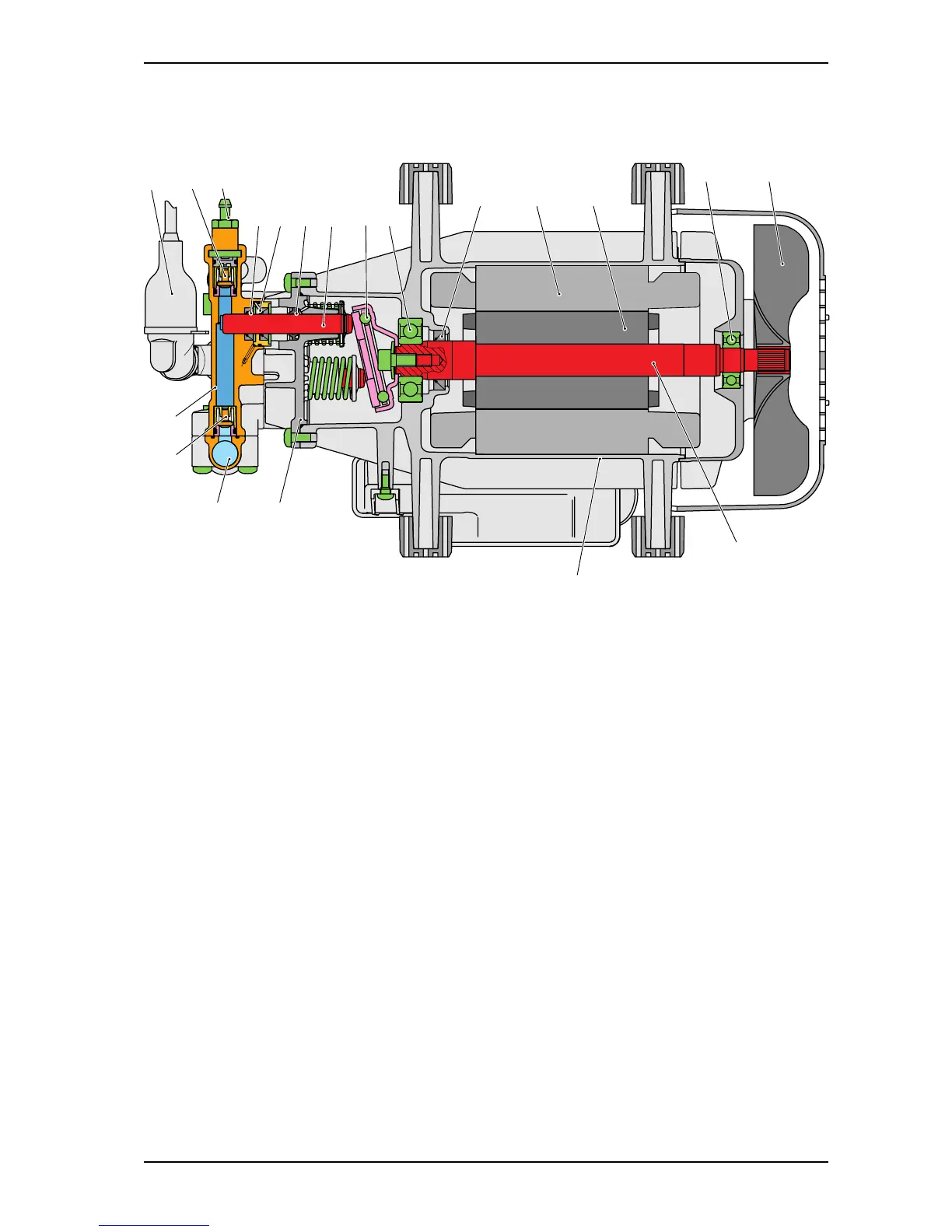

HD 5/12 Unit functions
Page 9 / 12
Motor
4
5
789
11
12
13
15
16
17
1 Pressure switch
2 Pressure valve
3 Cleaning agent suction hose connection
4 High-pressure seal
5 Low-pressure seal
6 Oil seal
7 Piston
8 Swash plate with thrust ball bearing
9 Motor bearings
10 Shaft seal
1
2
3
6
10
18
19
20
11 Motor winding (stator)
12 Magnet (rotor)
13 Motor bearings
14 Fan wheel
15 Motor drive shaft
16 Motor housing
17 Piston housing
18 Water connection
19 Suction valve
20 Cylinder head
14

Kärcher HD 5 12 Specifications

General

Flow Rate	500 l/h
Max Water Flow	500 l/h
Voltage	230 V
Frequency	50 Hz
Pressure	120 bar
