KEB COMBIVERT F4-F User Manual

ANTRIEBSTECHNIK
GB 15
GB
t
X2.4
v
LF.46
12
LF.50
LF.51
LF.50
LF.54
LF.53
LF.54
X2.6
X2.3
X2.1
X2.7
Inputs
Operating Points
What happens when? Description of the operating points of the door drive.
1: The acceleration process starts after the setpoint input is activated (X2.7 = 1).
Condition: Door drive is active (X2.6)
Control release is active (X2.1)
Direction of rotation (X2.3 / X2.4) is preset
2: When the setpoint for (X2.7) is removed deceleration begins.
4. Drive Curves

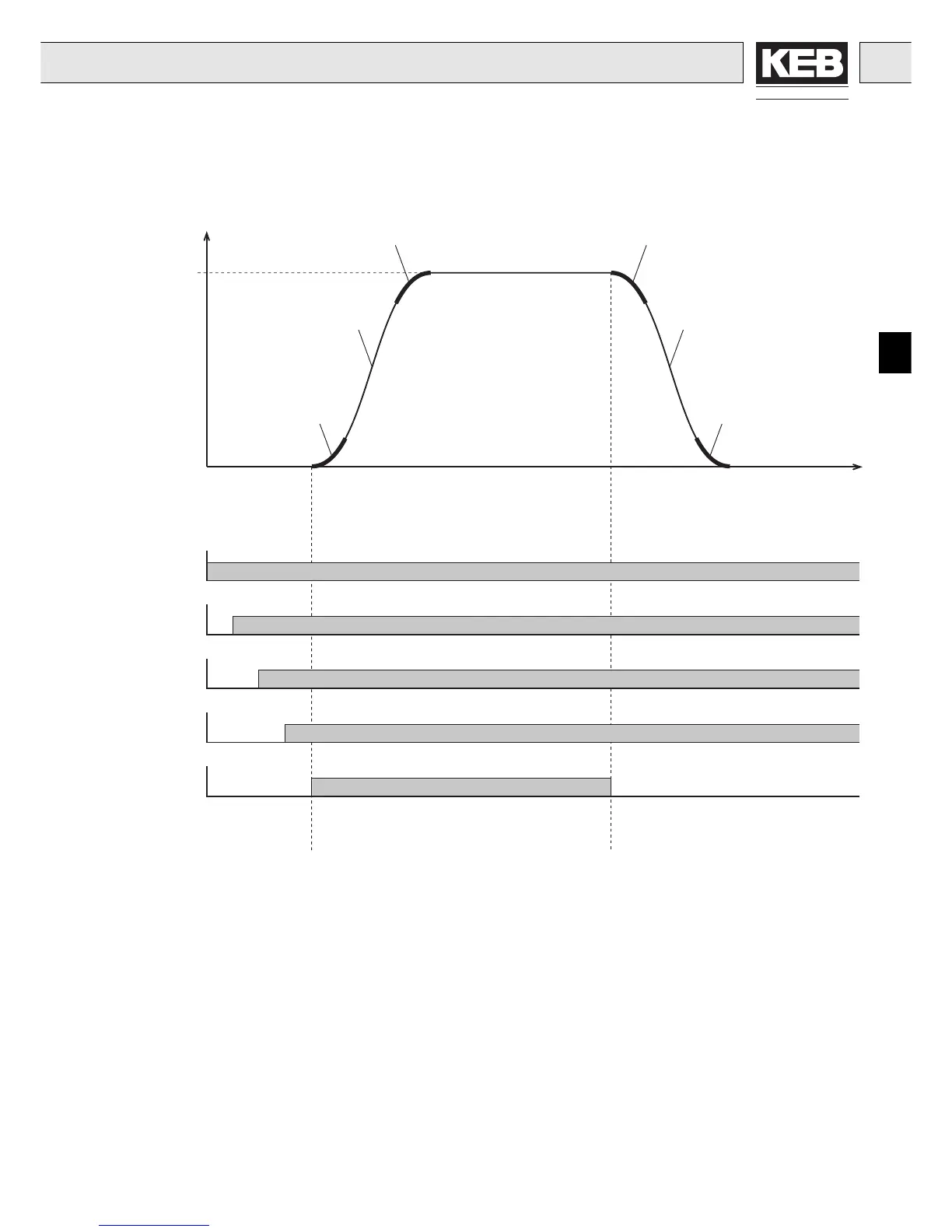

4.2.5 Drive Curve Door Drive

KEB COMBIVERT F4-F Specifications
