ANTRIEBSTECHNIK
GB 19
GB
A+
B-
B+
A-
A+
B-
B+
A-
12345
67
8
9
10
1112131415

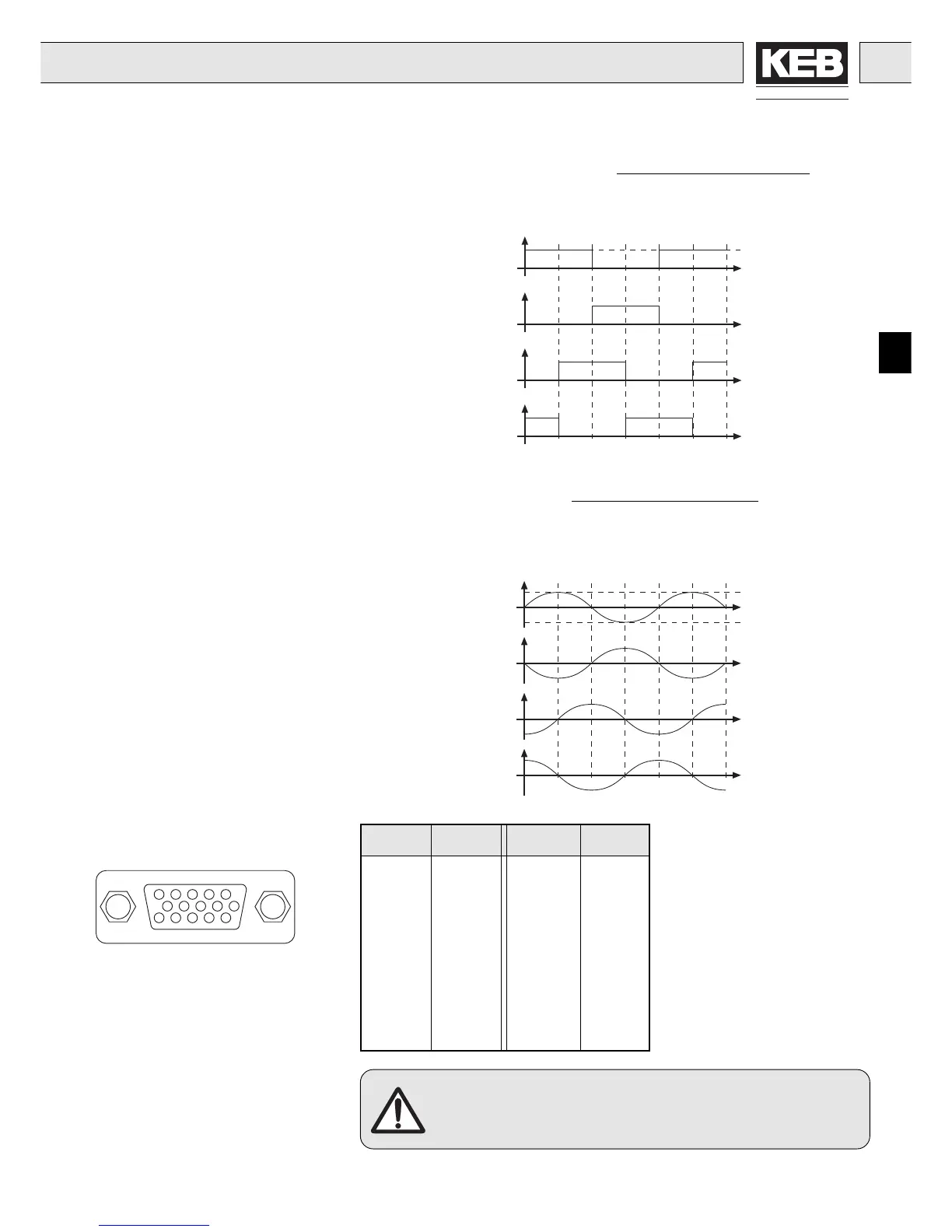

or sinusoidal 1 Vss signals
Two sinusoidal incremental signals that are
electrically by 90° out of phase and their inverse
signals
3- Output signals: Rectangular pulse signal
Two square-wave pulses that are electrically by
90° out of phase and their inverse signals
2...5 V
0 V
U0 + 0,5 V (+/-20 %)
U0 - 0,5 V (+/-20 %)
U0 ⇒ approx. 2.5 V
6. Connection
PIN-No. Signal PIN-No. Signal
1 C - 9 B +
2D -10
3A -11
4 B - 12 + 5 V
5 13 GND
6C +14R -
7D +15R +
8 A + Housing Shield
6.2.2 Connection
SIN/COS Encoder
The connector may only be connected / disconnected
when the inverter and voltage supply are shut off.
