KEB COMBIVERT F5 Original Manual

Installation
20
©
2020 KEB America, Inc.
5.2.2 Wiring Diagrams
5.2.2.1 DC Brake Resistor Contactor

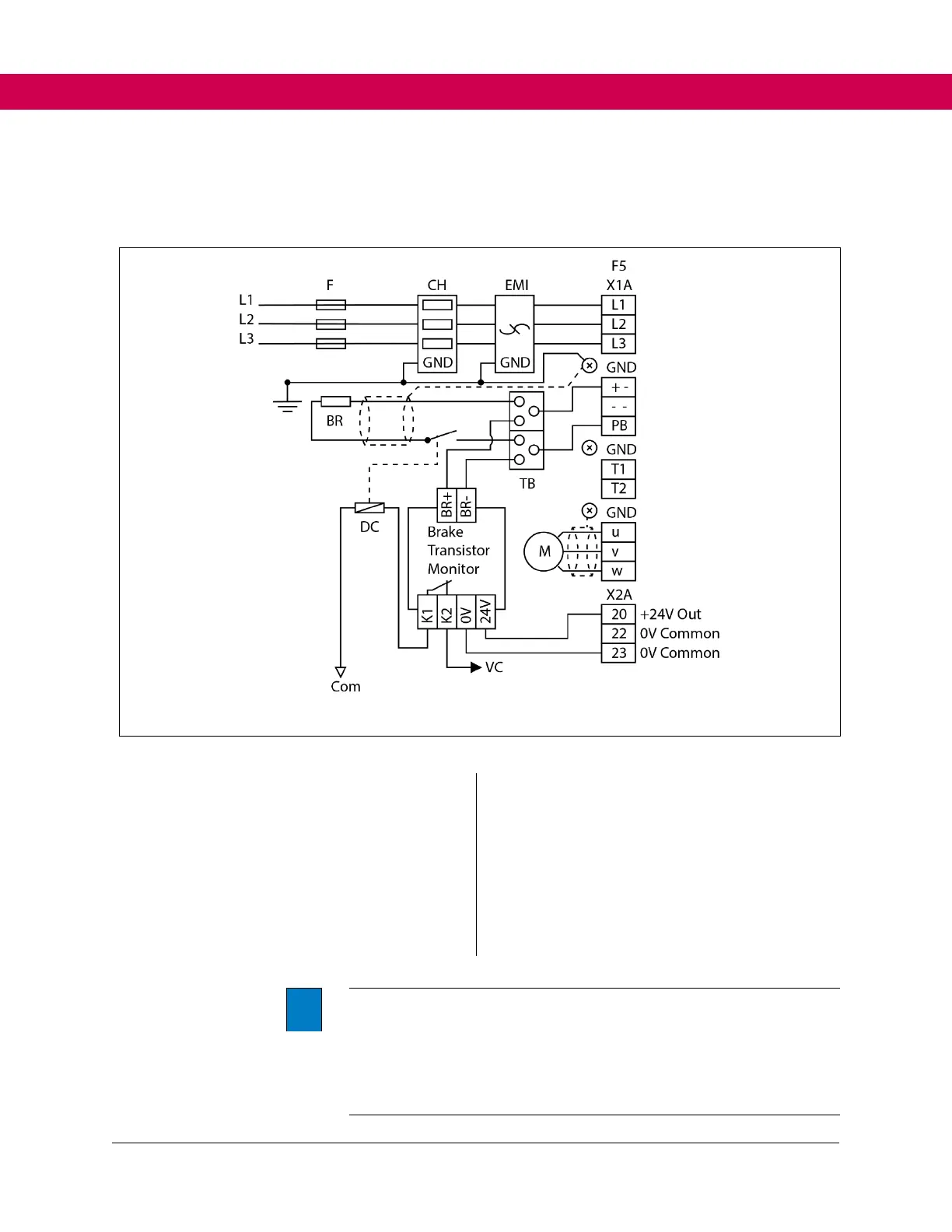

Figure 4: Wiring Diagram: DC Contactor
Key
F Branch-Circuit Fuses CH Line Choke
EMI EMI Filter F5 F5 Series AC Drive
TB Distribution / Connection Block BR Brake Resistor
DC DC Contactor VC Control Voltage
Com Control Voltage Common
i
 The terminals on the Drive and the Brake Transistor Monitor are
rated for single conduct
or only. Two conductors shall not be joined
to one terminal.
 To connect the Brake Transistor Monitor, an external distribution
or connection block (TB) must be used to connect the Brake
resistor and the Brake Transistor Monitor in parallel.
