4 Mechanical Installation
4.1 Control cabinet installation
4.1.1 General instructions
To ensure the connection between master / slave systems, the distances between the
modules may not be exceeded => Mounting distances.
4.1.2 Mounting distances
Mounting distances Dimen-
sion
Distance in mm Distance in inch
C
A
B
DD
A 150 6
B 100 4
C 100 4
D
1)
50…230 2…9
X
2)
50 2
Cabinet wall
1)
Max. distance for master/slave systems is given by
the Sub-D connection between the modules.
2) Distance to preceding elements in the cabinet
door.

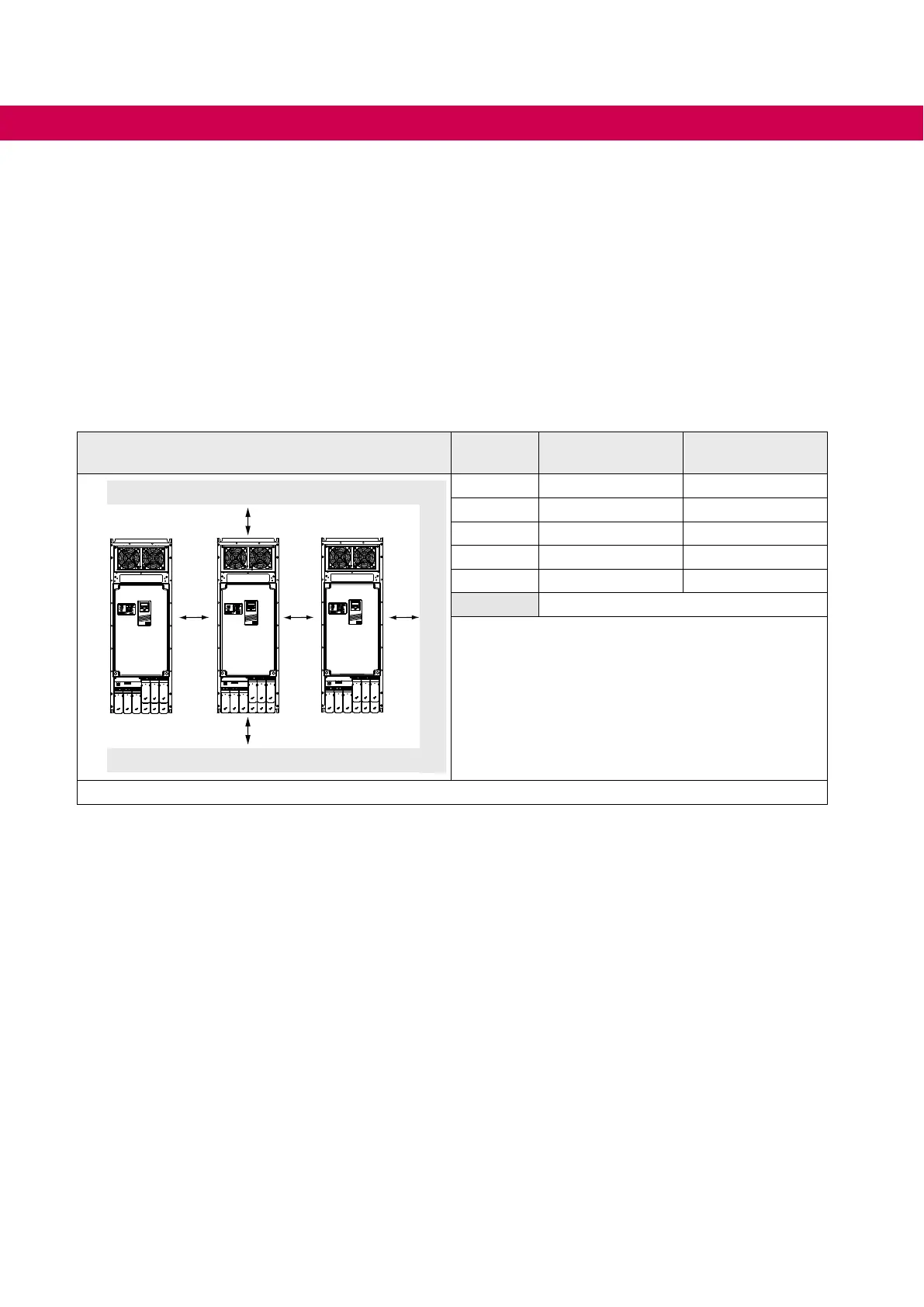

Figure 7: Mounting distances
46
MECHANICAL INSTALLATION
