6.5 Ethernet interfaces (ETHERNET0-2)

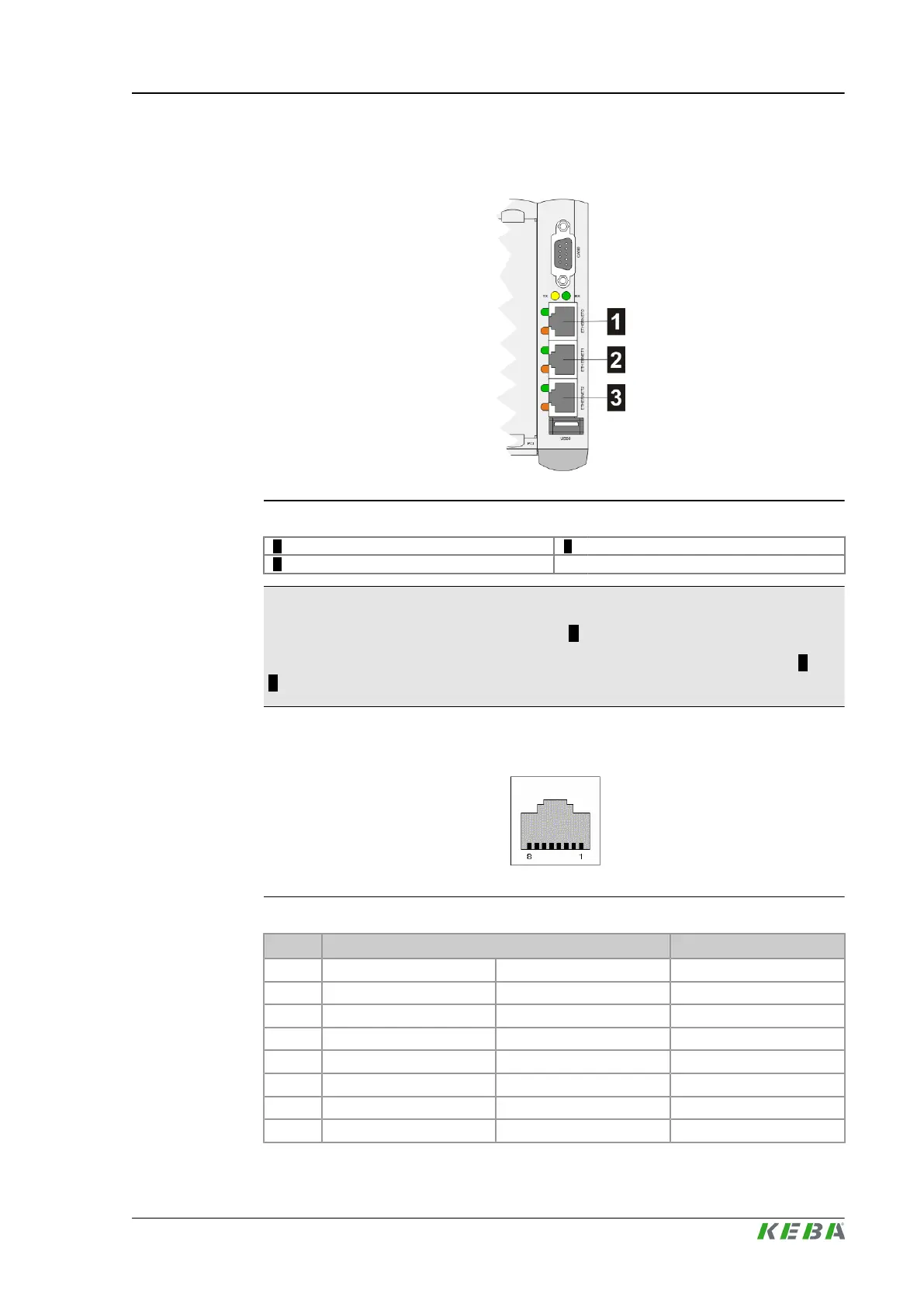

Fig.6-8: Position of the Ethernet interfaces
1
... ETHERNET0 2 ... ETHERNET1 / EtherCAT
3 ... EtherCAT / ETHERNET2
Information
Take the slot EtherCat / ETHERNET2 ( 3) by using one EtherCAT.
Take the slots ETHERNET1 / EtherCAT and EtherCAT / ETHERNET2 (2 and
3) by using two EtherCAT.
6.5.1 Pin assignment
Fig.6-9: RJ45 plug socket
Pin no. Signal designation Input / Output
1 Tr. Data + Transmit Data + Output
2 Tr. Data - Transmit Data - Output
3 Re. Data + Receive Data + Input
4 n.c. n.c. ---
5 n.c. n.c. ---
6 Re. Data- Receive Data - Input
7 n.c. n.c. ---
8 n.c. n.c. ---
CP 263/S, CP 263/X Connections and wiring
© KEBA 2014
Project engineering manual V1.01 29
