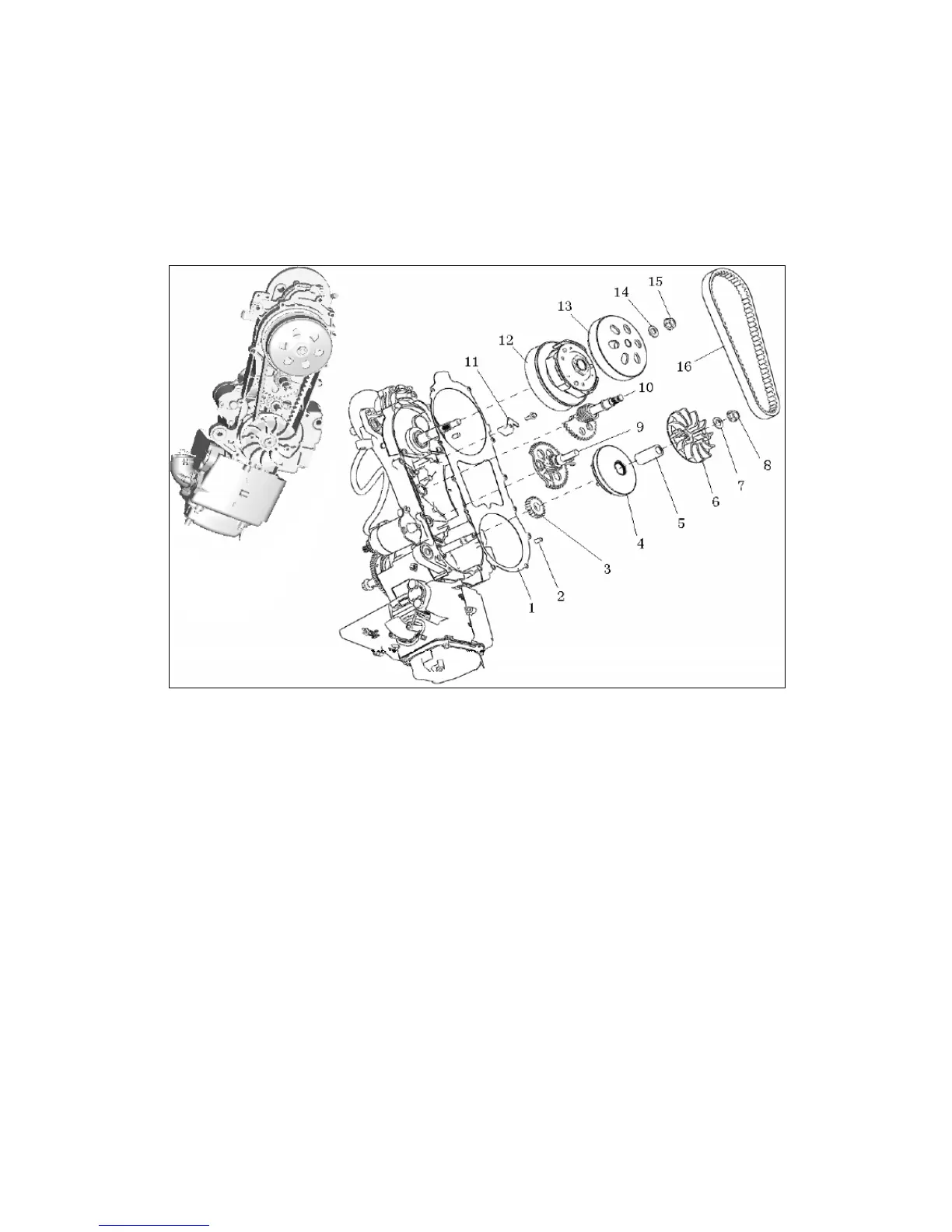

LH CRANKCASE COVER AND ASSOCIATED PARTS
Removal
Nut, star washer, and fixed face
(6, 7, &
8)
Drive Belt, nut, and washer
(16, 15, & 14)
Spacer and variator assembly
(4 & 5)
Clutch hub and drive assembly
(12 & 13)
Spring retainer and kick-start gear
(10 &
11)
Crankshaft starter and transition gears
(3
& 9)
Dowel and gasket
(1 & 2)
Installation procedure is reverse of
removal.
Torque Specifications
Retaining plate lock bolt 8lbs-ft
Locknuts (8 & 15) 33-40lbs-ft
NOTES: Coat shafts of kick-start and transition gears with assembly lube before
installing; keep transition gear reference aligned with crankshaft, and kick-start gear
To Next Page
