63

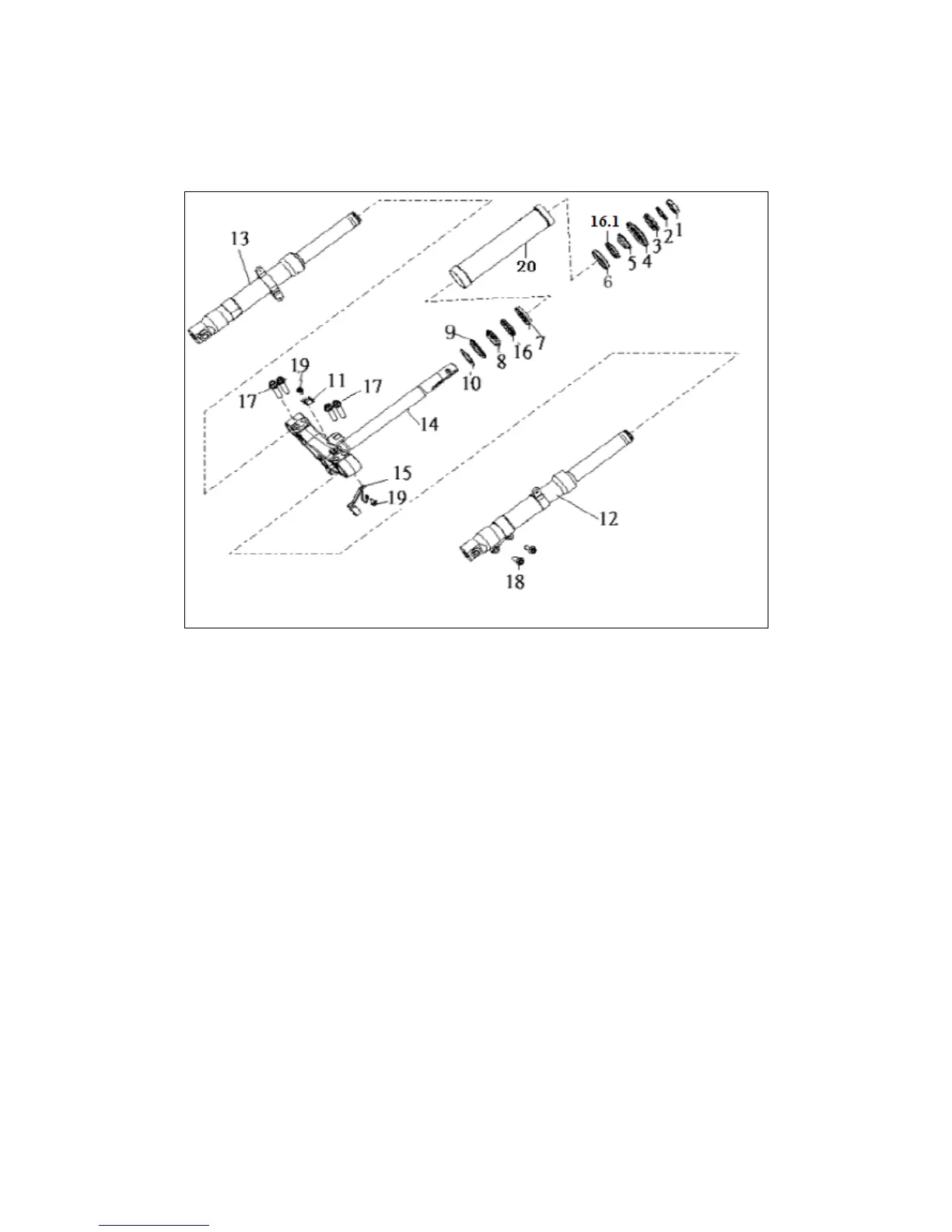

FRONT FORK ASSEMBLY
Removal
M10x1.25x40 Bolts (17)
LH and RH shock absorbers (12 & 13)
Stem locknut and seal (1 & 2)
External nut and dust seal (3 & 4)
Upper steel balls, race, and cap (5, 6,
and 16.1).
Slide triple clamp (14) down. DO NOT
REMOVE.
Bring washer and spacer (9 & 10) down
onto triple clamp stem.
CAREFULLY lower race (8) with a hand
underneath. Steel balls (16) will drop
into your hand.
Upper race (7)
Remove triple clamp and remaining
items on stem.
