Rear seat (6)
Installation procedure is opposite of removal.
NOTES: When assembling clutch shoe assembly, be sure to use new limiters and pins, to
ensure proper fit and function. When installing bearings, coat with assembly lube to
ensure free rotation, and ensure proper positioning of the clip.
KICK START SHAFT ASSEMBLY
Removal

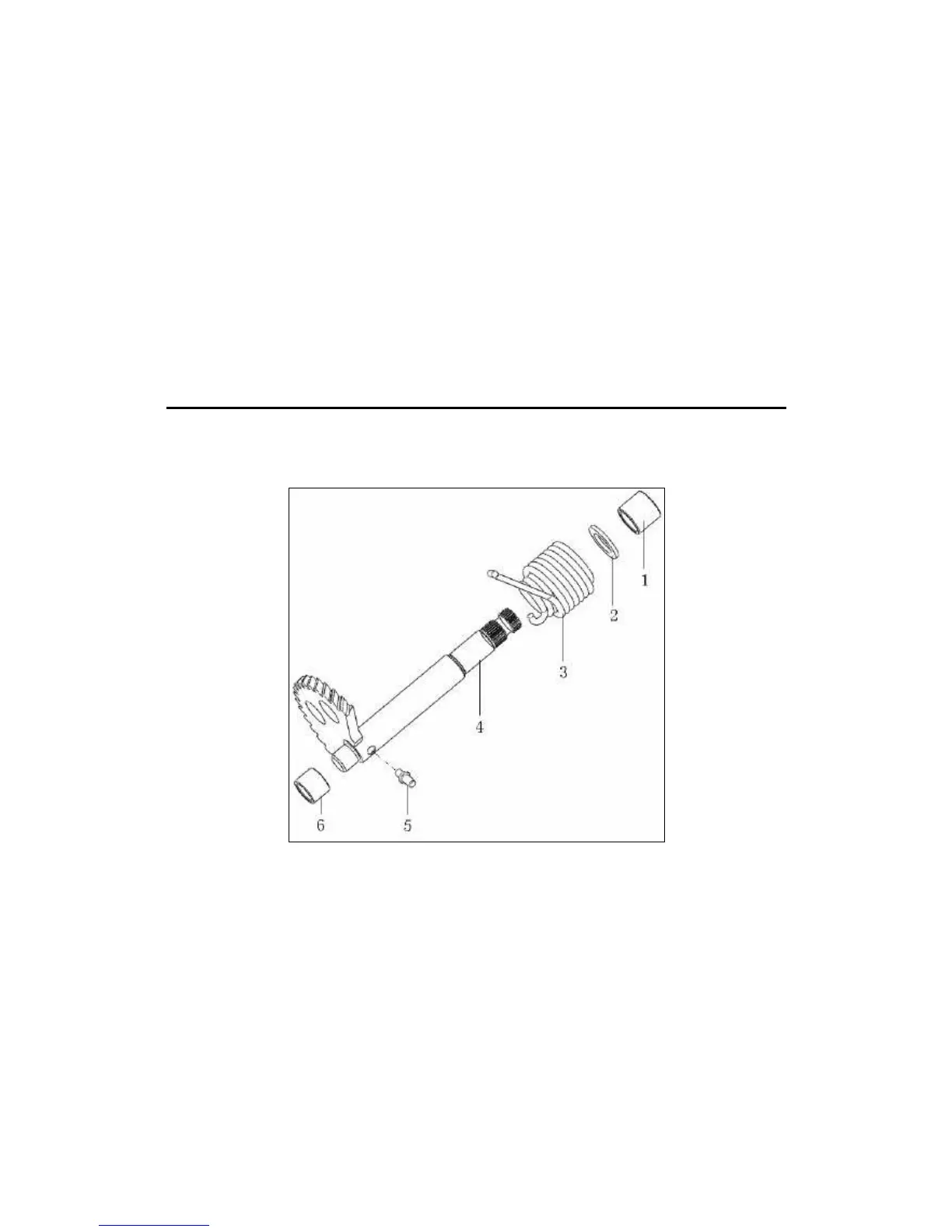

Kick start shaft assembly
Bushings (1 & 6)
Spring and washer (2 & 3)
Spring pin (5)
Kick start shaft (4)
Installation procedure is the opposite of removal.
