Front-panel user interface overview
The front-panel user interface gives you quick access to
source settings, measure settings, system conguration,
instrument status, reading buer information, and other
instrument functionality.

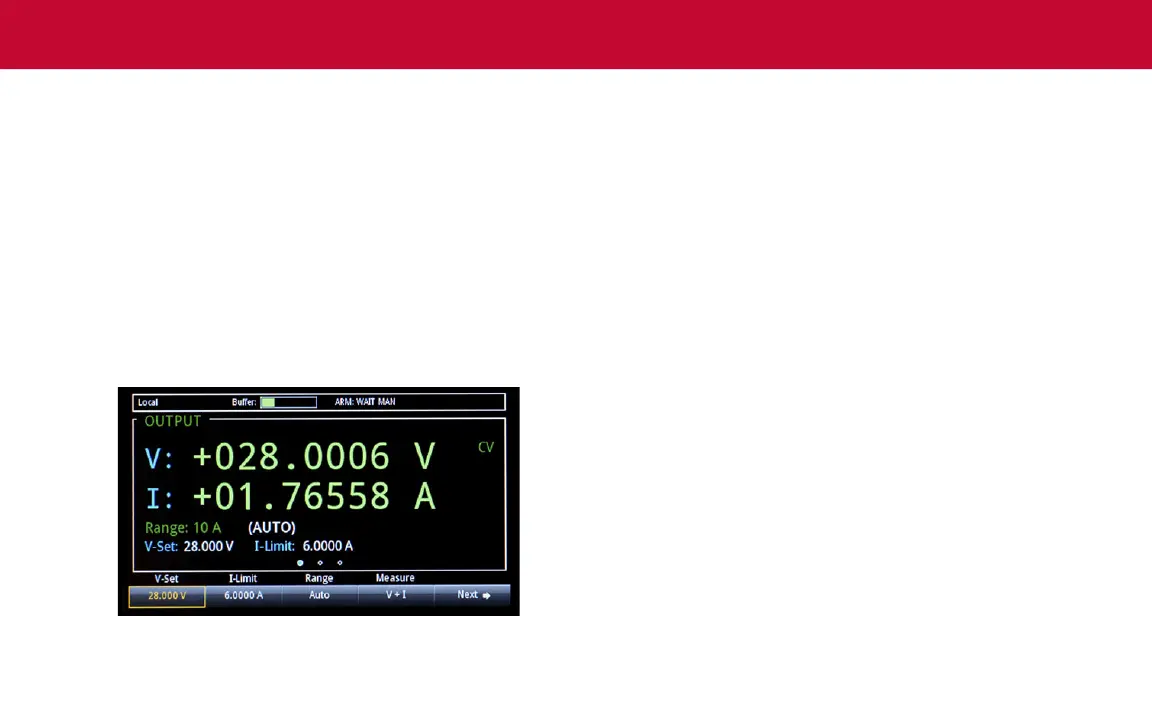

Home screen overview
The Home screen is the rst screen that opens on power up.
You can always return to the Home screen by pressing the
HOME key.
The top row on the Home screen displays the status and
event indicators. You can select these options to open dialog
boxes that provide additional information about the status or
event.
The OUTPUT view area of the Home screen displays the
value of the present outputs and status indicators. The
outputs show dashed lines until the output is turned on.
The settings area of the Home screen is on the lower left
corner of the OUTPUT view area. It shows the presently set
measure range, voltage, and current limit.
The soft-key area is on the bottom of the Home screen. It
shows the present setting values. You can change these
values by selecting the buttons below the screen. Select
Next to view additional soft-key options.
