Keithley 2280S-32-6 User Manual

Test
Congure and execute a 10-step linear list sweep
The following example demonstrates the steps to set up the
power supply to output a linear list sweep from 1 V to 10 V in
1 V steps (default settings). Each step in the list sweep
dwells for three seconds. The list is stored in list location 1.
The output turns on at 0 V and returns to 0 V at the end of
the list execution.

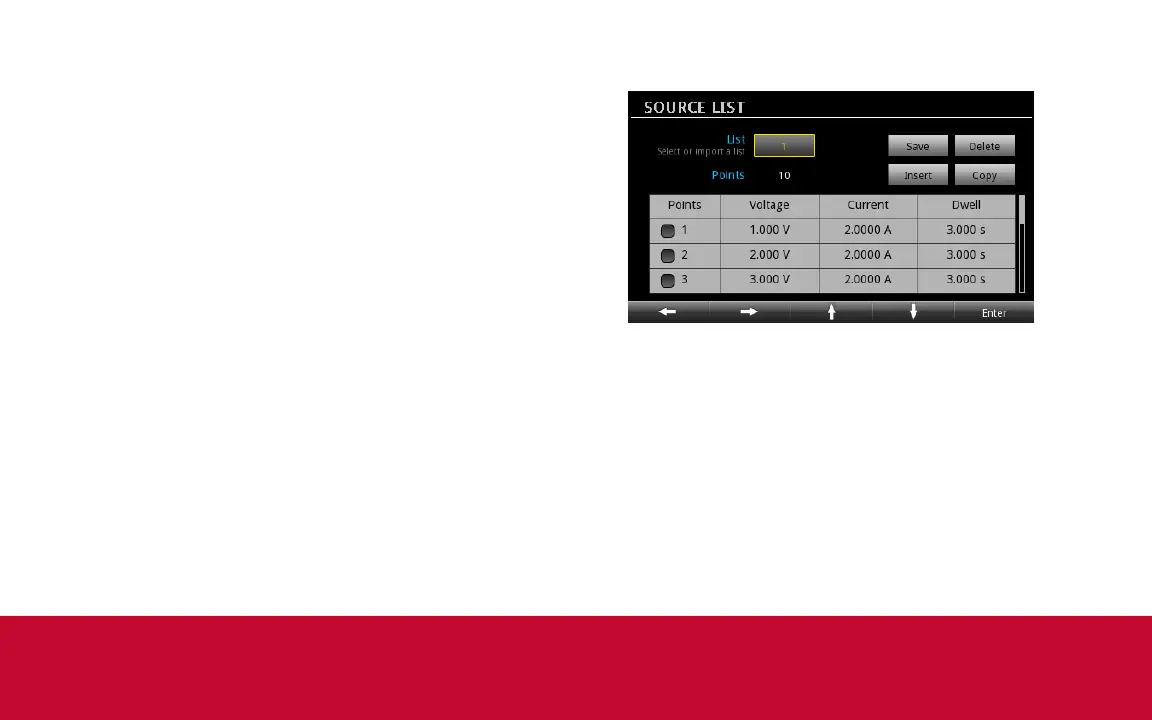

To congure a list using the front panel:
1. Press the MENU key.
2. Under Source, highlight the List icon using either the
navigation control or the soft keys. Press ENTER.
3. Select point 1 and press ENTER.
4. Highlight Insert and press ENTER to increment the
points display until there are 10 points.
5. Select the Voltage box in the point 1 row. Press ENTER.
6. Set the value to 1 V and press ENTER.
7. Select the Current box in the point 1 row. Press ENTER.
8. Set the value to 2 A and press ENTER.
9. Select the Dwell box in the point 1 row. Press ENTER.
10. Set the value to 3 s and press ENTER.
11. Repeat steps 5 to 8 for points 2 to 10 and increase the
voltage by 1 V at each higher step.
12. Select the Save button to store the list in memory
location 1.
13. Enter a name for the list on the displayed keypad and
press ENTER.
14. Press the EXIT key.
