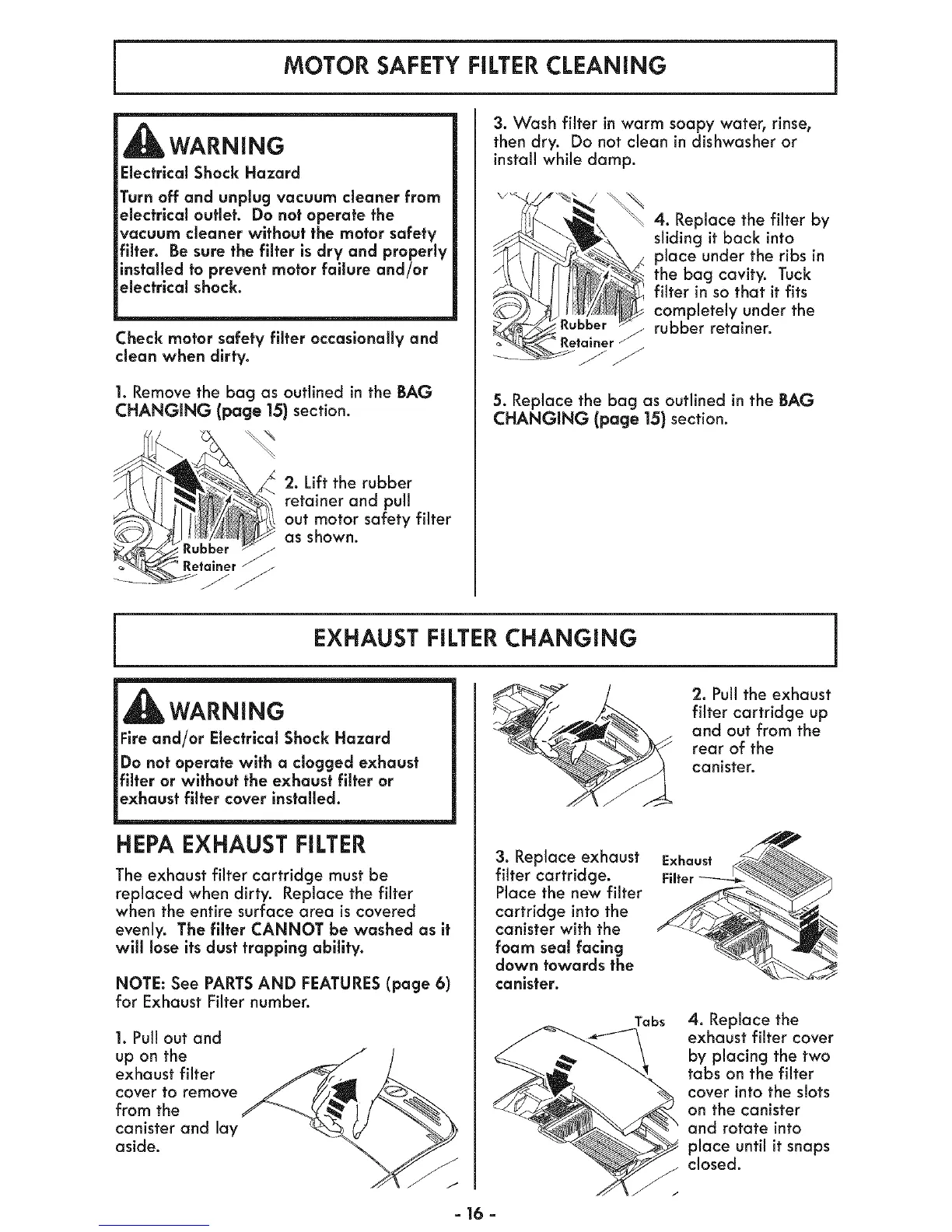

MOTOR SAFETY FILTER CLEANING
WARNING
Electrical Shock Hazard
Turn off and unplug vacuum cleaner from
electrical outlet. Do not operate the
vacuum cleaner without the motor safety
filter. Be sure the filter is dry and properly
installed to prevent motor failure and/or
electrical shock.
;heck motor safety filter occasionally and
clean when dirty.
1. Removethe bag as outlined inthe BAG
CHANGING (page 15) section.
2. Lift the rubber
retainer and pull
out motor safety filter
as shown.
3. Wash filter in warm soapy water, rinse,
then dry. Do not clean in dishwasher or
install while damp.
4. Replace the filter by
sliding it back into
place under the ribs in
the bag cavity. Tuck
filter in so that it fits
completely under the
rubber retainer.
5. Replace the bag as outlined in the BAG
CHANGING (page 15) section.
EXHAUST FILTER CHANGING
WARNING
Fire and/or Electrical Shock Hazard
Do not operate with a clogged exhaust
filter or without the exhaust filter or
exhaust filter cover installed.
HEPA EXHAUST FILTER
The exhaust filter cartridge must be
replaced when dirty. Replace the filter
when the entire surface area iscovered
evenly. The filter CANNOT be washed as it
will loseits dusttrapping ability.
NOTE: See PARTSAND FEATURES(page 6)
for Exhaust Filter number.
1. Pull out and
up on the
exhaust filter
cover to remove
from the
canister and lay
aside.
3. Replace exhaust
filter cartridge.
Place the new filter
cartridge intothe
canister with the
foam seal facing
down towards the
canister.
Tabs
2. Pull the exhaust
filter cartridge up
and out from the
rear of the
canister.
Exhaust
Filter
4. Replace the
exhaust filter cover
by placing the two
tabs on the filter
cover into the slots
on the canister
and rotate into
place until it snaps
closed.
= 16 =
