OTHER THINGS TO KNOW
SECTION 4
20

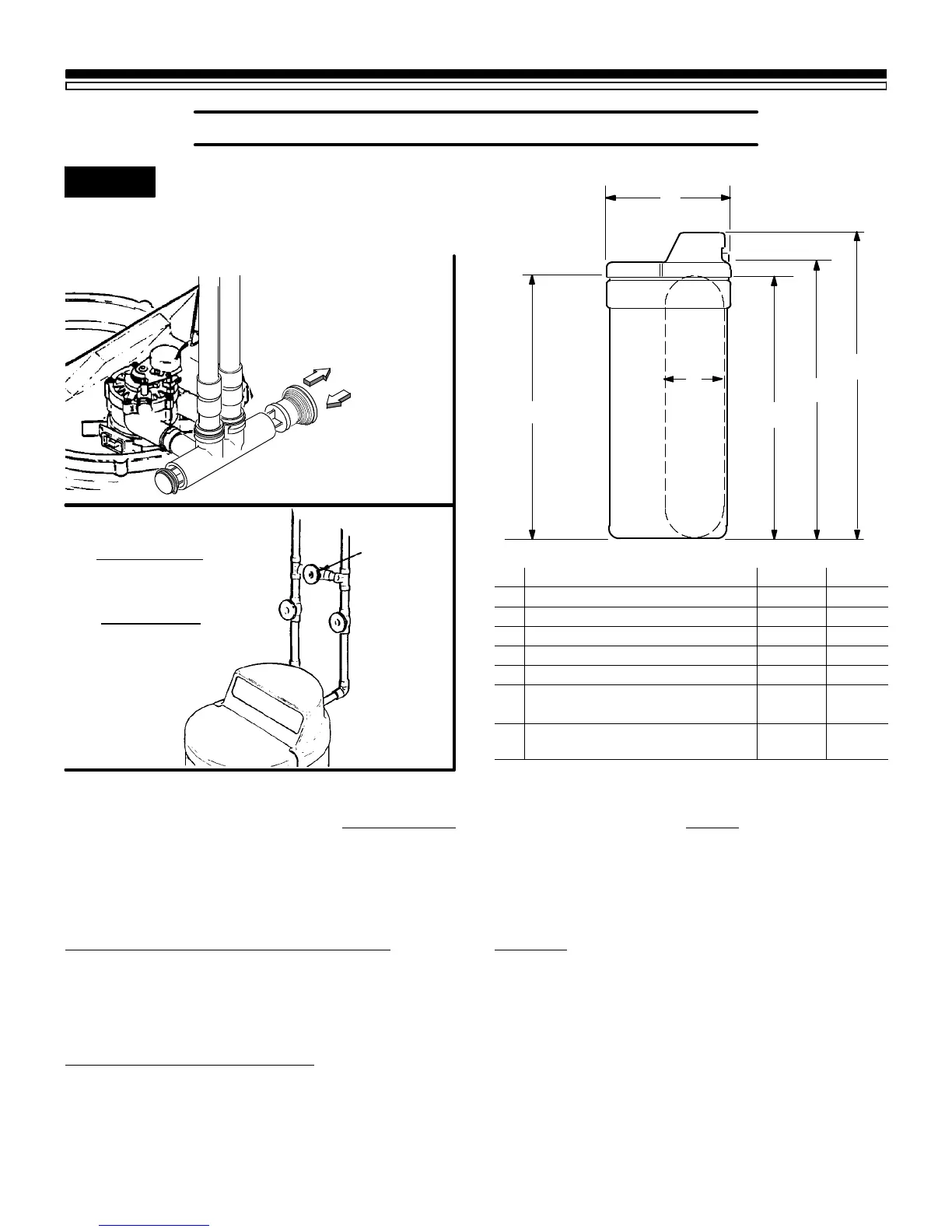

4A. DIMENSIONS/SPECIFICATIONS
FIG. 12 BYPASS VALVES
Bypass
Valve
Inlet
Valve
Outlet
Valve
3 -- VALVE
FOR SERVICE
close bypass valve
open inlet & outlet valves
FOR BYPASS
open bypass valve
close inlet & outlet valves
PUSH IN
for bypass
PULL OUT
for service
SINGLE
B
y
p
a
s
s
v
a
l
v
e
(
s
)
s
h
o
u
l
d
a
l
w
a
y
s
r
e
m
a
i
n
i
n
s
o
f
t
water service position. Position in “bypass”
only if needed for softener repairs.
A
B
C
D
E
F
INCHES CM
A Salt Tank Height 40-1/4 102.2
B Resin Tank Diameter (nominal) 9 22.7
C Resin Tank Height (nominal) 40 101.6
D Inlet-Outlet Height 41-1/2 105.4
E Overall Height 47 119.4
F
1
Length 19-1/2 49.5
F
2
Width 16-1/2 41.9
— Distance between inlet-outlet
center lines
3-7/8 9.8
MODEL NO. 625.348670 TIMER HF CODE HF32
NOTE: Please see the rating decal for water softener operatingcapacity,salt usageandserviceflowrate/pres-
sure loss performance specifications. Performance specifications are validated by the Water Quality Associa-
tion (WQA). The rating decal is located on the rim, under the salt hole cover (see page 30).
WATER SUPPLY TO WATER SOFTENER
MINIMUM WATER SYSTEM FLOW (gpm) 3. . . . . . . . . . . . . . . .
MINIMUM-MAXIMUM WATER PRESSURE (psi) 20-120. . . . . .
MAXIMUM WATER TEMPERATURE (°F) 120. . . . . . . . . . . . . . .
MAXIMUM WATER HARDNESS (gpg) 110. . . . . . . . . . . . . . . . . .
MAXMUM “CLEAR WATER” IRON (ppm) 8. . . . . . . . . . . . . . . . .
SALT FOR WATER SOFTENER
TYPE OF SALT NEEDED Nugget/Pellet. . . . . . . . . . . . . . . . . . . .
ALTERNATE TYPE OF SALT Pure, evaporated, compacted. .
water softener salt
STORAGE CAPACITY (pounds) 200. . . . . . . . . . . . . . . . . . . . . . .
OTHERS
TYPE OF ION EXCHANGE MATERIAL (resin) High Capacity
AMOUNT OF RESIN (cu.ft.) 1.05. . . . . . . . . . . . . . . . . . . . . . . . . .
REGENERATION (RECHARGE) CYCLE TIME (min.)
FILL (NaCL setting) 2.7-10.6. . . . . . . . . . . . . . . . . . . . . . . . . . .
FILL (KCl setting) 3.8-12.6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BRINING / BR. RINSE 120-135. . . . . . . . . . . . . . . . . . . . . . . . .
BACKWASH 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FAST RINSE 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TOTAL REGENERATION TIME 139.4---164.4. . . . . . . . . . . .
gpm = gallons per minute psi = pounds per square inch
gpg = grains per gallon ppm = parts per million
