REPAIR PARTS
SECTION 6
30

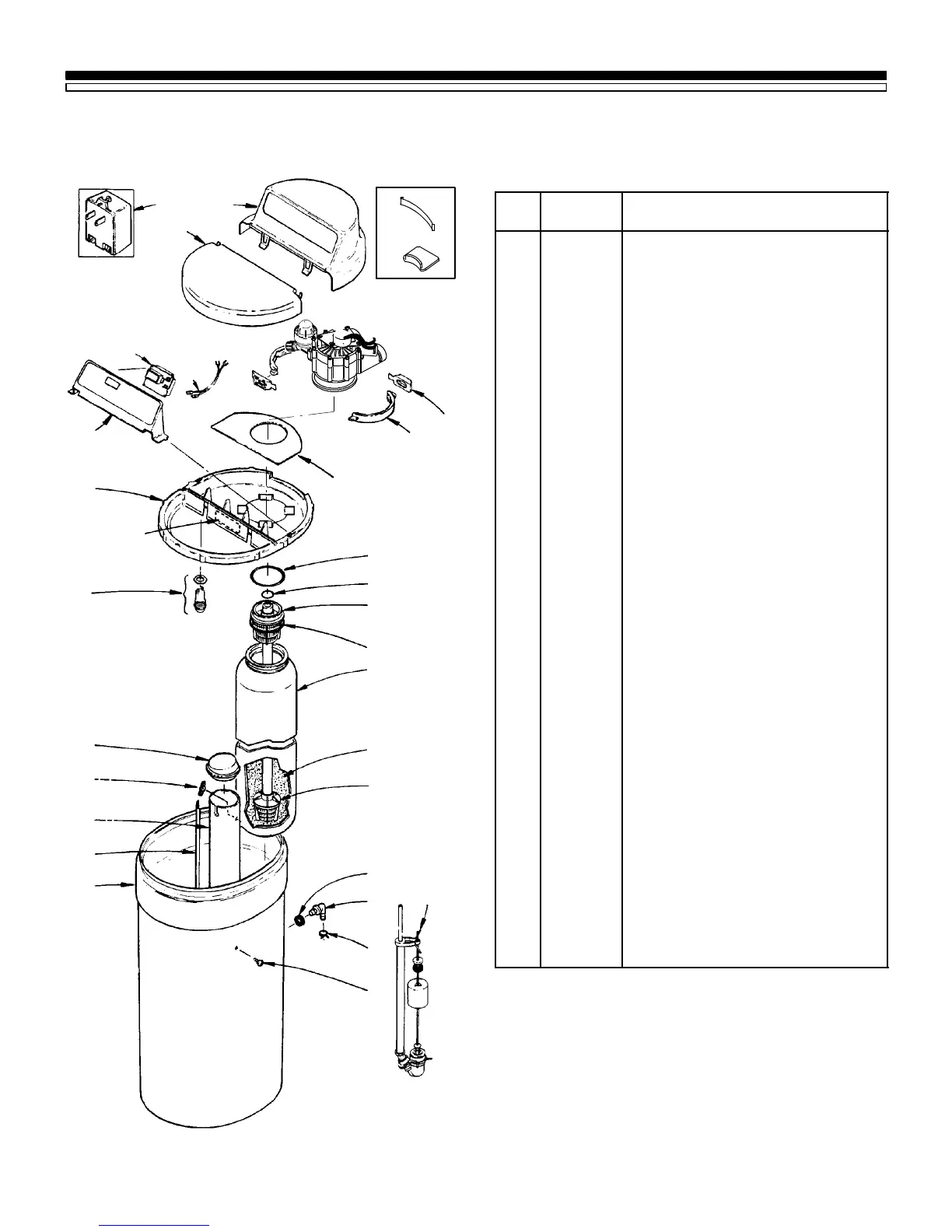

KENMORE WATER SOFTENER, MODEL NO. 625.348670
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Rating
Decal Location
VALVE
ASSEMBLY
(see page
32)
KEY
NO.
PART
NUMBER
DESCRIPTION
1 ------ Cover Lock (req’d for shipment only)
1 ------ Rim Insert (req’d for shipment only)
2 7174177 Cover (main)
3 7137612 Salt Hole Cover
4 7095373 Transformer, 24V-10VA F
5 7132840 Power Cord (transformer)
6 7185518 Timer Repl. (PWA)
7
--
7174185
7179062
Faceplate (order following decal)
Faceplate Decal
8 7139486 Rim
9 7137939 Light, Salt Level
10 7137727 Brinewell Cover
11 7082150 Wing Nut, 1/4²
12 7100819 Brinewell
13 7137913 Decal, Salt Level ¬
14 7144619 Salt Storage Tank
15 7148875 Plastic Screw, 1/4² x 5/8²
16 0900431 Tube Clamp F
17 1103200 Tube Adaptor F
18 9003500 Grommet F
19 7116488 Brine Valve Assy. (also see pg. 31)
20 7105047 Replacement Distributor
21 0502272 Resin
22 7144952 Resin Tank (incl. Key No. 21)
23 7170270 O-Ring, 2-3/4² x 3²
24 7077870 Top Distributor
25 7170254 O-Ring, 13/16² x 1-1/16²
26 7170296 O-Ring, 2--7/8² x 3-1/4²
27 7141001 Vapor Barrier
28 7176292 Clamp Section (2 req.)
29 7088033 Clamp Retainer (2 req.)
u 7183613 Installation Manual F
u 7179096 Owners Manual F
u not illustrated
F Included in parts pack . . .see page 33.
¬ Aligns with top of brinewell.
