Kenwood 1050SW User Manual

CROSSOVER
120 CROSSOVER
104, SLOPE LINE
FREQUENCY INPUT
@&) (ly Br Bet RO, @
foy @ .
t e
CAUTION: SEE INSTAUCTION MANUAL FOR CORRECT SETTING.
@ Leen eee eee o @ ~@
L @ @ @ J

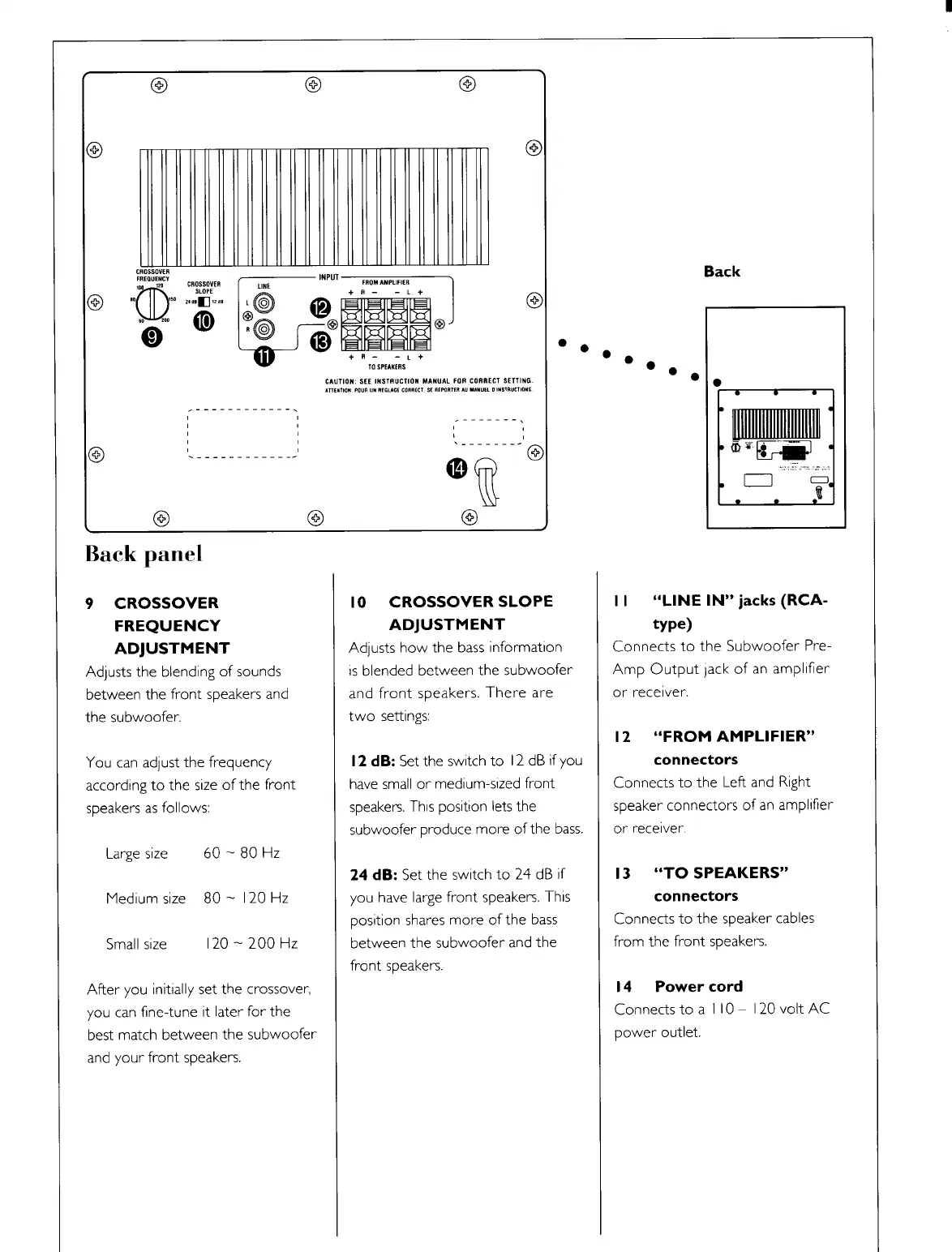

Back panel
9 CROSSOVER 10 CROSSOVER SLOPE
FREQUENCY ADJUSTMENT
ADJUSTMENT Adjusts how the bass information
Adjusts the blending of sounds
between the front speakers and
the subwoofer.
You can adjust the frequency
according to the size of the front
speakers as follows:
Large size 60 ~ 80 Hz
Medium size 80 ~ 120 Hz
Small size 120 ~ 200 Hz
After you initially set the crossover,
you can fine-tune it later for the
best match between the subwoofer
and your front speakers.
is blended between the subwoofer
and front speakers. There are
two settings:
12 dB: Set the switch to 12 dB if you
have small or medium-sized front
speakers. This position lets the
subwoofer produce more of the bass.
24 dB: Set the switch to 24 dB if
you have large front speakers. This
position shares more of the bass
between the subwoofer and the
front speakers.
Back
Il “LINE IN” jacks (RCA-
type)
Connects to the Subwoofer Pre-
Amp Output jack of an amplifier
or receiver.
12) “FROM AMPLIFIER”
connectors
Connects to the Left and Right
speaker connectors of an amplifier
or receiver.
13) “TO SPEAKERS”
connectors
Connects to the speaker cables
from the front speakers.
14 Power cord
Connects to a 110 — 120 volt AC
power outlet.
