1070VR/1060VR (En/K)

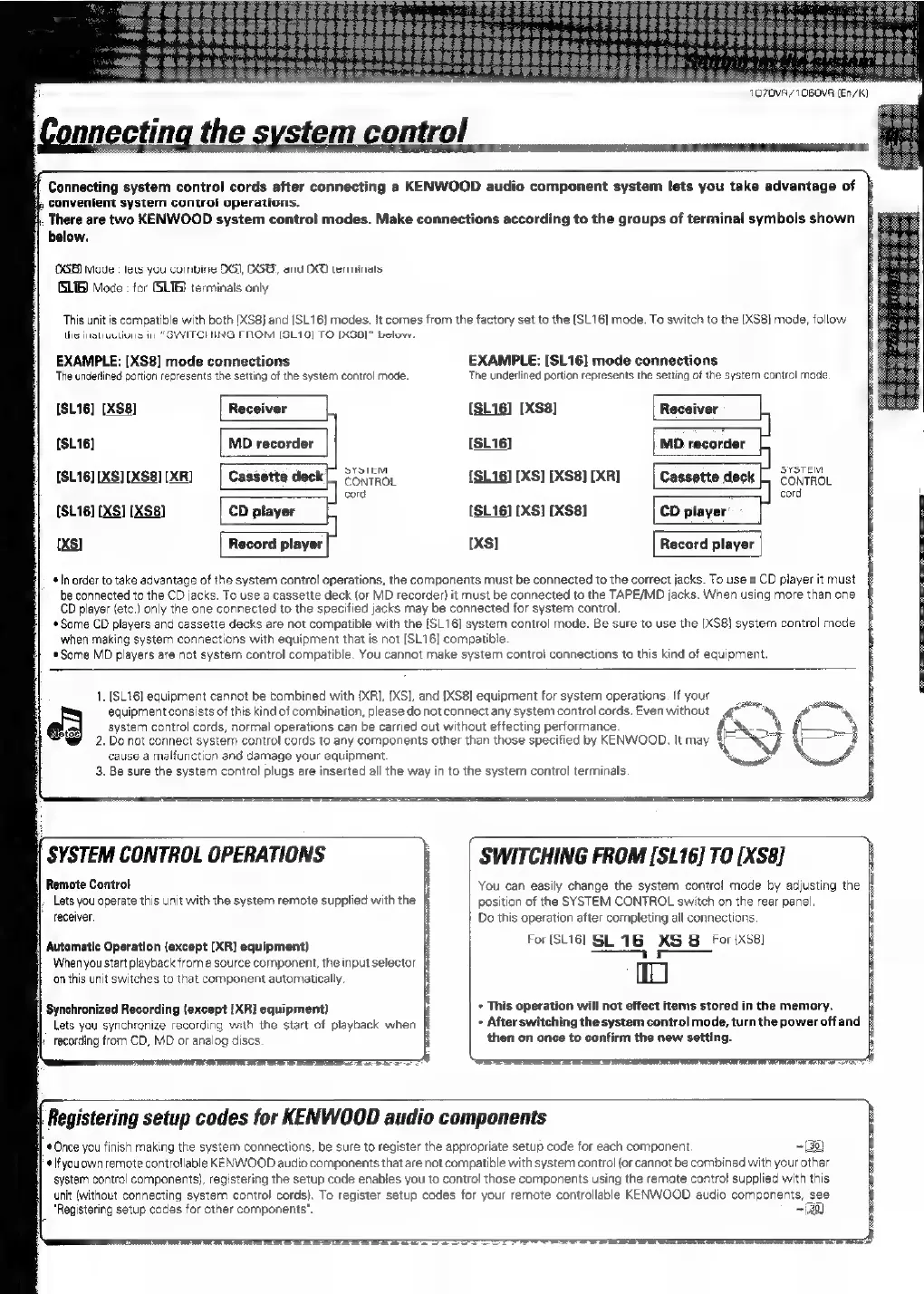

Connecting the system control
{ Connecting system control cords after connecting a KENWOOD audio component system lets you take advantage of
i conventent system control operations.
H.. There are two KENWOOD system control modes. Make connections according to the groups of terminal symbols shown
below.
{XSB) Mode ; lets you combine DX5], OXSG, and OXT terminals
GLIB Mode : for (LIB) terminals only
This unit is compatible with both [XS8} and [SL16] modes. !t comes from the factory set to the [SL16] mode. To switch to the [XS8] mode, follow
Ure instiuctivis in “SWITCIING FROM [SL16] TO [X38]" below.
EXAMPLE: [XS8] mode connections EXAMPLE: [SL16] mode connections
The underlined portion represents the setting of the system control mode. The underlined portion represents the setting of the system control mode
[SL16] [X$8] Receiver (SL16] [XS8] Receiver
[SL16] MD recorder [SL16] MD. recorder
[SL16][XS][XS8][XR] | Cassette deck 25;rRoL {SL16] [XS] [XS8] [XR] Cassette deck | 2GnTHOL
—————————| cord cord
[SL16] [XS] [X$8] CD player {SL16] [XS] [X$8] CD player - -
[XS] Record player [Xs] Record player
In order to take advantage of the system control operations, the components must be connected to the correct jacks. To use a CD piayer it must
be connected to the CD jacks. To use a cassette deck (or MD recorder) it must be connected to the TAPE/MD jacks. When using more than one
CD player (etc.) only the one connected to the specified jacks may be connected for system control.
¢Some CD players and cassette decks are not compatible with the [SL16] system control mode. Be sure to use the [XS8] system control mode
when making system connections with equipment that is not [SL16] compatibie.
*Some MD players are not system control compatible. You cannot make system control connections to this kind of equipment.
1. [SL16] equipment cannot be combined with [XR], [XS], and {XS8] equipment for system operations. If your [
equipment consists of this kind of combination, please do not connectany system control cords. Even without ie. 4 oe K
oat system control cords, normal operations can be carried out without effecting performance. Xe 2 —-} ‘
2. Do not connect system control cords to any components other than those specified by KENWOOD. It may p
cause a malfunction and damage your equipment. E
3. Be sure the system control plugs are inserted all the way in to the system control terminals.
SYSTEM CONTROL OPERATIONS SWITCHING FROM [SL16] TO [XS8]
Remote Control You can easily change the system control mode by adjusting the
i). Lets you operate this unit with the system remote supplied with the position of the SYSTEM CONTROL switch on the rear panel
receiver. Do this operation after completing all connections.
Automatic Operation (except [XR] equipment) For ISL16) SLAG XS B_ For ixsél
——S
When you start playback from a source component, the input selector
on this unit switches to that component automatically. ; mM
Synchronized Recording (except [XR] equipment) + This operation will not effect items stored in the memory.
Lets you synchronize recording with the start of playback when | + After switching the system control mode, turn the power off and i
i:
recording
from
CD,
MD
or
analog
discs.
then
on
once
to
confirm
the
new
setting.
iM
| Registering setup codes for KENWOOD audio components
Once you finish making the system connections, be sure to register the appropriate setup code for each component. + (30)
| ¢ Ifyou own remote controllable KENWOOD audio components that are not compatible with system control (or cannot be combined with your other
Aj system control components), registering the setup code enables you to control those components using the remote contro! supplied with this
unit (without connecting system control cords}. To register setup codes for your remote controllable KENWOOD audio components, see
| ‘Registering setup codes for other components". ~ (30)
