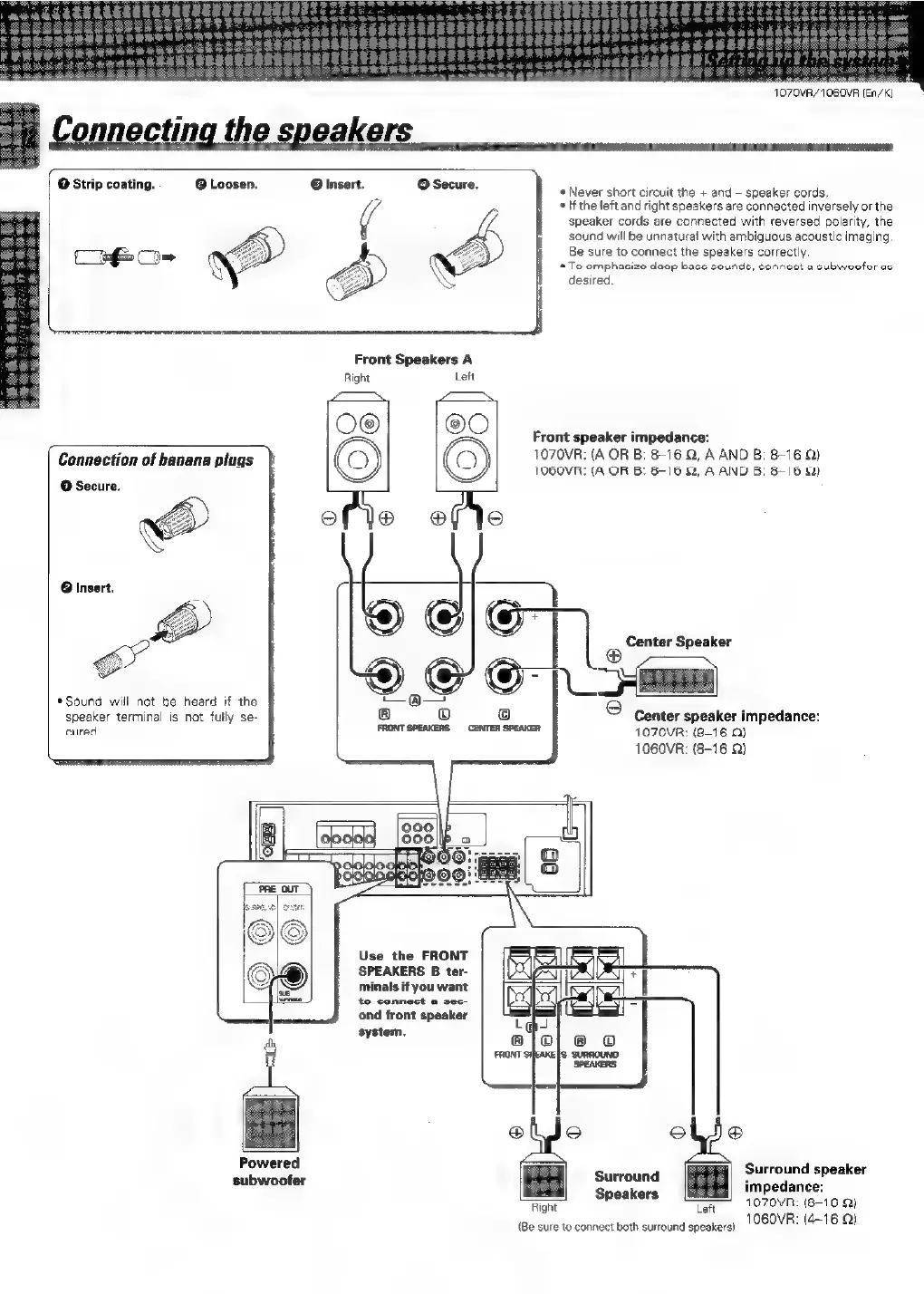

Connecting the speakers
@ Strip coating. @ Loosen. @ Insert.
ee =
Front Speakers A
Right
Left
Connection of banana plugs
@ Secure.
@ Insert.
*Sound will not be heard if the
speaker terminal is not fully se-
cured
1070VR/11080VR [En/K)
* Never short circuit the + and — speaker cords.
* If the left and right speakers are connected inversely or the
speaker cords are connected with reversed polarity, the
sound will be unnatural with ambiguous acoustic imaging
Be sure to connect the speakers correctly.
= To omphacizo doop bass counde, conneot a subwoofor ac
desired.
Front speaker impedance:
1070VR: {A OR B: 8-16 Q, A AND B: 8-16 Q)
TOSOVR: (A OR B: 6-16 &, AAND B: 3-16 &2)
Center Speaker
] Center speaker impedance:
1070VR: (8-16 O)
1060VR: (8-16 Q)
Use the FRONT
SPEAKERS B ter-
minals if you want
te connect a sec-
ond front speaker
system.
Powered
subwoofer
Surround speaker
impedance:
1070VN: (6-16 2)
1O60VR: (4-16 Q)
Surround
Speakers
a a
Right Left
{Be sure to connect both surround speakers)
