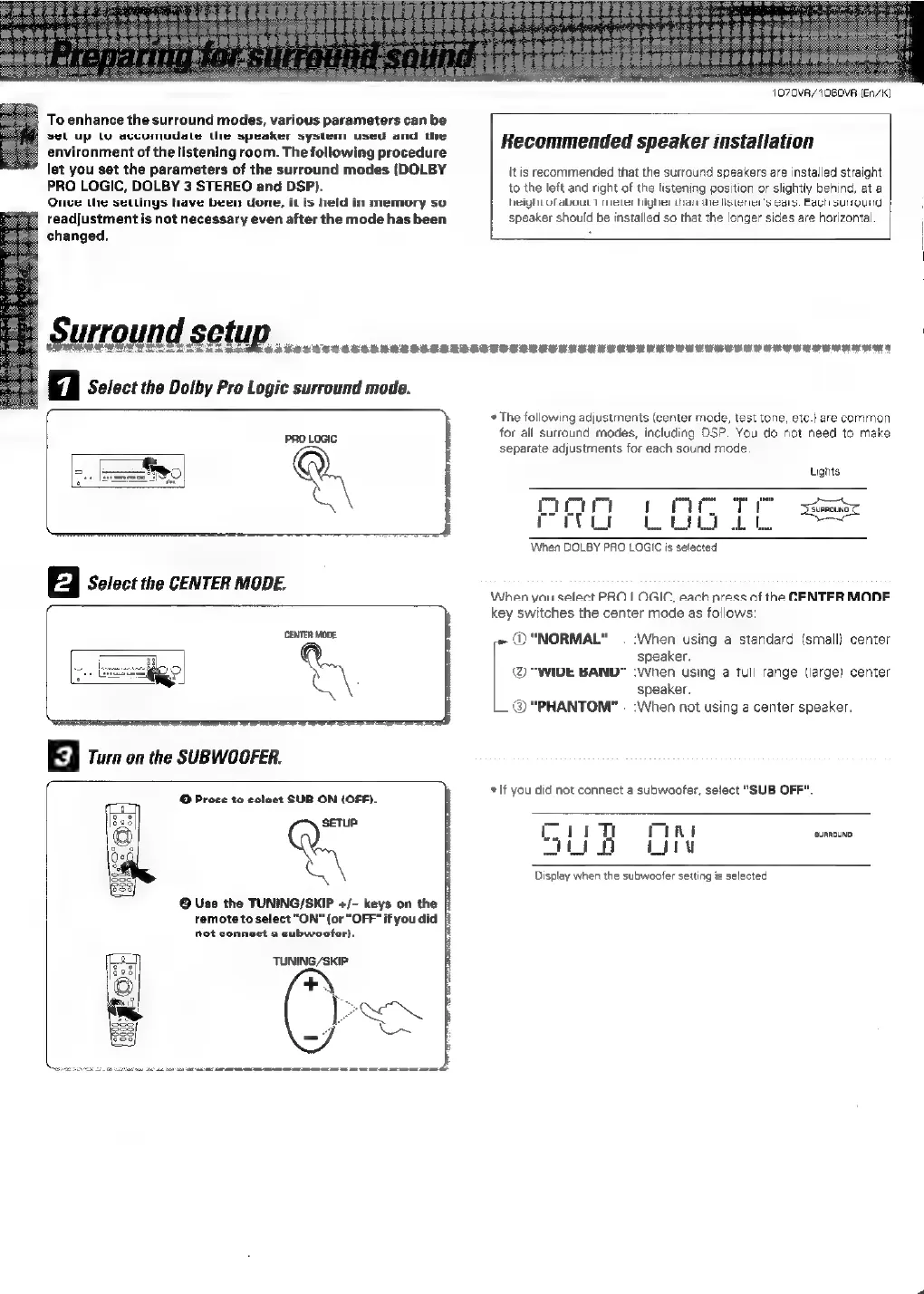

To enhance the surround modes, various parameters can be
sel up lu avcumudale Ue speaker system used and the
environment of the listening room. The following procedure
let you set the parameters of the surround modes (DOLBY
PRO LOGIC, DOLBY 3 STEREO and DSP).
Onve the settings bave been done, it is held in memory so
readjustment is not necessary even after the mode has been
changed.
41070VR/1080VR (En/K)
Recommended speaker installation
it is recommended that the surround speakers are installed straight
to the left and right of the listening position or slightly behind, at a
heiyht uf about meter bighes ian the liswener's gars, Bach suund
speaker should be installed so that the longer sides are horizontal.
SUPOUNT SOUUP ooo ..cccsocearonovocenecnnersvnernunouvunevareeeeereennes
Select the Dolby Pro Logic surround mode.
PRO LOGIC
E] select the cenTeR move.
CENTER MODE
FE Turn on the SUBWOOFER.
@ Proce to coloct SUB ON (OFF).
SETUP
u
@ Use the TUNING/SKIP +/- keys on the
remote to select "ON" (or "OFF" if you did
not connect a eubwoofor}.
TUNING/SKIP
* The following adjustments (center mode, test tone, etc.) are common
for all surround modes, including DSP. You do not need to make
separate adjustments for each sound mode
Lights
Cee! or 4
rove lo
When DOLBY PRO LOGIC is selected
When you select PRO | OGIC. each press of the CENTER MODE
key switches the center mode as follows:
@"“NORMAL" — :When using a standard (small) center
speaker.
(@ “WIDE BAND™ :When using a tull range (large) center
speaker.
@ "PHANTOM" = :When not using a center speaker.
* lf you did not connect a subwoofer, select "SUB OFF".
mirt ¢
ak
Display when the subwoofer setting is selected
Ni SURROUND
f
a
Ji
