Kenwood CS-5165 User Manual

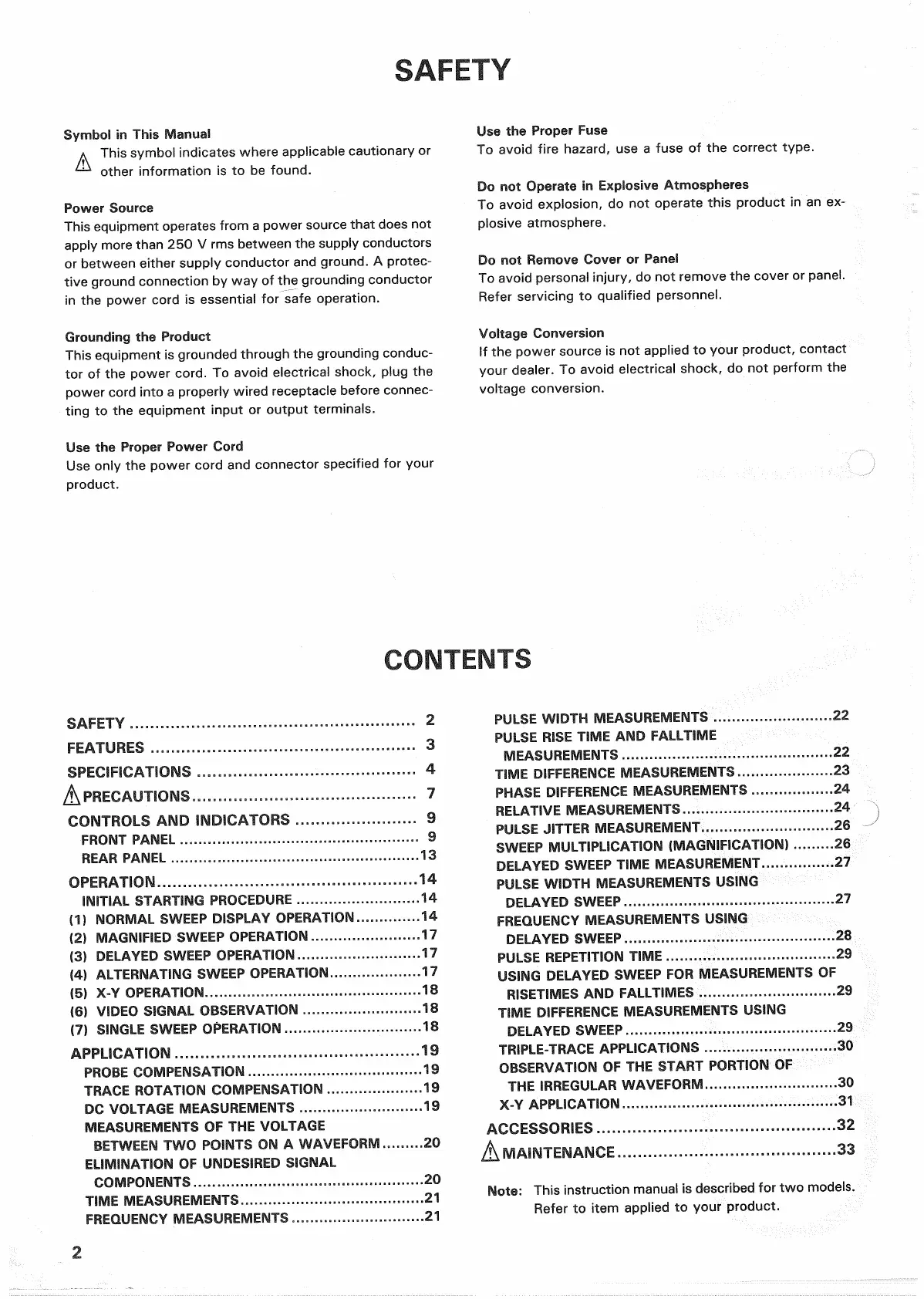

SAFETY
Symbol in This Manual
A This symbol indicates where applicable cautionary or
^ other information is to be found.
Power Source
This equipment operates from a power source that does not
apply more than 250 V rms between the supply conductors
or between either supply conductor and ground. A protec-
tive ground connection by way of the grounding conductor
in the power cord is essential for safe operation.
Grounding the Product
This equipment is grounded through the grounding conduc-
tor of the power cord. To avoid electrical shock, plug the
power cord into a properly wired receptacle before connec-
ting to the equipment input or output terminals.
Use the Proper Power Cord
Use only the power cord and connector specified for your
product.
Use the Proper Fuse
To avoid fire hazard, use a fuse of the correct type.
Do not Operate in Explosive Atmospheres
To avoid explosion, do not operate this product in an ex-
plosive atmosphere.
Do not Remove Cover or Panel
To avoid personal injury, do not remove the cover or panel.
Refer servicing to qualified personnel.
Voltage Conversion
If the power source is not applied to your product, contact
your dealer. To avoid electrical shock, do not perform the
voltage conversion.
CONTENTS
SAFETY 2
FEATURES 3
SPECIFICATIONS 4
A PRECAUTIONS 7
CONTROLS AND INDICATORS 9
FRONT PANEL 9
REAR PANEL ...13
OPERATION 14
INITIAL STARTING PROCEDURE 14
(1) NORMAL SWEEP DISPLAY OPERATION ...14
(2) MAGNIFIED SWEEP OPERATION... 17
(3) DELAYED SWEEP OPERATION 17
(4) ALTERNATING SWEEP OPERATION 17
(5) X-Y OPERATION .-18
(6) VIDEO SIGNAL OBSERVATION 18
(7) SINGLE SWEEP OPERATION 18
APPLICATION ..19
PROBE COMPENSATION 19
TRACE ROTATION COMPENSATION 19
DC VOLTAGE MEASUREMENTS 19
MEASUREMENTS OF THE VOLTAGE
BETWEEN TWO POINTS ON A WAVEFORM.... 20
ELIMINATION OF UNDESIRED SIGNAL
COMPONENTS 20
TIME MEASUREMENTS 21
FREQUENCY MEASUREMENTS .........21
PULSE WIDTH MEASUREMENTS .22
PULSE RISE TIME AND FALLTIME
MEASUREMENTS 22
TIME DIFFERENCE MEASUREMENTS 23
PHASE DIFFERENCE MEASUREMENTS 24
RELATIVE MEASUREMENTS 24
PULSE JITTER MEASUREMENT 26
SWEEP MULTIPLICATION (MAGNIFICATION) 26
DELAYED SWEEP TIME MEASUREMENT 27
PULSE WIDTH MEASUREMENTS USING
DELAYED SWEEP... 27
FREQUENCY MEASUREMENTS USING
DELAYED SWEEP ..28
PULSE REPETITION TIME .29
USING DELAYED SWEEP FOR MEASUREMENTS OF
RISETIMES AND FALLTIMES 29
TIME DIFFERENCE MEASUREMENTS USING
DELAYED SWEEP 29
TRIPLE-TRACE APPLICATIONS 30
OBSERVATION OF THE START PORTION OF
THE IRREGULAR WAVEFORM 30
X-Y APPLICATION 31
ACCESSORIES 32
A MAINTENANCE 33
Note: This instruction manual is described for two models.
Refer to item applied to your product.
2
