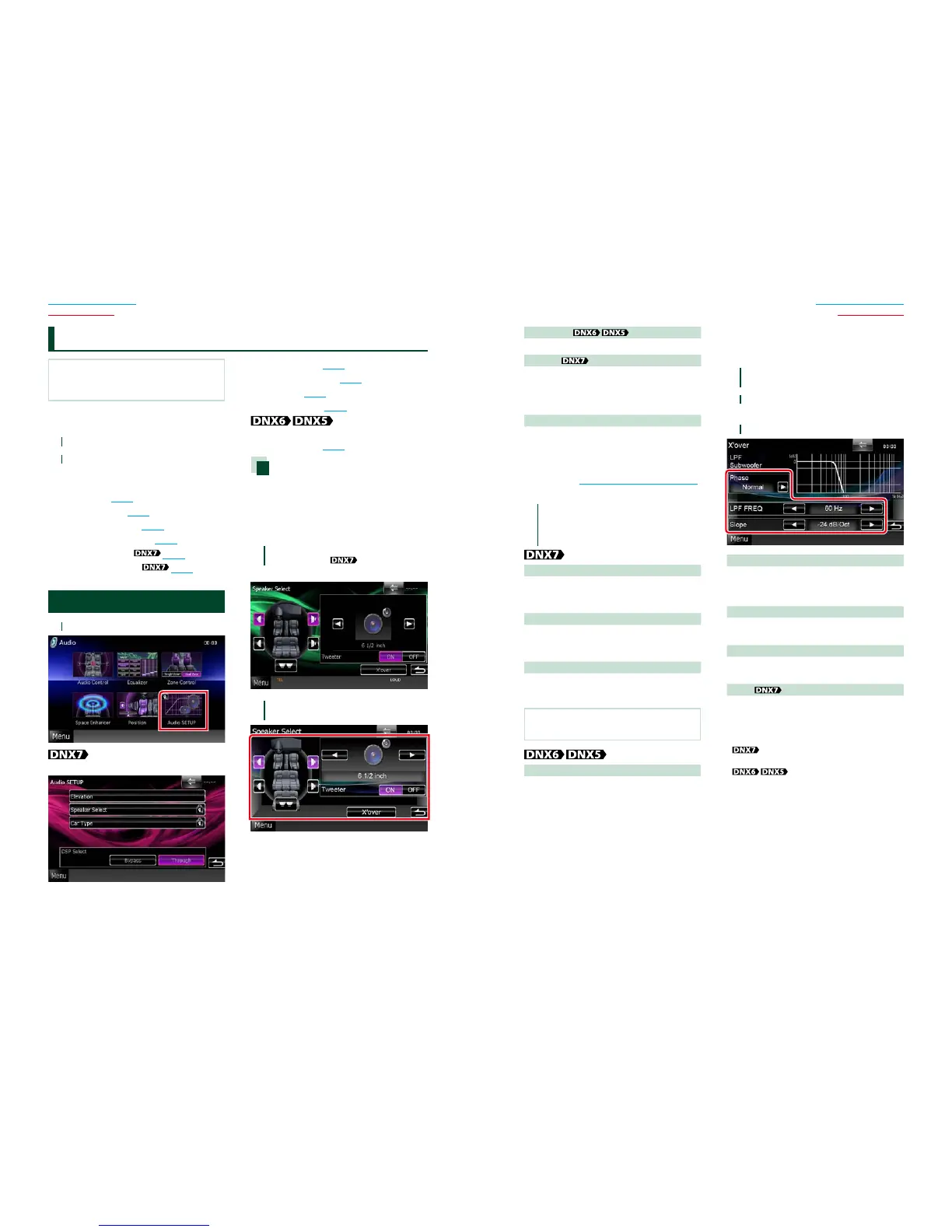

Audio Setting Up
Return to the Top page
Audio Setting Up
NOTE
• Each operation in this section can be started from
the multi function menu.
Youcanadjustthevarioussettingssuchas
audiobalanceorsubwooferlevel.
1
Touch [Menu] on any screen.
2
Touch [Audio].
Audio screen appears.
See the following section for each setting.
• Setting audio (P.90)
• Controlling audio (P.94)
• Controlling equalizer (P.95)
• Performing zone control (P.97)
• Set space enhancer
(P.97)
• Set listening position
(P.98)
Setting Audio
1
Touch [Audio SETUP].
Audio SETUP screen appears.
See the following section for each setting.
• Set up speakers (P.90)
• Set up your car type (P.92)
• Select DSP (P.93)
• Set up elevation (P.93)
Speaker Select screen appears.
• Set up speakers (P.90)
Speaker setup
Youcanselectaspeakertypeanditssizeto
getthebestsoundeffects.
Whenthespeakertypeandsizeareset,
thespeakercrossovernetworkisset
automatically.
1
Touch [Speaker Select] in the Audio
SETUP screen.
Speaker Select screen appears.
2
Touch the speaker you wish to adjust
and set each item as follows.
Controlling Audio
Subwoofer
Select if you are using a subwoofer.
Tweeter
You can set the tweeter when you are
selecting front speakers.
If you are using a tweeter together with the
front speakers, set the tweeter to “ON”.
X’over
Displays the speaker crossover setup screen.
You can adjust the crossover setup that was set
automatically when you selected the speaker
type.
For details, see Crossover network setup (P.91)
3
Select a speaker size using [2] and
[3]. The speaker size is different
depending on the speaker type and
the unit.
Front
OEM, 4 inch, 5 inch, 6-1/2 inch, 6-3/4 inch,
4-3/4 inch, 3-1/2 inch, 7 inch, 4x6, 5x7, 6x8,
6x9, 7x10
Rear
None, OEM, 4 inch, 5 inch, 6-1/2 inch, 6-3/4
inch, 4-3/4 inch, 3-1/2 inch, 7 inch, 4x6, 5x7,
6x8, 6x9, 7x10
Subwoofer
None, 6 1/2 inch, 8 inch, 10 inch, 12 inch, 15
inch over
NOTE
• Select “None” if you have no speakers.
Front
Standard, Wide, Middle, Narrow
Crossover network setup
Youcansetacrossoverfrequencyof
speakers.
1
Touch the speaker to set the crossover
in the Speaker Select screen.
2
Touch [X’over].
X’over screen appears.
3
Set each item as follows.
Phase*
Sets the phase of subwoofer output.
The phase is reversed 180 degrees when set to
“Reverse”.
HPF FREQ
High Pass Filter adjustment. (When front or rear
speaker is selected on Speaker Select screen)
LPF FREQ
Low Pass Filter adjustment. (When subwoofer
is selected on Speaker Select screen)
Slope
Sets a crossover slope.
*Thisfunctionisavailableinthespecific
situation.
Onlywhen“Subwoofer”issetto
“ON”in“SpeakerSetup”.
 Onlywhen“Subwoofer”is
setto“ON”in“SpeakerSetup”and“LPF
FREQ”issettootherthan“Through”.
