Kenwood TK-762 User Manual

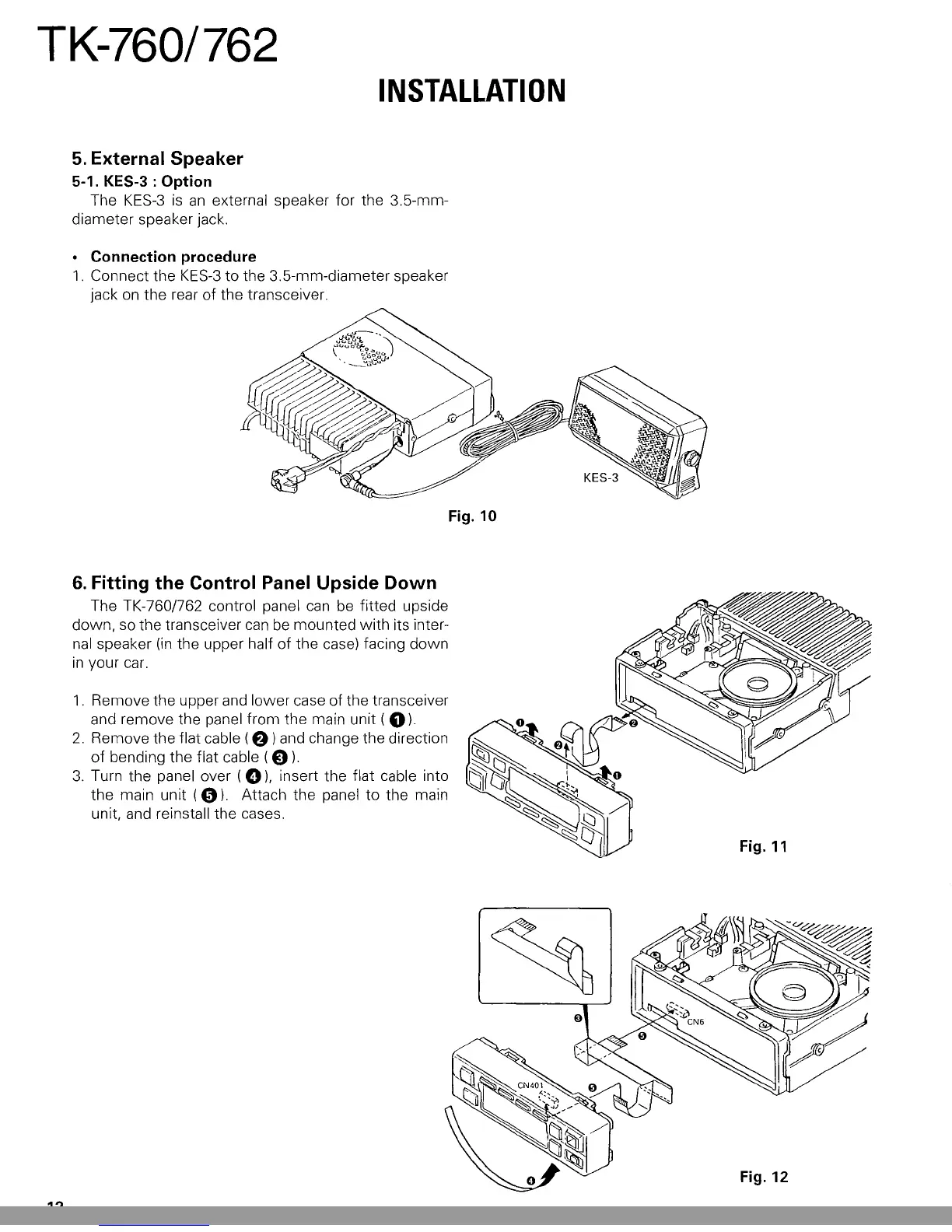

TK-760/762
INSTALLATION
5. External Speaker
5-1. KES-3 : Option
The KES-3 is an external speaker for the 3.5-mm-
diameter speaker jack.
• Connection procedure
1. Connect the KES-3 to the 3.5-mm-diameter speaker
jack
on the rear of the transceiver.
Fig. 10
6. Fitting the Control Panel Upside Down
The TK-760/762 control panel can be fitted upside
down, so the transceiver
can be mounted with its inter-
nal speaker (in the upper half of the case) facing down
in your car.
1. Remove the upper and lower case of the transceiver
and remove the panel from the main unit (
0).
2. Remove the flat cable (f) )and change the direction
of bending the flat cable (e ).
3. Turn the panel over ( 0). insert the flat cable into
the main unit
(0). Attach the panel to the main
unit, and reinstall the cases.
12
Fig. 11
Fig. 12
