Kenwood TK-8102 Service Manual

TK-8102
15

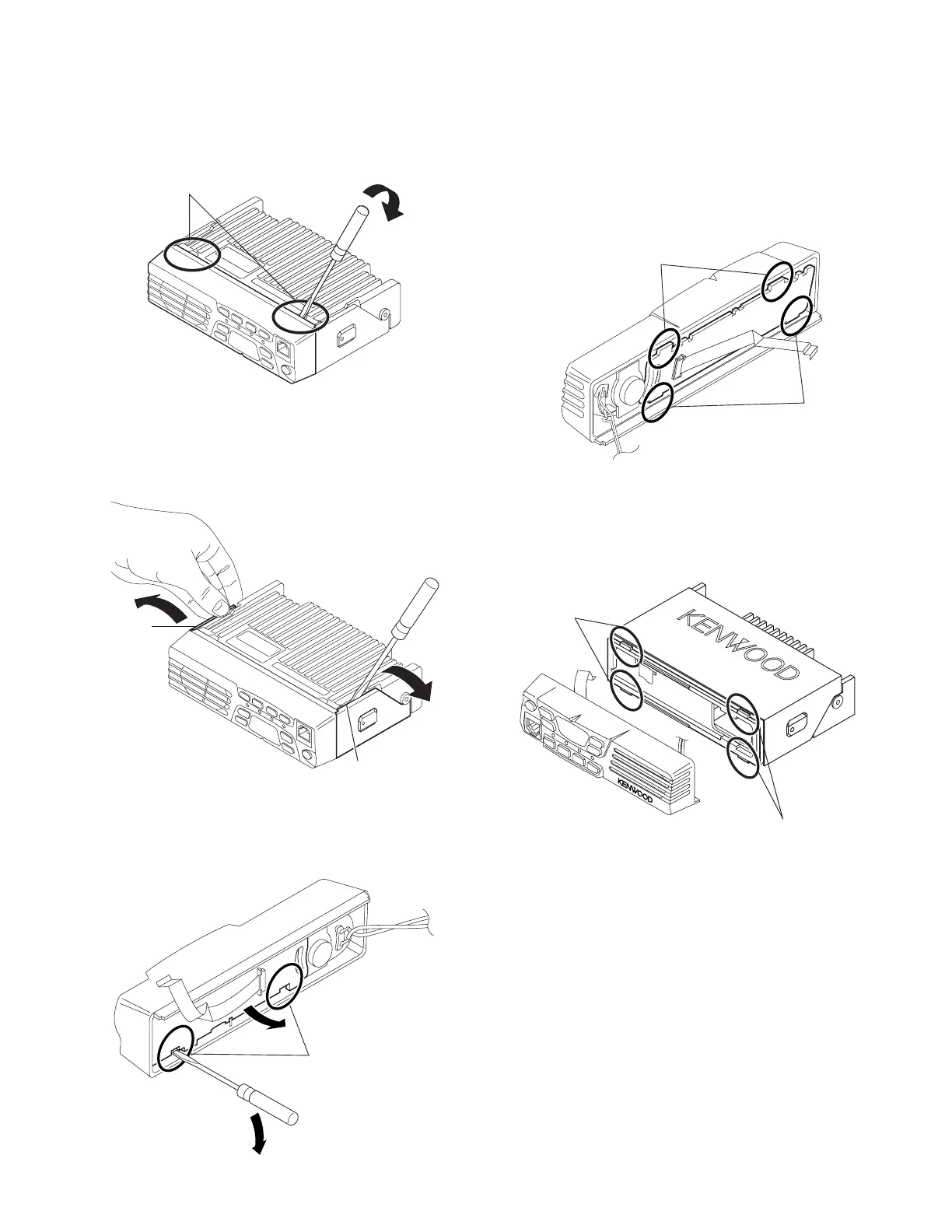

DISASSEMBLY FOR REPAIR
1. When you remove the panel, turn the transceiver up side
down. Detach the panel by lifting the tabs as shown be-
low.
Fig. 1
Fig. 2
2. To remove the cabinet, first turn the transceiver up side
down. Detach the cabinet by prying the tabs as shown
below.
3. To remove the display unit PCB, detach the PCB by lifting
at the indents of the PCB as shown below.
Fig. 3
Tabs
Tabs
Tabs
Indents
Fig. 5
5. When mounting the front panel, match the 4 tabs of the
chassis with the panel, being sure they attach securely.
Tabs
Tabs
4. Mount the display unit
To mount the display unit on the panel, follow the correct
procedures shown to ensure easy display unit assembly
and good fitting onto the panel.
q Snap in bottom of display unit first.
w Snap in top of displaly unit.
q
w
Fig. 4

Kenwood TK-8102 Specifications

Frequency and Channels

frequency range M	450 to 490MHz
frequency range M2	485 to 520MHz
frequency range M3	400 to 430MHz
number of channels	4 channels
channel spacing wide	25kHz
channel spacing narrow	12.5kHz
PLL channel stepping	5, 6.25kHz

Power

operating voltage	13.6V DC ±15%
current drain standby	Less than 0.4A
current drain receive	Less than 1.0A
current drain transmit	Less than 8.0A

Operating Environment

operating temperature range	–30°C to +60°C
dimensions	160 (W) x 43 (H) x 107 (D) mm
weight	Approx 1.0kg

Receiver Specifications

sensitivity 12dB SINAD wide	0.28µV
sensitivity 12dB SINAD narrow	0.35µV
selectivity wide	75dB
selectivity narrow	65dB
intermodulation wide	70dB
intermodulation narrow	60dB
spurious response	75dB
audio power output	4.0W
frequency stability	±2.5ppm

Transmitter Specifications

RF power output	25W
spurious and harmonics	70dB
modulation wide	16K0F3E
modulation narrow	11K0F3E
FM noise wide	45dB
FM noise narrow	40dB
audio distortion	Less than 3%
frequency stability	±2.5ppm
