TK-8102
4
OPERATING FEATURES
Indicator Description
Light while transmitting.
Lights when a signal is detected on
the currently selected channel.
Lights while the function programmed
onto its corresponding key is activated.
Lights while the function programmed
onto its corresponding key is activated.
Lights to display the currently selected
channel (1~ 4).
1-5. Rear panel
External
speaker
jack
Power input
connector
Antenna
connector

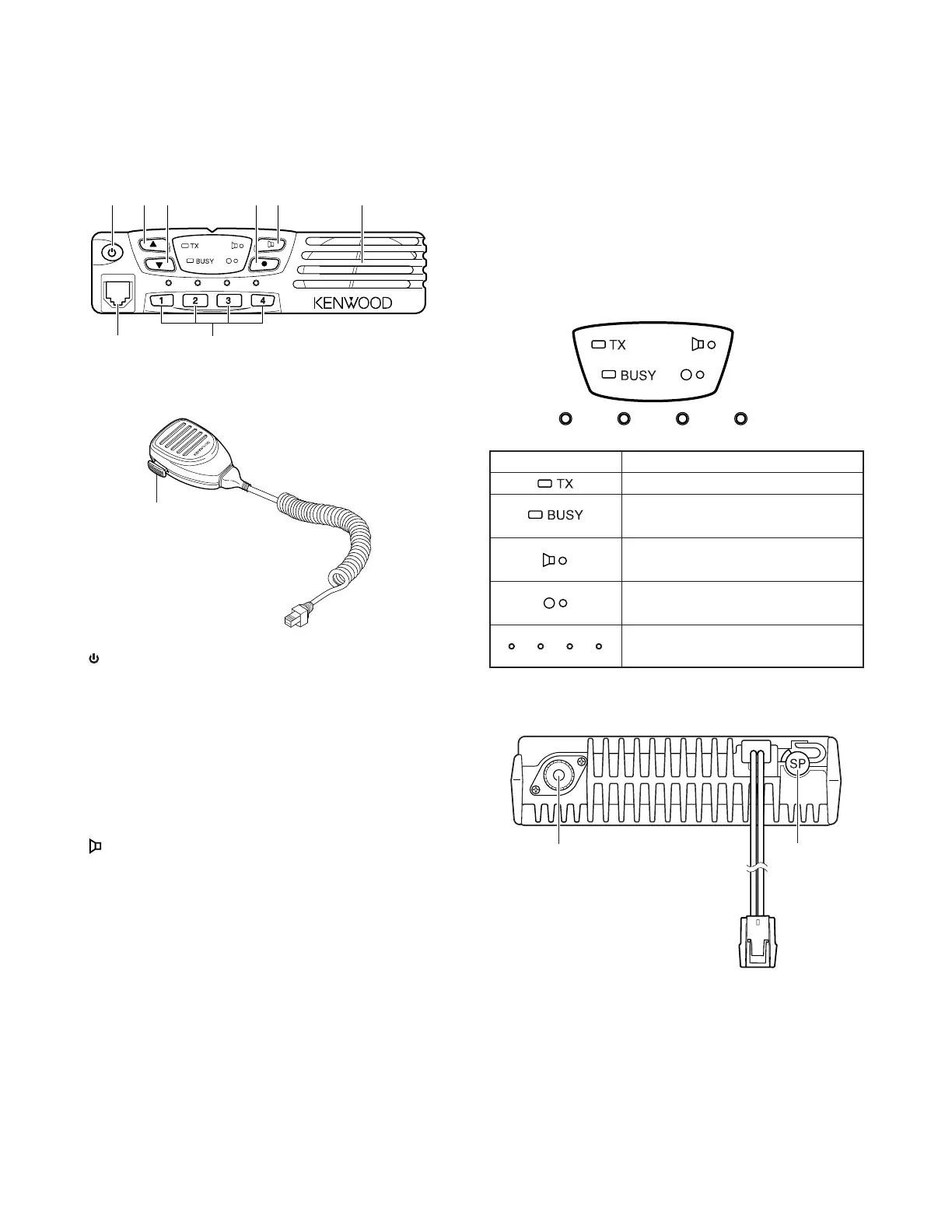

1. Controls and Functions
1-1. Front Panel
q
(Power) switch
Press to switch the transceiver ON. Press and hold for
approximately 1 seconds to switch the transceiver OFF.
w ▲ key
Press to increase the volume level.
e ▼ key
Press to decrease the volume level.
r ● key
PF (Programmable Function) key. The default setting of
this key is None (no function). The programmable func-
tions available for this key are listed below.
t
key
PF (Programmable Function) key. The default setting of
this key is Monitor. Other programmable functions avail-
able for this key are listed below.
y 1/ 2/ 3/ 4 keys
Press to select a channel from 1 to 4.
u Microphone jack
Insert the microphone plug into this jack (the microphone
is an optional accessory).
i Speaker
Internal speaker.
o PTT switch
Press this switch, then speak into the microphone to call a
station.
1-2. Microphone
q
we tr
y
u
i
o
1-3. Auxiliary Programmable Functions
• Emergency • Scan On/OFF
• Key Lock • Talk Around
• Monitor • Temporary Delete
• None (no function) • AUX
• Horn Alert • Scan + Temporary Delete
1-4. Display
To Next Page
