39DESCRIPTION OF OPERATING SYSTEM
To avoid personal injury:
When disassembling, assem-
bling or cleaning the PTO sy-
stem, make sure that to stop
all rotating parts and the en-
gine before disengaging the
PTO.
•
CAUTION
For high load work, select the 1st
gear (540) position and set the en-
gine speed to 2500 RPM to obtain
540 RPM of the PTO speed.
Also, for light load work, select the
2nd gear (540E) position and set the
engine speed to 1800 RPM to obtain
540 RPM of the PTO speed.

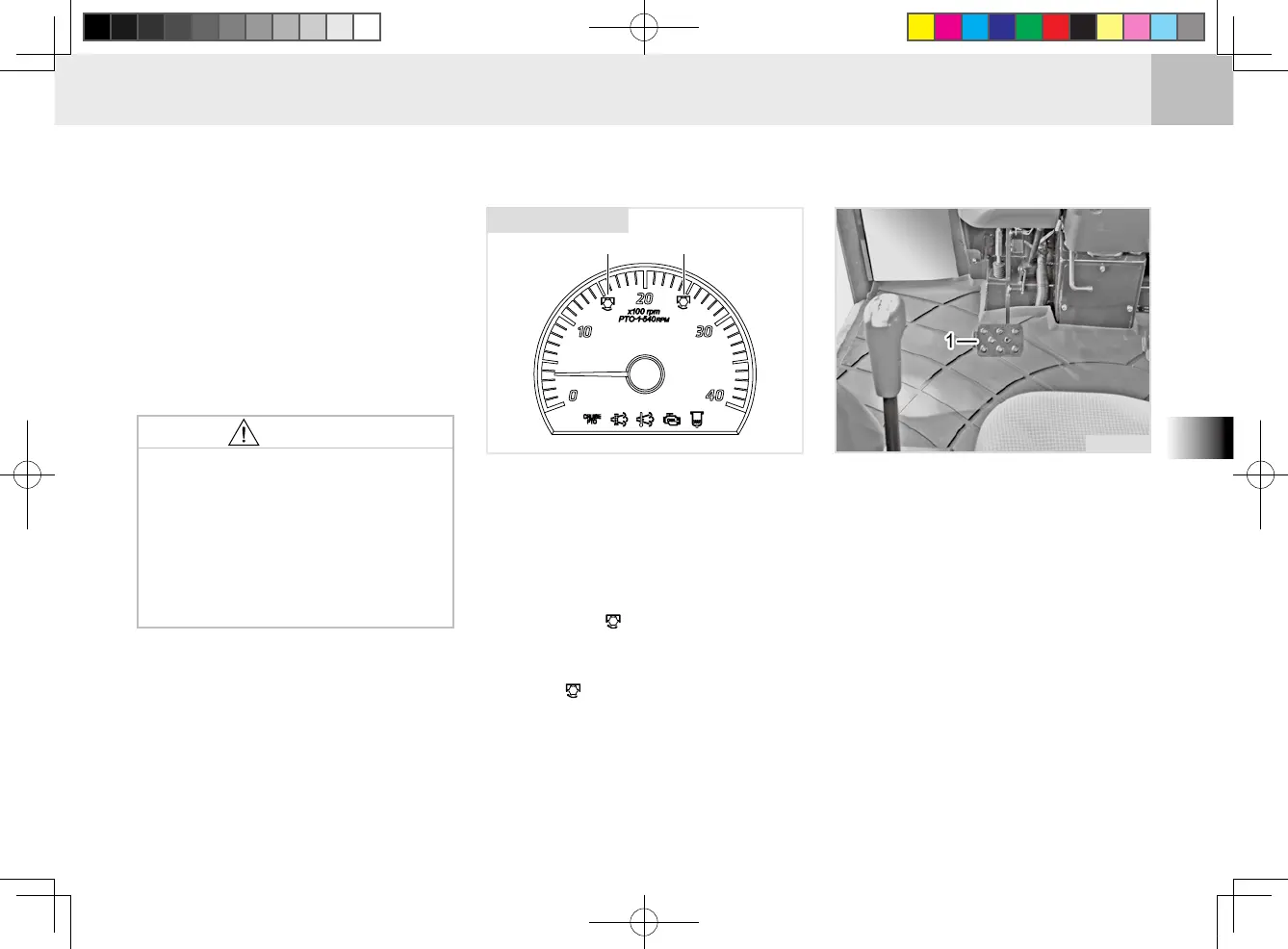

ECO PTO
TE1O4C5A
(1) 540 Eco rpm (2) 540 rpm
The PTO speed can be selected as
desired according to the working
condition.
The speed 2( ) corresponds to the
engine speed for the mid range load
to achieve 540 PTO RPM while the
speed 1( ) corresponds to the en-
gine speed for the light range load
to achieve 540 PTO RPM. Set the
engine speed around this mark for
efcient and rapid work.
TE1O436A
CLUTCH PEDAL
(1) Clutch Pedal
Make sure to depress the clutch
pedal to its end. To start off smoothly,
put the main and range shift levers
into the proper positions and release
the clutch pedal slowly.
EU/AU-MANUAL
TE120(NX4510,5010,5510)CABIN,ROP39 39 2015-04-23 오후 4:25:52
