The position control lever is used to
keep the plowing depth constant dur-
ing work.
The implement attached to the lifting
arm can be lowered by pushing the
lever while the implement is raised
by pulling the lever.
In order to limit the lowering height of
implements, use the lock bolt (2) to
limit the operating range of the lever.
For detailed information, refer to "Ini-
tial Operation" in Chapter 5.
(1) Lower Link
(A) Lowering (B) Lifting
TE1O477A

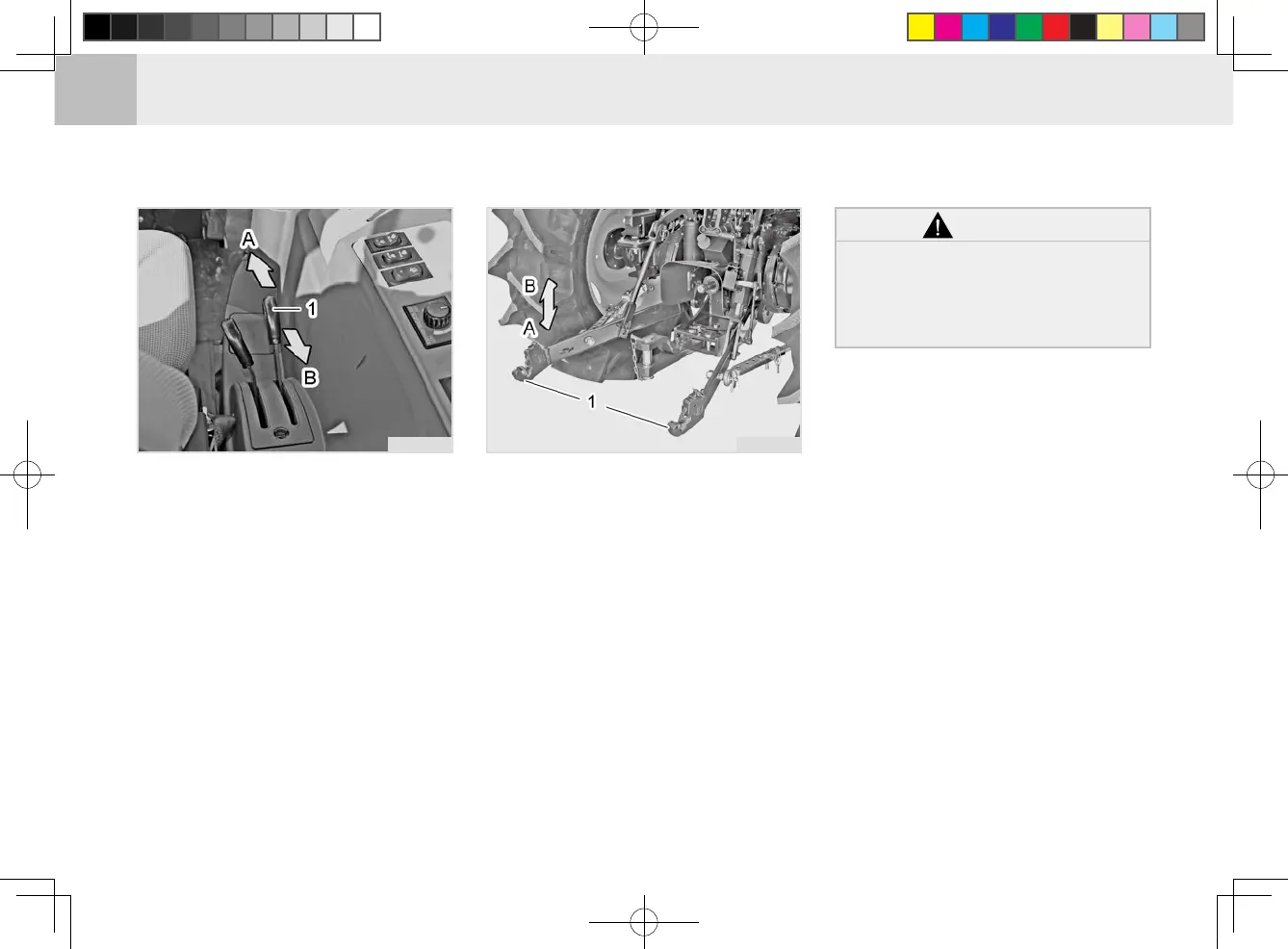

POSITION CONTROL LEVER
(1) Position Control Lever (2) Lock Bolt
TE1O442A
Make sure that there is no-
body or not obstacle around
the three-point linkage before
controlling position lever.
•
WARNING
To Next Page
