TP-6907 5/1614 Section 1 Specifications
1.7 Service Views
1. Fan fuses
2. Air cleaner
3. Oil check (dipstick)
4. Oil fill location (on valve cover)
5. Throttle body
6. Air-fuel mixer
7. See cooling system detail
8. Exhaust outlet
9. Enclosure locking key (shipping location only)
10. Spark plugs (qty. 4)
11. Fuel pressure regulator
12. Engine ECM
13. Fuel inlet (1 in. NPT)
14. Fuel solenoid valves (qty. 2) or dual-solenoid fuel valve
15. Lube oil filter
16. Customer load lead access
17. Customer connection access panel
18. Line circuit breaker
19. Generator set master control buttons (on RDC2 controller)
20. Nameplate location
21. RDC2 controller
22. Cooling air inlet (remove this panel to access coolant drain)
23. Access to coolant fill
24. Battery
25. Oil Drain
26. Coolant drain
27. Fans (qty. 3)
28. Radiator
29. Pressure cap (engine coolant fill)
30. Coolant overflow tube
31. Coolant overflow bottle
10
ADV-8641
18
21
2
19
28
14
13
22
20
15
16
17
7
12
3 5
24
Cooling System Detail
27
27
30
29
26
31
8
1
23
9
SERVICE SIDE
NON-SERVICE SIDE
GM90230
1 4 6
11
25

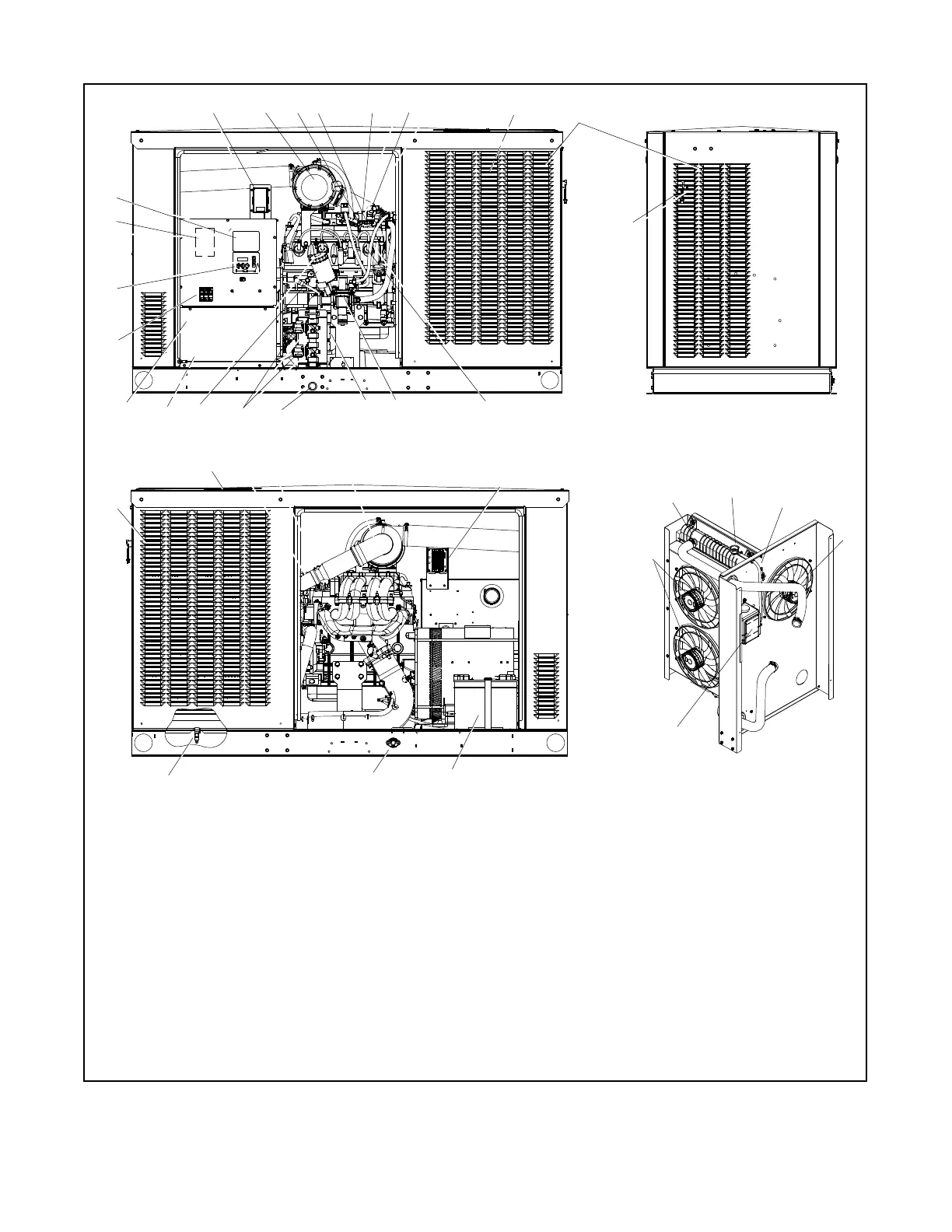

Figure 1-1 24RCL Service Views
