TP-6811 7/1620 Section 2 Scheduled Maintenance
d. Install the new oil filter following the instructions
provided with the filter.
3. Fill with oil. See Figure 2-1 for oil selection and
Figure 2-3 for o il capacity.
Model Oil Capacity, L (qt.)
38/48/60RCL and 48RCLA
4.7 (5.0)
Figure 2-3 Oil Capacity
4. Check for leaks.
a. Press the OFF button on the RDC2 generator
set controller.
b. Reconnect the generator set engine starting
battery, negative (--) lead last.
c. Reconnect the power for the battery charger.
d. Start the generator set and check for leaks
around the o il filter.
e. Stop the generator set and tighten the oil filter to
stop any leaks.
f. Reinstall the housing side panel.
5. Stop the generator set. Check the oil level. Add
oil, as necessary, to bring the level up to the Full
mark.
Note: Too high an oil level causes high oil
consumption and engine carbonizing. Too
low a level damages the engine.
6. Reset the maintenance timer on the RDC2.
a. In the Overview menu, step down to the Next
Maintenance screen.
b. Press the Select button.
c. Press the Up arrow button so that Reset Maint
Timer? Yes is displayed.
d. Press the Select button. The next maintenance
interval and date will be displayed.
2.4 Air Cleaner
Risk of fire.
Can cause severe injury or death.
Do not smoke or permit flames or
sparks near fuels or the fuel system.
WARNING
Servicing the air cleaner. A sudden backfire can cause
severe injury or death. Do not operate the generator set with
the air cleaner removed.
At the interval specified in the service schedule, inspect
and clean or replace the air cleaner element. Clean the
element more frequently in dirty, dusty conditions.
Check the element for accumulated oil or dirt that could
cause poor performance. Replace a damaged air
cleaner element. Follow the procedure described
below.
Air Cleaner Service Procedure
A dry-type air cleaner silences and filters the intake air.
The air intake silencer assembly connects to the intake
manifold via a rubber hose. Refer to Figure 2-4 during
this procedure.
A--273699
48RCL
A--253104
38RCL
48RCLA, 60RCL
GM90280

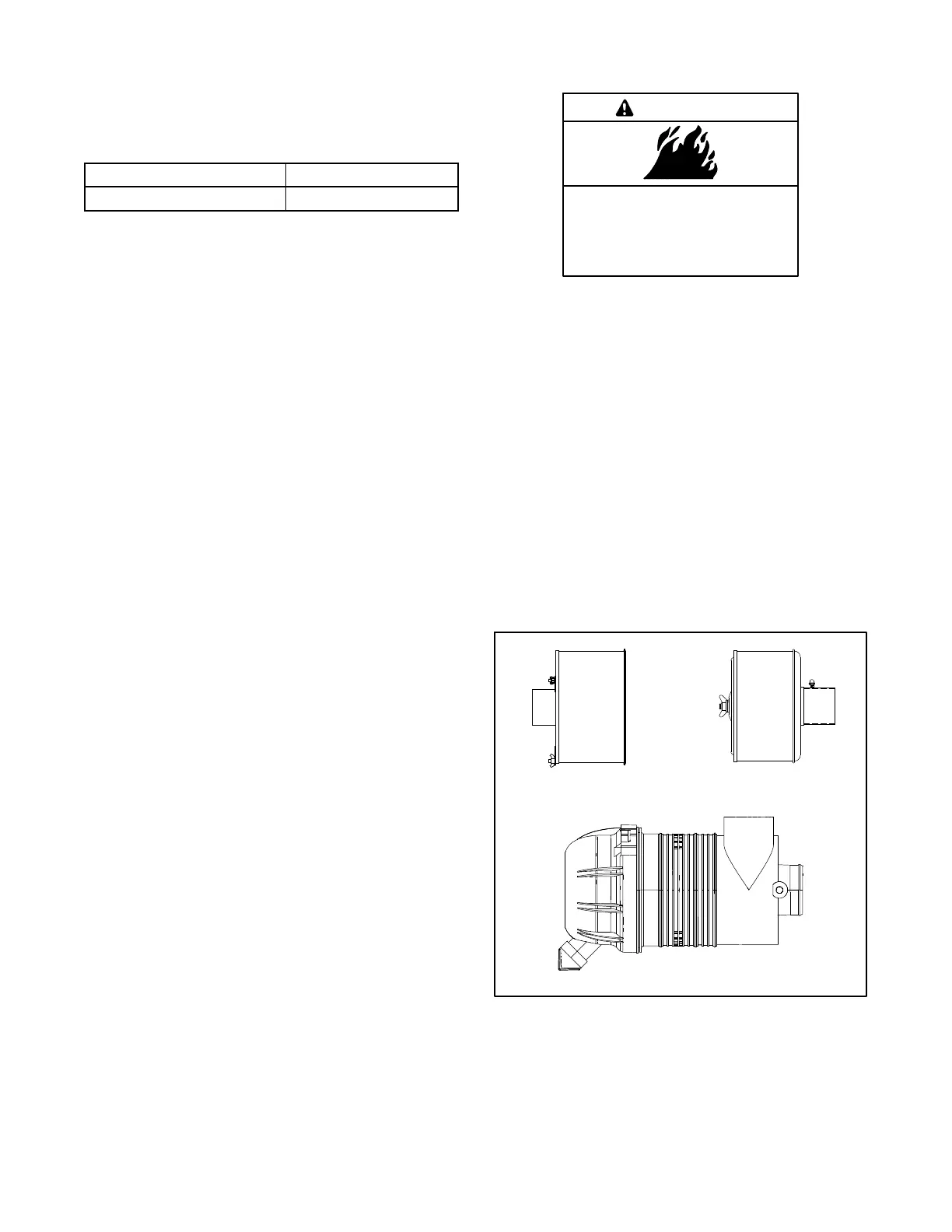

Figure 2-4 Air Cleaners
