TP-6811 7/1690 Section 7 Disassembly/Reassembly
7.3 Enclosure
See Figure 7-1 or Figure 7-2 for an illustration of
enclosure parts. Remove enclosure panels as
necessary to access the alternator.
Note: When reassembling the enclosure, do not
over-tighten the screws into the aluminum
enclosure panels.
GM82895_A
1. Roof
2. Front panel
3. Exhaust mounting bracket
4. Silencer
5. Front panel
6. Key, latch opening
7. Door
8. End panel assembly
1
2
3
4
5
6
7
7
8
Note: Maximum torque for screws into aluminum
enclosure panels: 5.7 Nm (50 in. lbs.).

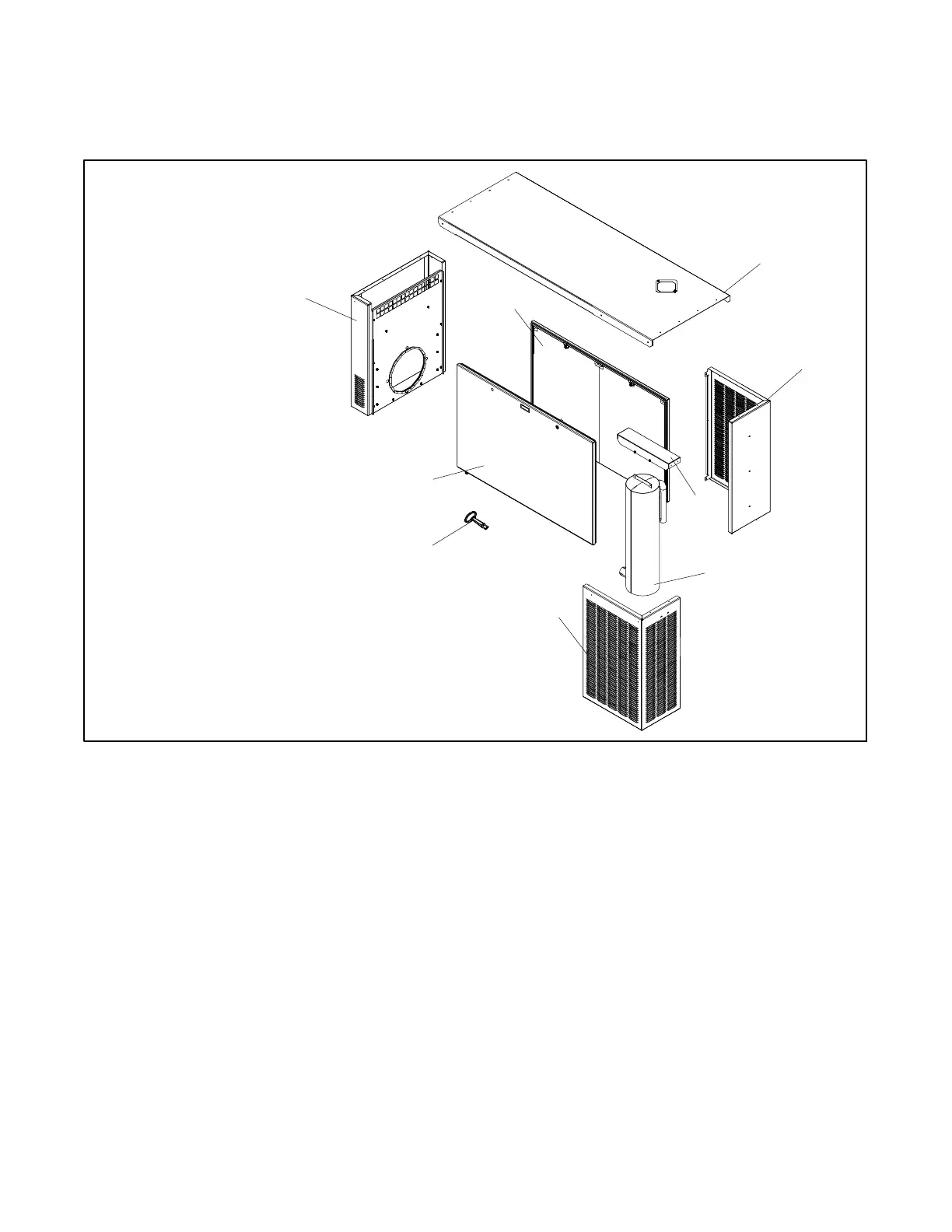

Figure 7-1 Enclosure, 48RCL specification number GM78521-GA1
