TP-6811 7/1692 Section 7 Disassembly/Reassembly
7.4 Connection Box
Remove the connection box before removing the
alternator. See Figure 7-3.
1. Remove the lower access panel.
2. Remove the controller mounting bolts, lift the
controller carefully, and disconnect harnesses to
the controller. Then remove the controller.
3. Remove the upper panel.
4. Label and disconnect the load leads to the circuit
breaker and other leads as necessary.
5. Remove four bolts at the base of the box and
carefully lift the box off the skid.

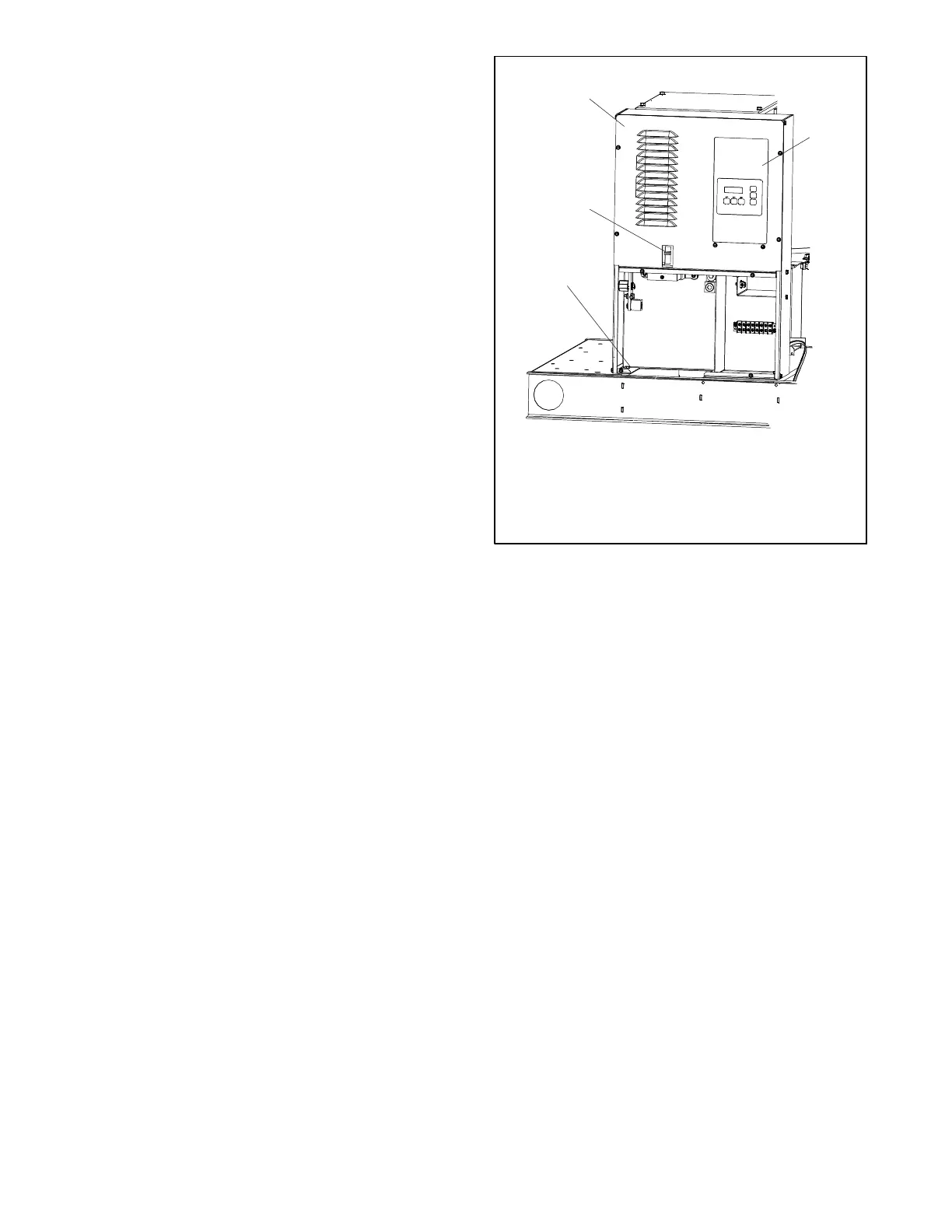

tp6809
1. Connection box
2. RDC2 controller
3. Mounting bolts, qty. 4
4. Circuit breaker
3
Lower access panel removed.
1
4
2
Figure 7-3 Connection box
