TP-6811 7/16 93Section 7 Disassembly/Reassembly
7.5 Other Components

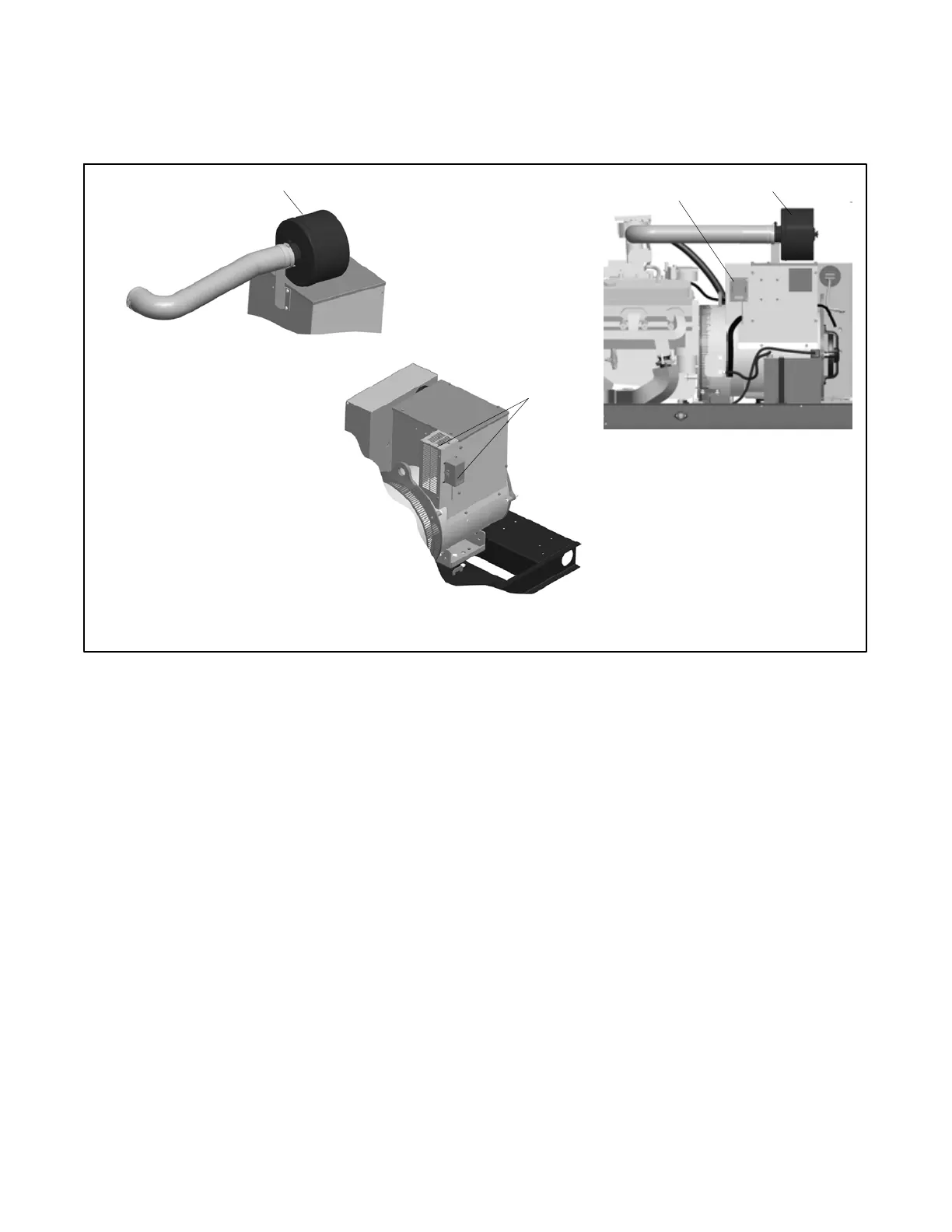

Figure 7-4 shows components mounted to the exterior
of the alternator junction box. Disconnect and remove
as needed before disassembling the alternator.
Note: The air cleaner is mounted above the engine on
some models.
GM78526
1
2
GM78527
1. Air cleaner assembly (some models have the air cleaner mounted above the engine). Disconnect and remove if necessary.
2. Cooling fan relay/fuse box and resistor. Disconnect as needed.
1
2
Figure 7-4 Components Mounted to Alternator Junction Box
