TP-6137 5/032 Section 1 Specifications

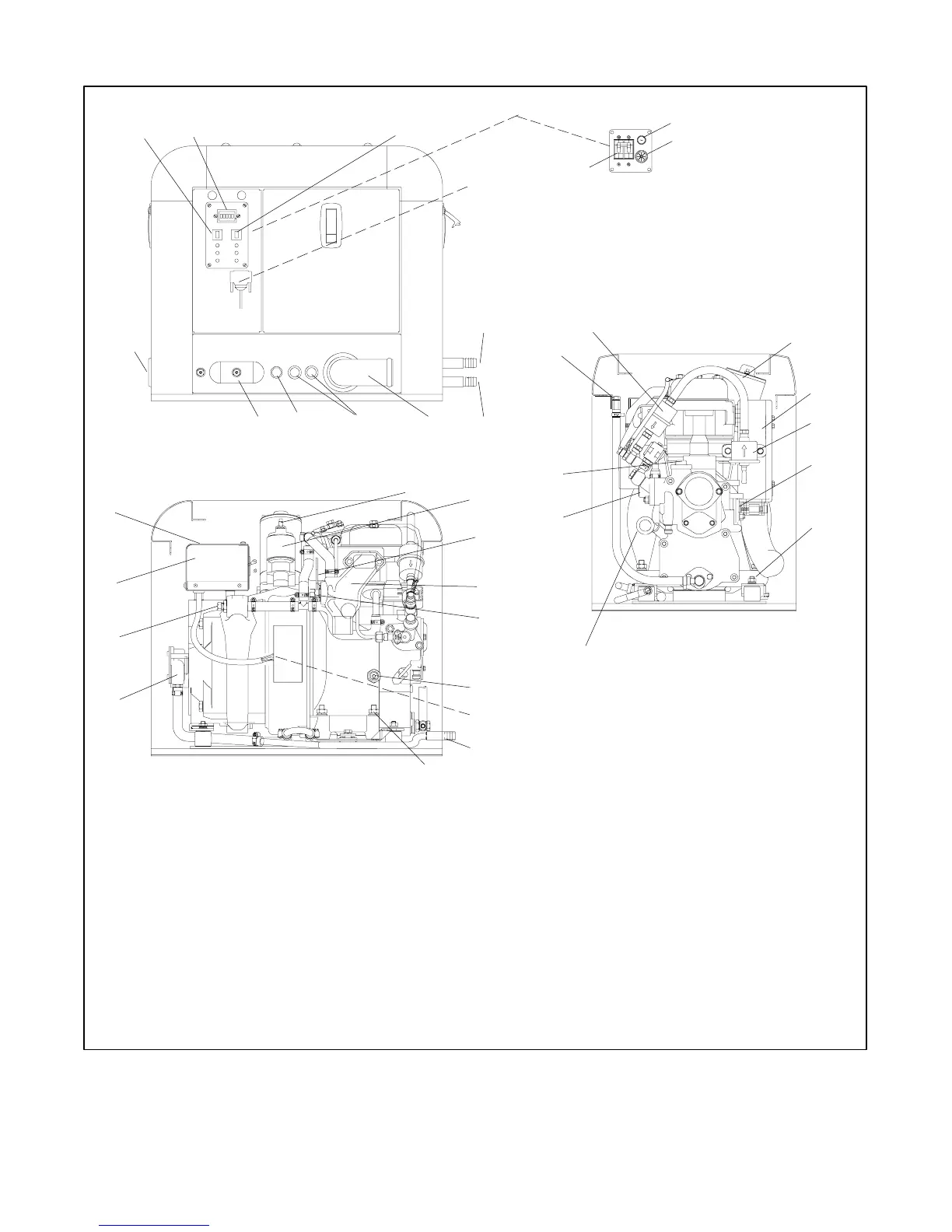

1.3 Service Views
1. Cooling air inlet
2. On/off button
3. Hourmeter
4. Start button
5. Circuit breaker panel
6. Remote panel connector
7. Fuel inlet
8. Fuel return
9. Water outlet/exhaust outlet
10. Siphon break connection
11. Customer load lead access
12. Remote panel harness access
13. AC circuit breaker
14. Input fuse
15. Customer load lead access connection
16. Fuel injection pump
17. Oil fill
18. Oil drain valve and hose
19. Fuel filter
20. High engine water temperature safety shutdown switch
21. Air cleaner
22. Fuel feed pump
23. Governor
24. Battery connection (--)
25. Oil check
26. Battery connection (+)
27. Starter solenoid/starter motor
28. Lifting eye
29. Mixing elbow
30. High exhaust temperature safety shutdown switch
31. Low oil pressure safety shutdown switch
32. Control panel connector
33. Seawater inlet
34. Ground lug (equipment ground)
35. Seawater pump (water inlet)
36. Anticorrosion zinc anode
37. Controller
38. Nameplate
ADV6652-
Service-Side View
Service-Side View
(Shown without sound shield doors and panels)
Engine-End View
1
23 4
6
7
89101112
13
14
15
18
19
21
24
25
26
28
32
37
36
22
38
35
5
Circuit Breaker Panel
33
27
29
30
31
34
16
17
20
23
Figure 1-1 Service Views
