LUBRICATION SYSTEM

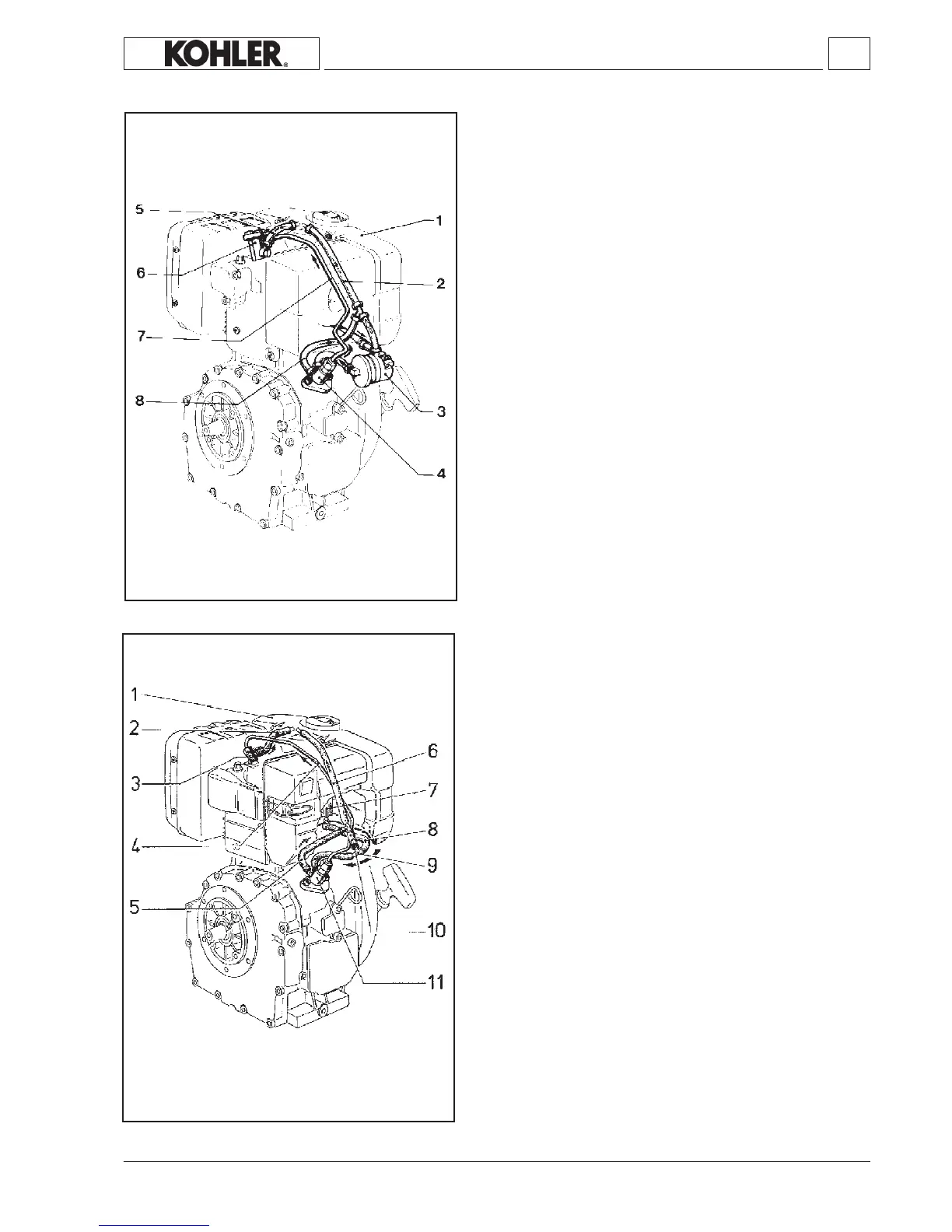

Components:
1 Tank
2 Returntube
3 Fuellter
4 Injectionpump
5 Injectorleak-offline
6Injector
7 Highpressureline
8Returntube
1 Tank
2 Injectorleak-offline
3 Injector
4 Highpressureline
5 Returntube
6 Returntube
7Dieselfuellter
8 Fuelpipe
9T-connector
10Reduction
11Injectionpump
KD 225_315_350_400_440 Workshop Manual_cod. ED0053029330_1° ed_ rev.00
Fuelling/injection circuit for KD 315-350-400-440
Fuelling/injection circuit for KD 225
