TP-5631 7/96 Specifications 1-3
Accessories
Several accessories are available to finalize the
installation, to add convenience to operation and
service, and to comply with state and local codes.
Accessories vary with each generator set model and
controller. Accessories are offered factory-installed
and/or shipped loose. Some accessories areavailable
only with the microprocessor controller. Contact your
local Kohler Dealer/Distributor to obtain the most
currentinformation. Accessoriesavailableatthetimeof
print of this publication are as follows:
Overvoltage Kit
(microprocessor controller)
The overvoltage circuit immediately shuts down the
engine when triggered by a DC signal from an
overvoltage shutdown option. The generator set
automaticallyshutsdownifoutputvoltageis15%above
nominal voltage longer than one second. The
overvoltageoption connects towire30in thecontroller.
See Figure 1-1.
G-291739

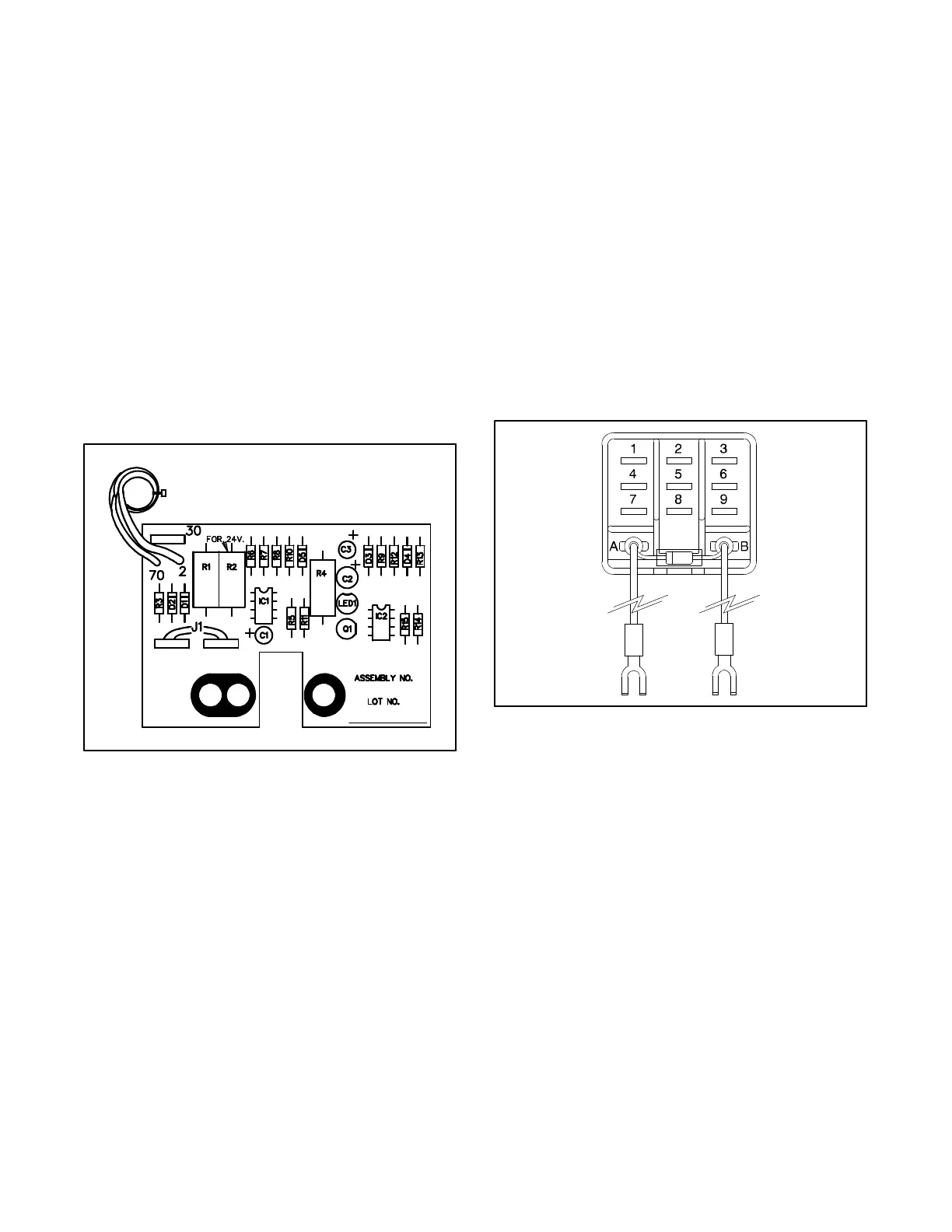

Figure 1-1. Overvoltage Kit
Run Relay Kit
The run relay kit is energized only when the generator
set is running. The three sets of contacts in the kit are
typically used to control air intake and/or radiator
louvers. However, alarms and other signalling devices
can also be connected to the contacts. Refer to the
accessory wiring diagram for correct connection of the
run relay kit. See Figure 1-2.
273705
Figure 1-2. Run Relay Kit
