TP-5631 7/96 Specifications 1-5
Audio-Visual (A/V) Alarm
(microprocessor controller)
An A/V alarm warns the operator of fault shutdowns and
pre-alarm conditions (except battery charger fault and
low battery voltage) from a remote location. A/V alarms
include alarm horn, alarm silence switch, and common
fault lamp. See Figure 1-4.
NOTE
Connect a maximum of three remote annunciators
and/or A/V alarms in any combination to the generator
set controller.
A-292887

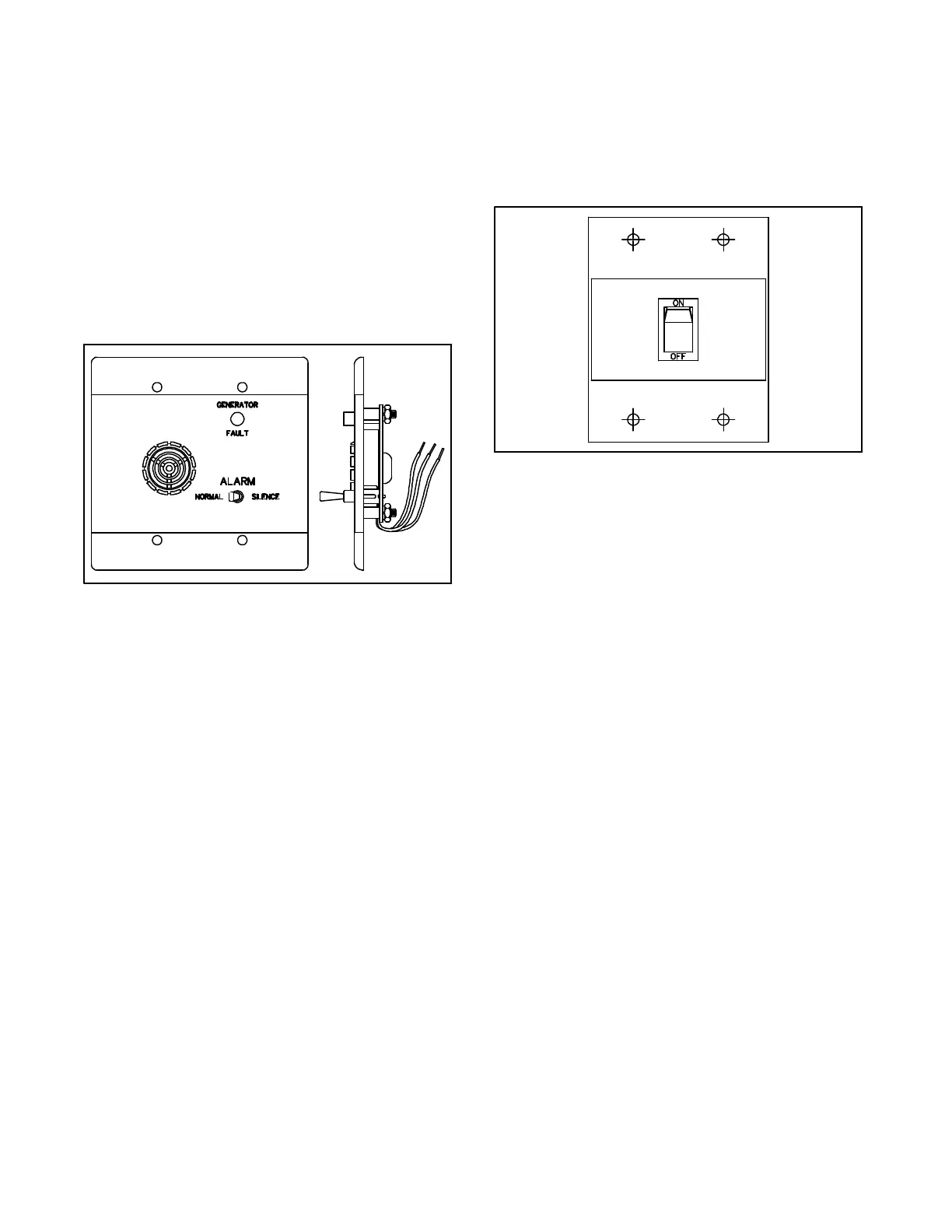

Figure 1-4. Audio-Visual Alarm
Line Circuit Breaker
Thelinecircuitbreakerinterruptsgeneratoroutputinthe
event of an overload or short circuit. Use the linecircuit
breaker to manually disconnect the generator set from
the load when servicing the generator set. See
Figure 1-5.
TP-5352-1
Figure 1-5. Line Circuit Breaker
