2-2 Operation TP-5631 7/96
Microprocessor Controller Operation
5-Light Microprocessor Controller
1
2
3
5
7
8
10
12
9
17
18
19 20 21
22
6
4
11
16
13
14
15
PHPH
A-225183A-K
1. Selector switch
2. Alarm silence switch
3. Lamp test
4. Overcrank
5. Generator master switch
6. Auxiliary light
7. Alarm horn
8. DC voltmeter
9. Voltage adjustment potentiometer
10. Oil pressure gauge
11. Engine water temperature gauge (not used on 6.5 kW)
12. Hourmeter
13. 15-amp engine and accessories fuse
14. 3-amp controller fuse
15. 3-amp remote annunciator fuse
16. Fuse location
17. Frequency meter
18. AC voltmeter
19. AC ammeter
20. Overspeed light
21. High engine temperature (not used on 6.5 kW)
22. Low oil pressure lamp

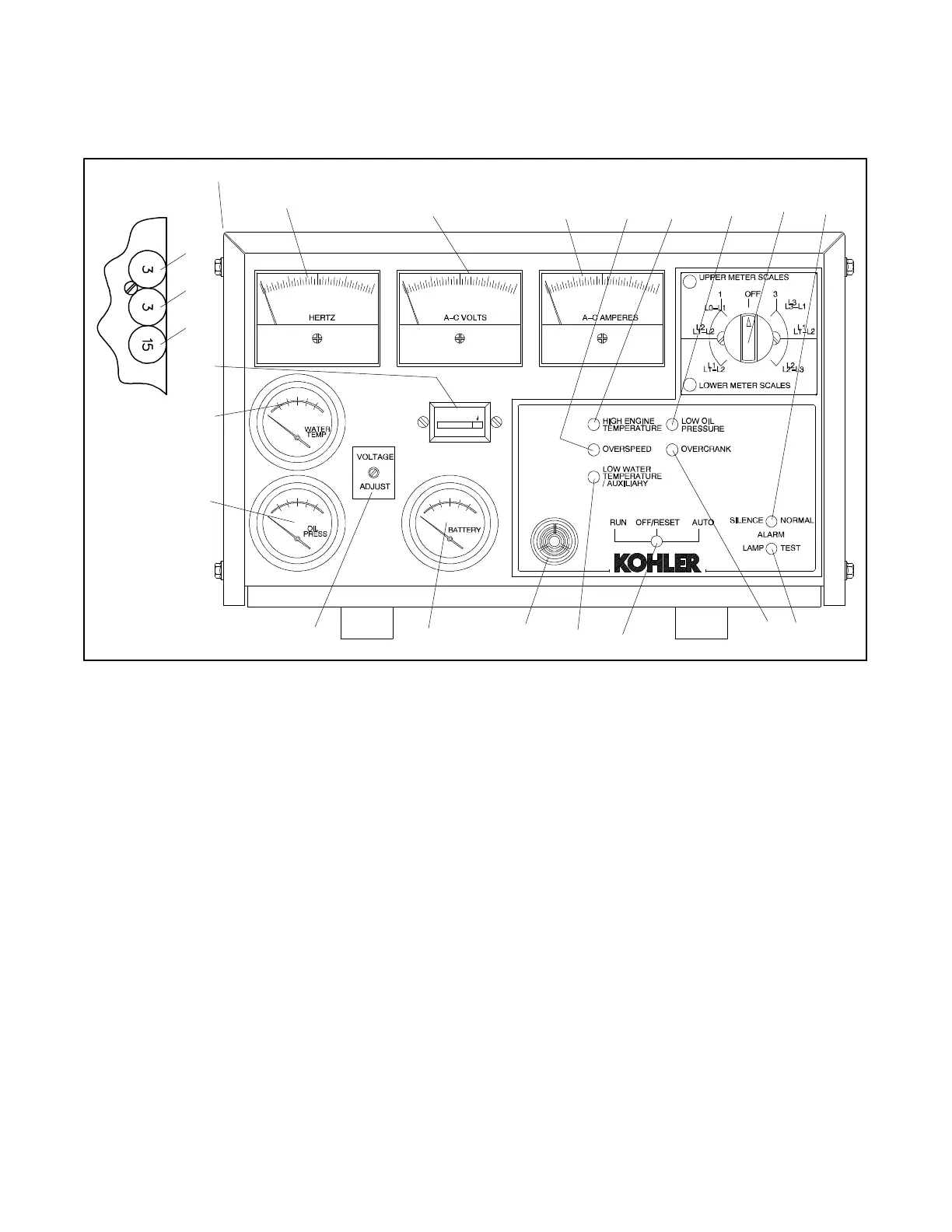

Figure 2-1. 5-Light Microprocessor Controller Features
