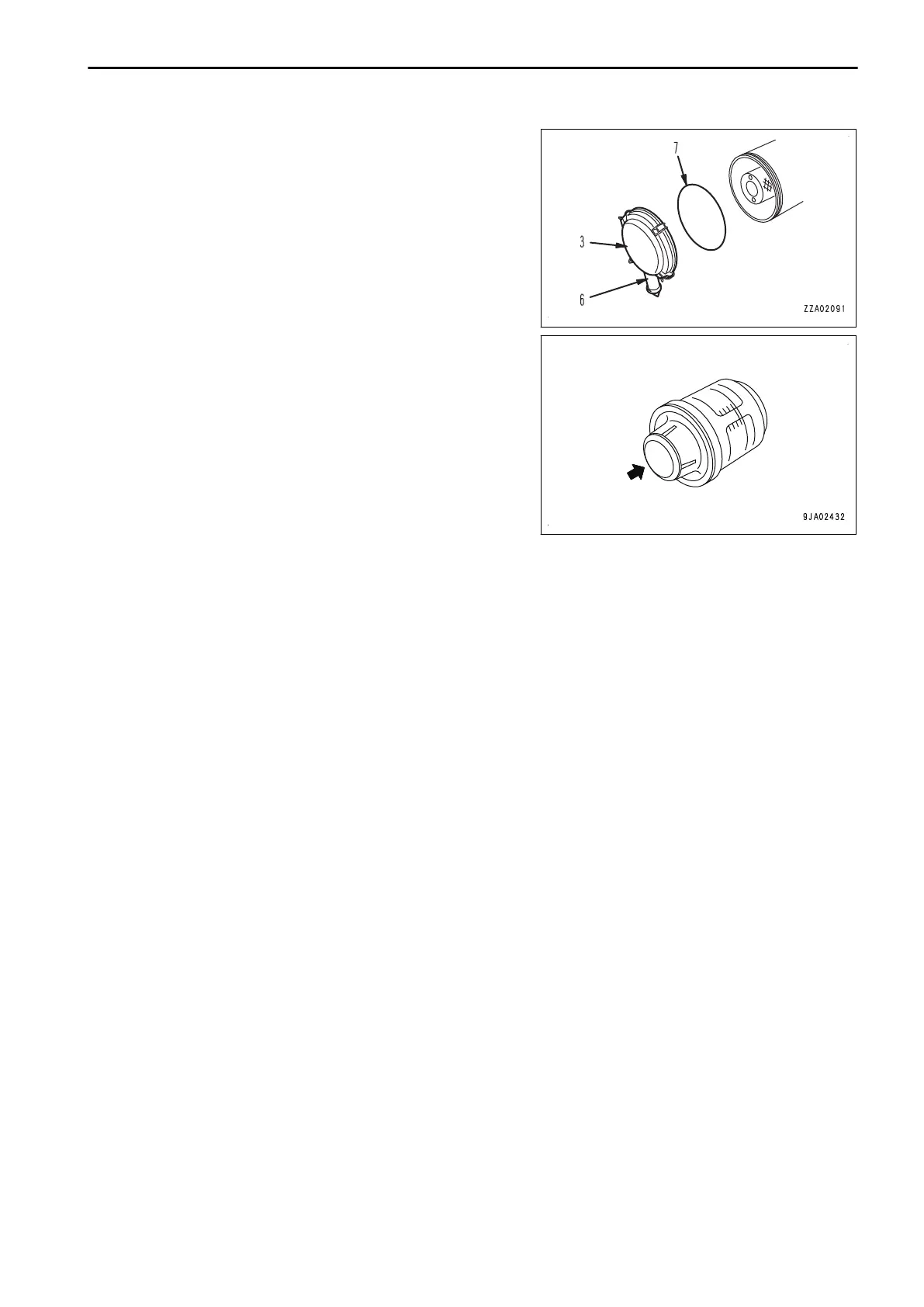

7.
Replace O-ring (7) of cover (3) with a new one.
8.
Set the arrow mark on cover (3) at the top, install to the air
cleaner body
, then secure with clip (2).
9.
Push the button of dust indicator (1).
The yellow piston returns.
REMARK
• Immediately after a new element has been installed,
the yellow piston of the dust indicator may go to the
position between 3.7 to 5.0 kPa {0.04 to 0.05 kg/cm
2
,
0.57 to 0.71 PSI}, but this does not indicate any ab-
normality.
• For the machines installed with a pre-cleaner of large
intake
resistance or a rain cap, immediately after a
new element has been installed, the yellow piston of
the dust indicator may go to the position between 5.0
to 6.2 kPa {0.05 to 0.06 kg/cm
2
, 0.71 to 0.85 PSI}, but
this does not indicate any abnormality.
10.
Close the engine side cover on the left side of the machine.
MAINTENANCE MAINTENANCE PROCEDURE
4-19
