EXPLANATION OF COMPONENTS
The following is an explanation of devices necessary to operate the machine.
T
o perform suitable operations correctly and safely, it is important to completely understand methods of operat-
ing the equipment, and the meanings of the displays.

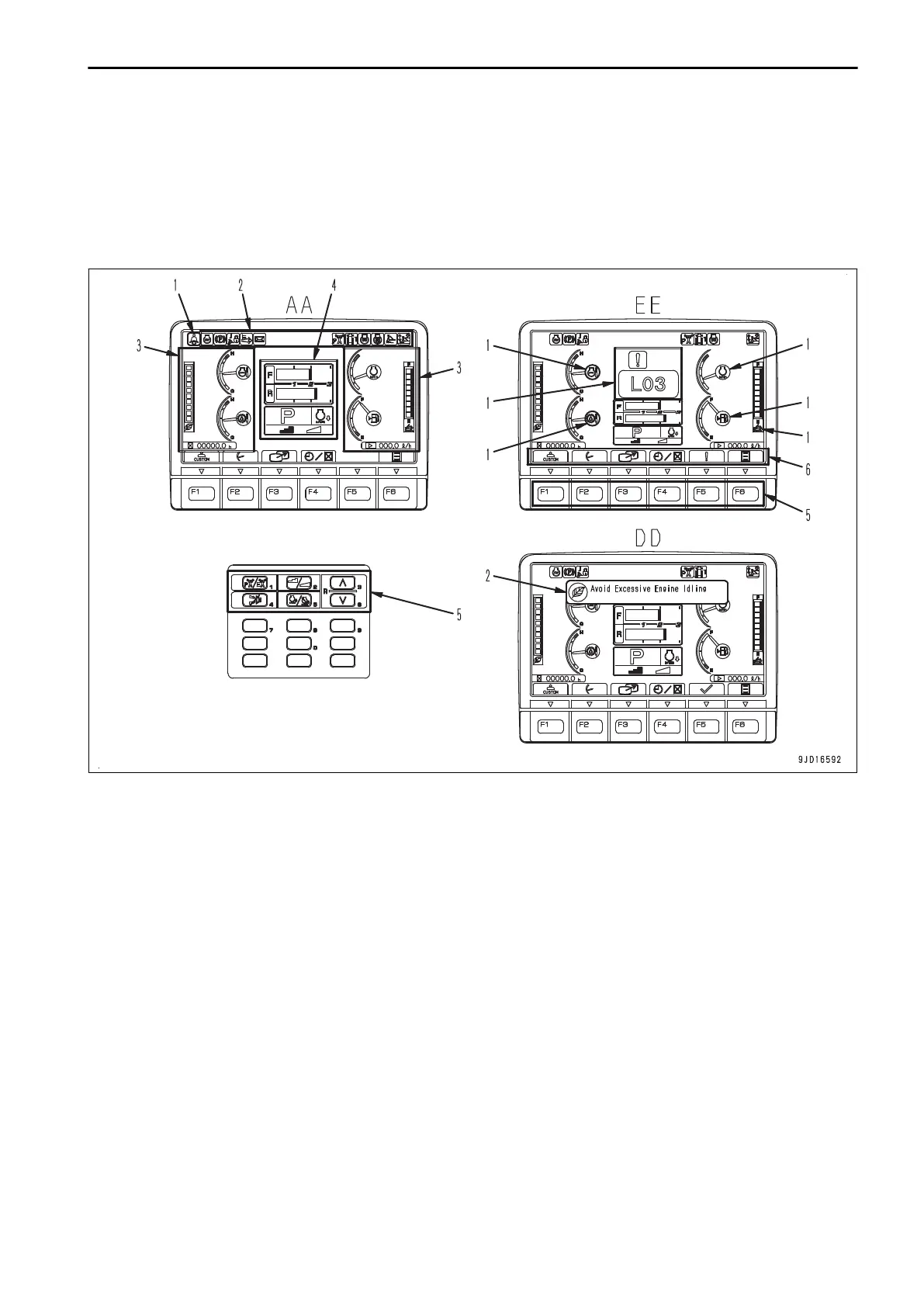

EXPLANATION OF MACHINE MONITOR EQUIPMENT
AA: Standard screen, EE: Warning or Error screen, DD: Guidance screen
(1) Warning display
(2) Pilot display
(3) Meter display
(4) Speed range display
(5) Monitor switch area
(6) Guidance icon display
REMARK
• If environmental temperature of the machine monitor is high, brightness may be automatically reduced to
protect the liquid crystal.
• Intensity or color of the objects may change because of the automatic adjustment function of the camera.
OPERATION EXPLANATION OF COMPONENTS
3-5
