(15) Komatsu Closed Crankcase Ventilation (hereafter
KCCV) ventilator
(16) DEF injector
(17) DEF pump
(18) DEF tank
(19) System operating lamp
(20) Battery disconnect switch

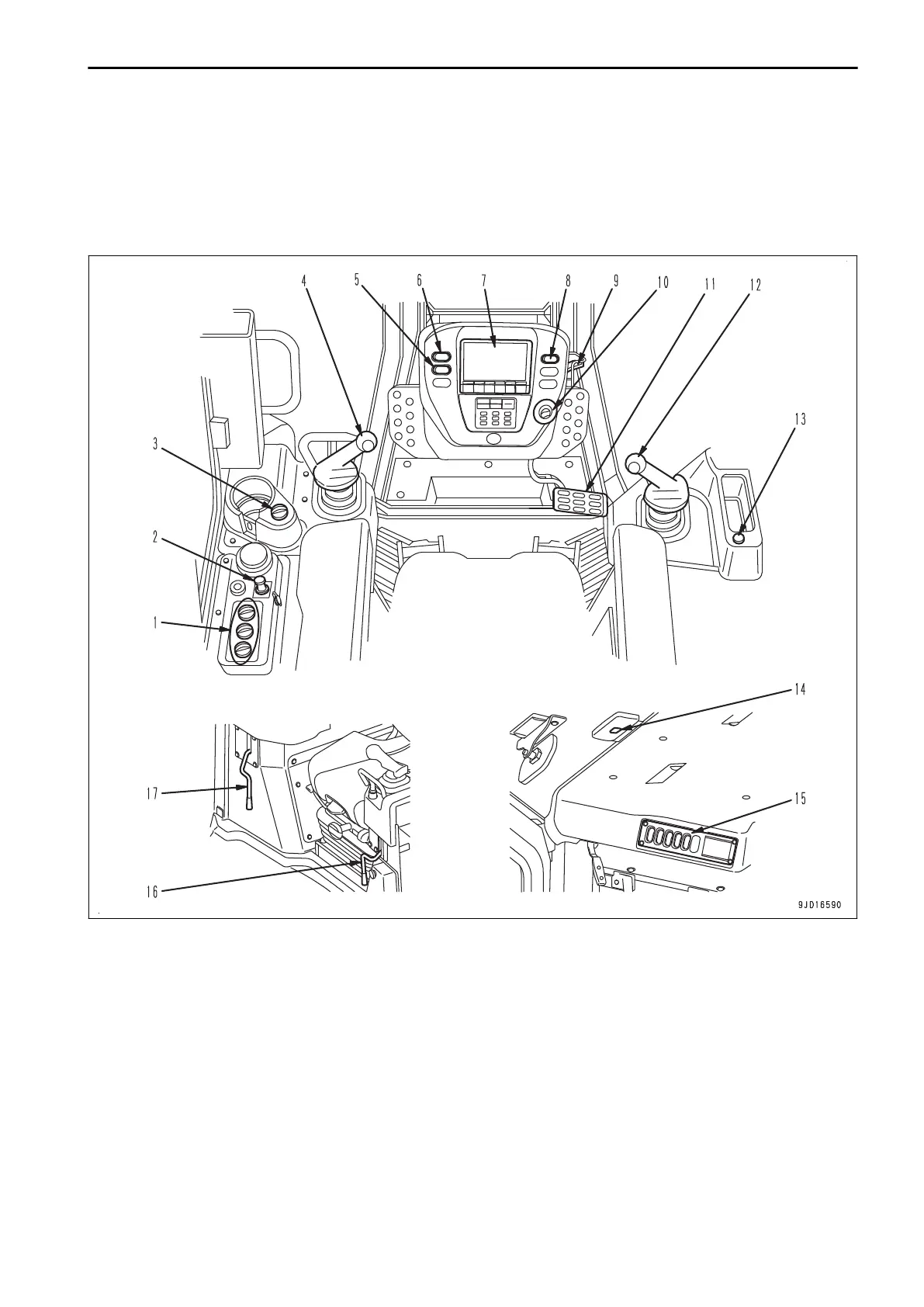

CONTROLS AND GAUGES NAMES
(1) Air conditioner switch
(2) Cigarette lighter
(3) Fuel control dial
(4) Joystick (steering, directional and gear shift lever)
(5) Rear lamp switch
(6) Headlamp switch
(7) Machine monitor
(8) Foot heater switch
(9) Engine shutdown secondary switch
(10) Starting switch
(1
1) Decelerator/brake pedal
(12) Blade control lever
(13) Horn switch
(14) Room lamp switch
(15) Wiper switch
(16) Parking brake lever
(17) Work equipment lock lever
OPERATION GENERAL VIEW
3-3
