2.

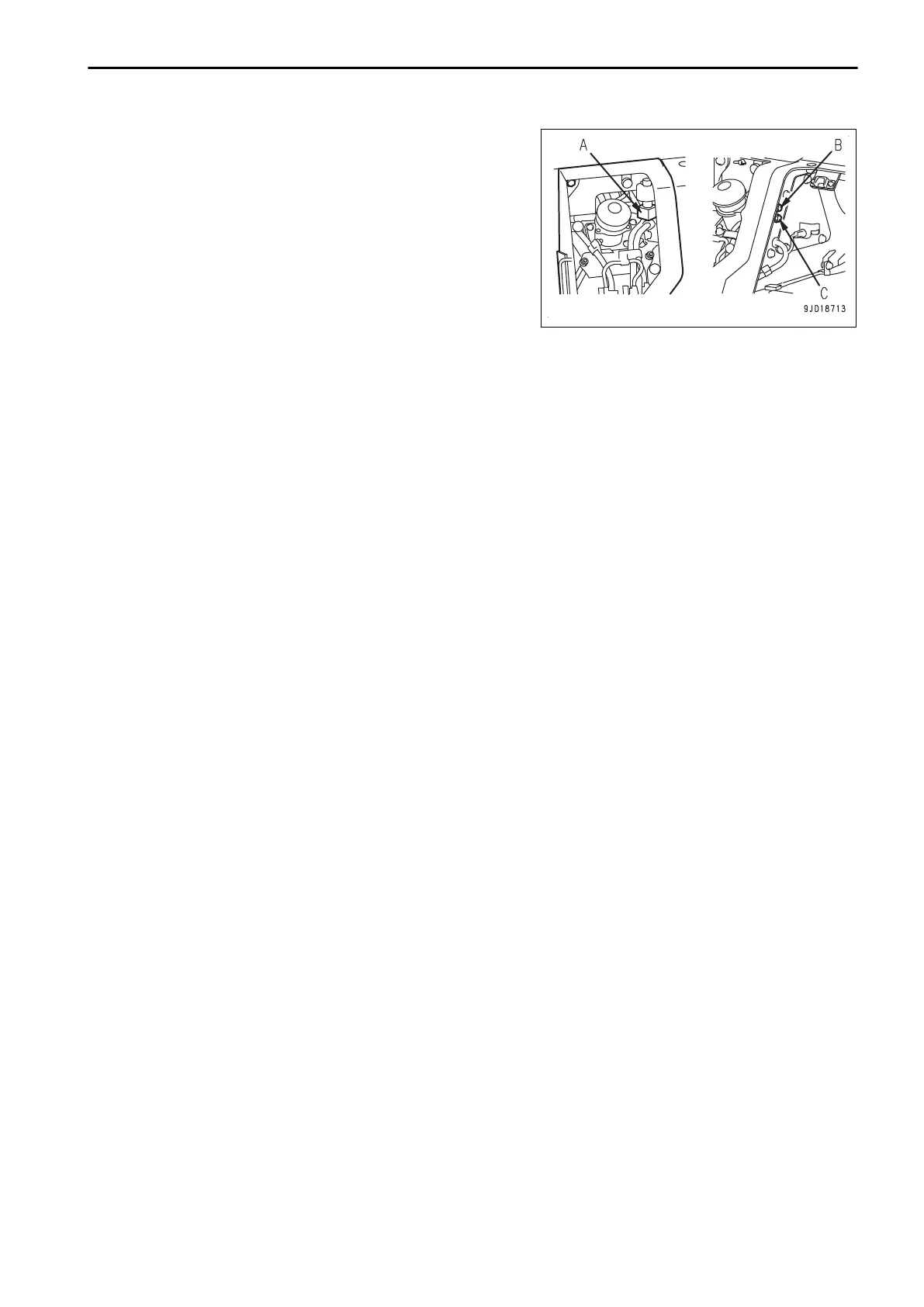

Remove
mounting bolts (B), loosen (C), and change the
angle of breather bracket (A).
3.
Remove nut (2) of breather assembly (1).
4.
Remove cover (3).
5.
Replace breather element (4) with a new one.
6.
Install cover (3) and nut (2).
In order not to damage the threaded portion of nut, tighten
nut (2) by hand until it is seated. Then tighten it 15 to 30 °
by using a tool.
7.
Install mounting bolts (B) and (C).
MAINTENANCE MAINTENANCE PROCEDURE
4-63
