OPERATION OPERATION
3-89
ADJUST AMOUNT OF TILT POWER TILT
(Angledozers only)
WARNING
When adjusting the amount of tilt, it is dangerous if the work equipment is moved by mistake. Set the
work equipment in a safe condition, then stop the engine and lock the work equipment securely with the
safety lock lever.
NOTICE
The maximum amount of tilt is 400 mm (15.8 in). Be sure
not to exceed 400 mm (15.8 in).

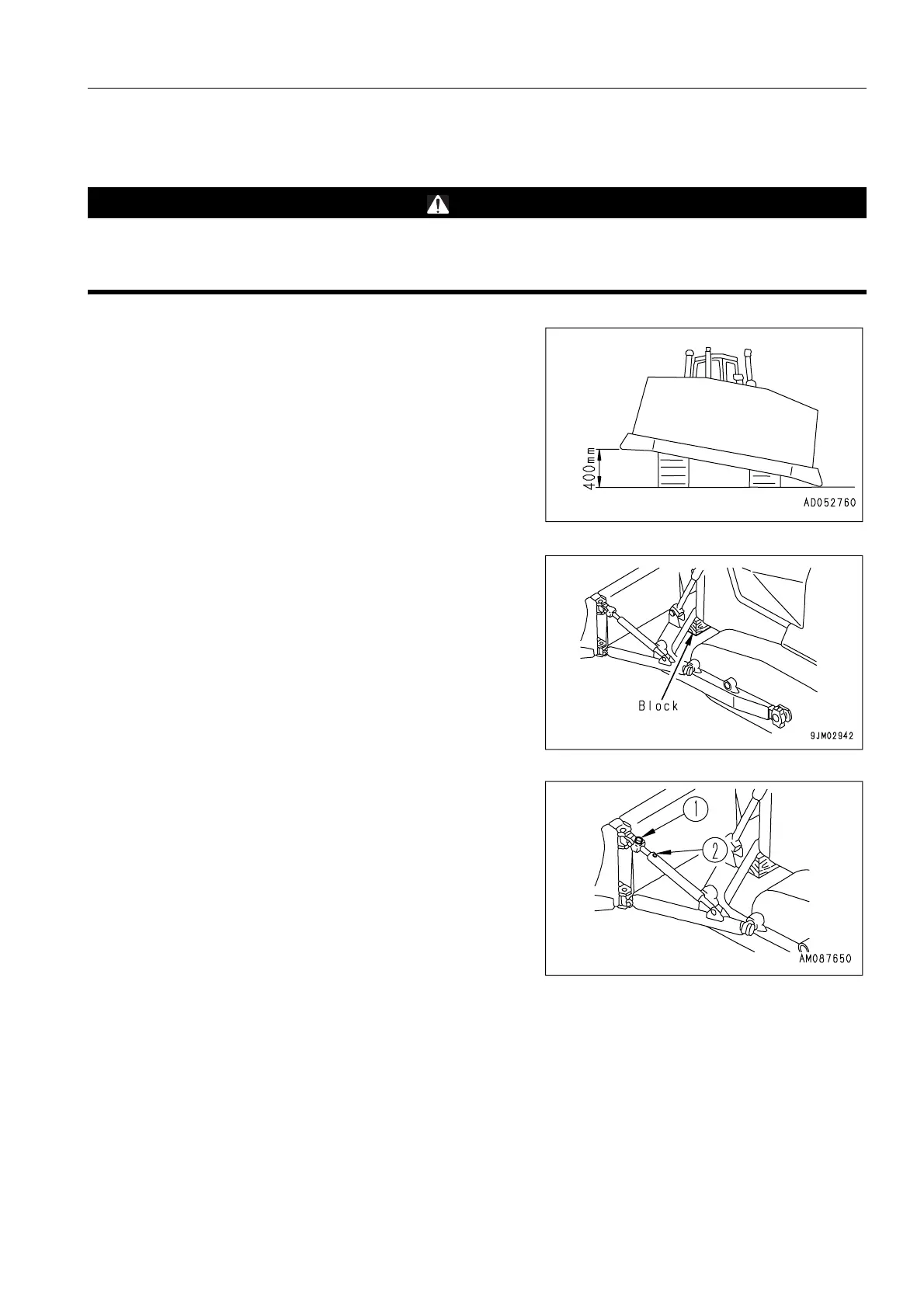

1. Raise the blade 400 to 500 mm (15.8 to 19.7 in) above
the ground, then put blocks under the frame so that the
blade does not come down.
2. Loosen the bolt (1) of the brace, insert a suitable bar into
hole (2) of the brace, and turn it.
REMARK
When turning the brace with bar, keep the blade above the
ground.
Right tilt: Make right side shorter, left side longer
Left tilt: Make left side shorter, right side longer
3. Tighten set bolt (1).
