TRANSPORTATION OPERATION
3-100

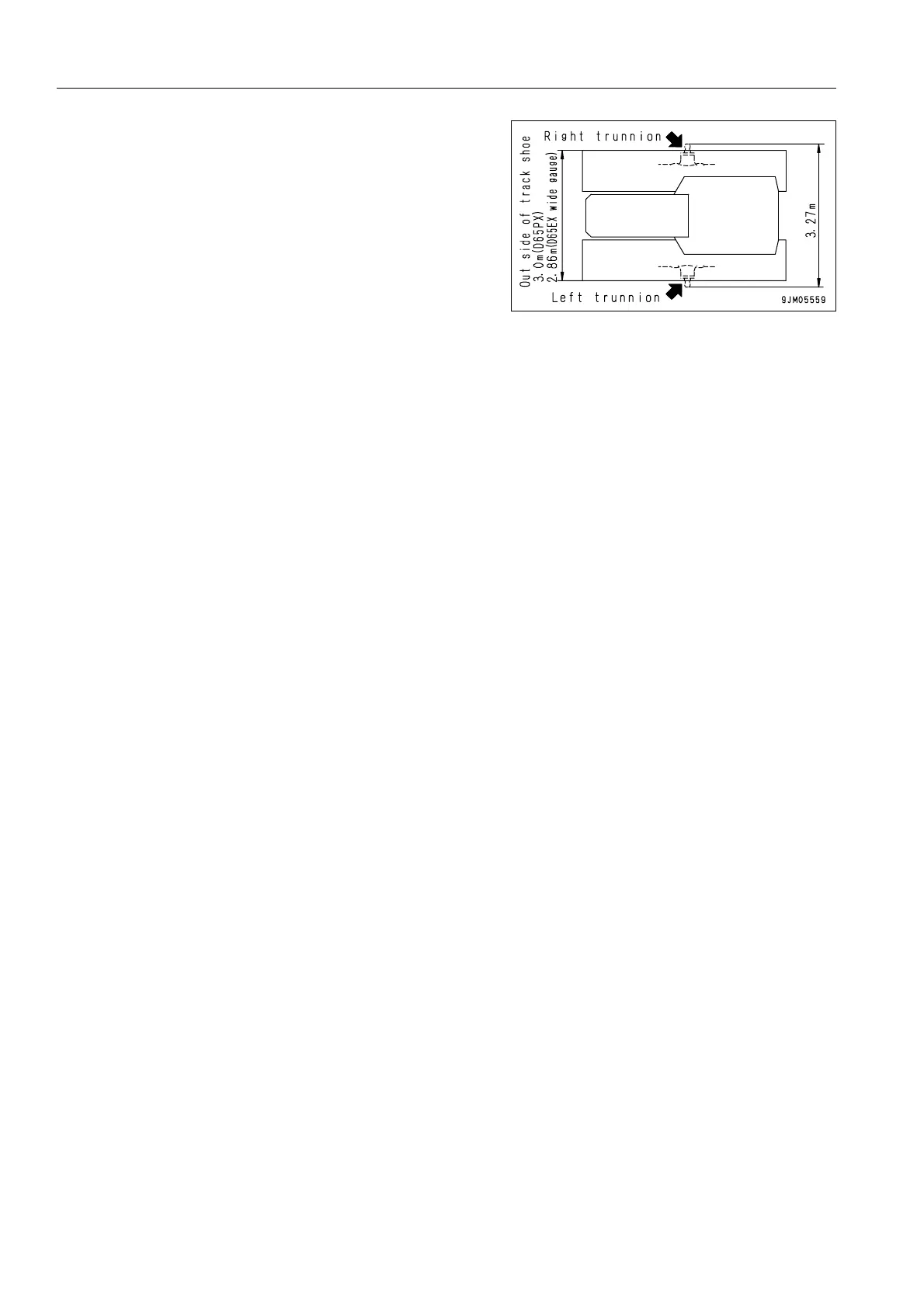

3. Remove the left and right trunnions. (D65PX and D65EX
wide gauge specified)
REMARK
● In the case of D65PX, remove the left and right trunnions.
● In the case of D65EX, the width including the left and right
trunnions is within 3.0 m (118.1 in), so there is no need to
remove them.
● In the case of D65EX wide gauge specified, remove the left
and right trunnions.
● In the case of D65EX with 3 m (118.1 in) semi-U blade, the
blade width is within 3.0 m (118.2 in), so there is no need
to remove the work equipment.
4. Tie the tilt hose with a band to prevent it from being dam-
aged.
